- 13 -
9-3. ADC Offset Adjustment
(1) After receiving a signal press the ADJ Key on the SVC
Remote Control repeatedly to acess the Adjustment mode.
(2) Adjustment will set the automatically by pressing the
“8.MST3000-Set” of adjustment item.
(3) After finishing the adjustment, output the “MST3000-OK”
OSD on the screen.
10. White Balance Adjustment
10-1. Preparation for Adjustment
(1) Perform the Screen Voltage Adjustment first.
(2) The White Balance it executes from automatic adjustment
hour Normal image condition.
(3) Start adjustments from initial setting of R.DRIVE=31,
G.DRIVE=31, B.DRIVE=31, R.CUT=31, G.CUT=31,
B.CUT=31.
(4) For manual adjustment, refer to the following procedure.
10-2. Adjustment
(1) Receive the White Pattern.
(2) Set screen size to wide mode(16:9).
(3) Select EZ Adjust 2.White Balance by pressing IN-START
Key on the SVC Remote control.
(4) Adjustment
1) Using the SVC Remote control, set the DCOL value of
CXA2150 to the “0”.
2) Set an image with Normal image.
3) Adjust R-DRIVE and B-DRIVE data so the color
coordinates in High light are the values in Table below.
(Bright Level : 35fl)
4) Adjust “CONTRAST” and “BRIGHT” so the bright level is
4.5±0.5F.L.
5) Adjust R-CUT and B-CUT data so the color coordinates
in Low light are the values in Table below.
6) Repeat 2)~ 5) until the color coordinates in High and
Low color satisfies the Table.
7) Check the adjusted color coordinates with the white
balance meter.
High Light : x=287
!
3, y=293
!
3
Low Light : x=287
!
3, y=293
!
3
Color temperature : 9,000K!
1000(-5MPCD)
11. Sub Bright, TINT, COLOR
Adjustment
11-1. Sub Bright Adjustment

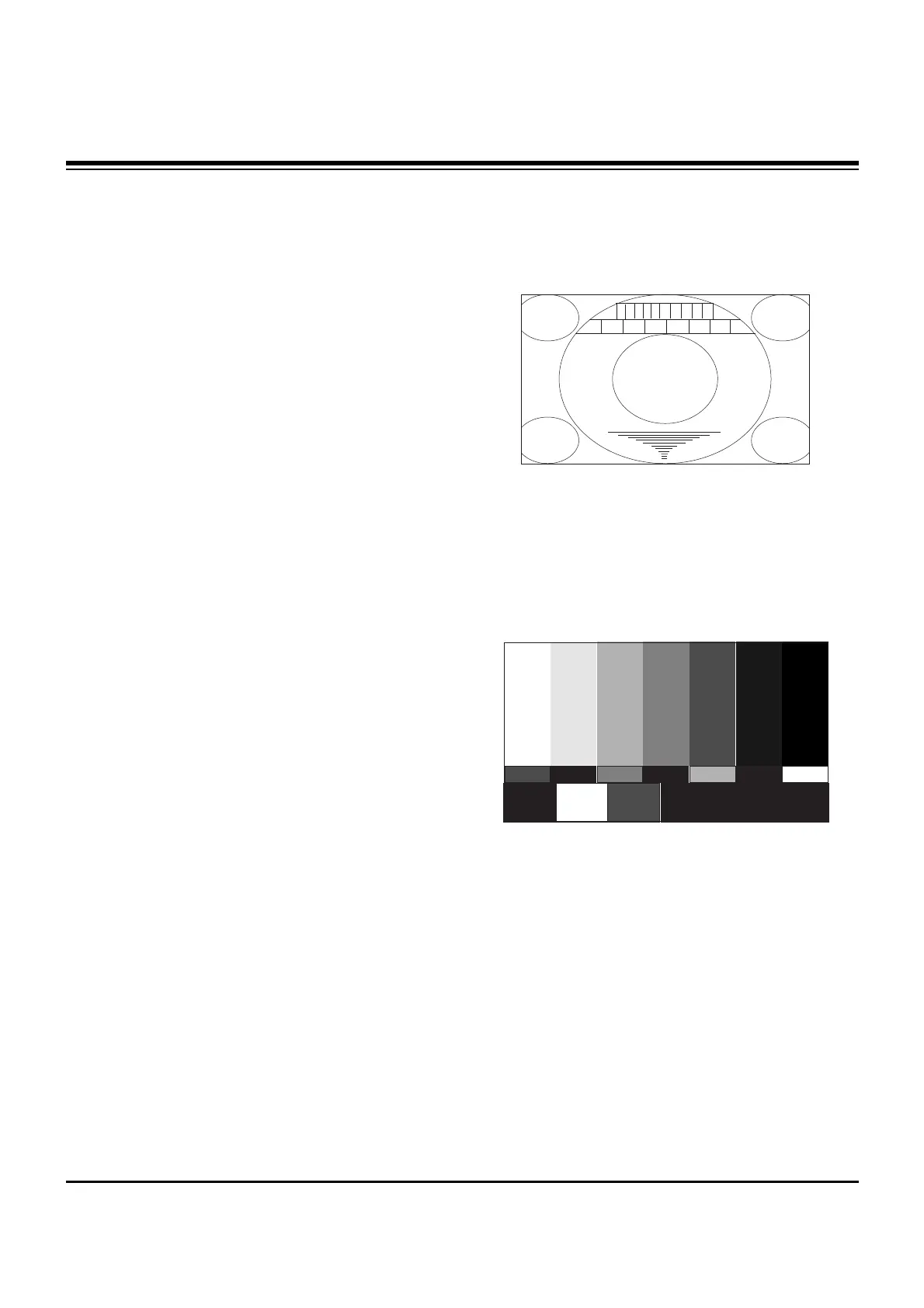

(1) Select EZ Adjust 5. Sub Bright pressing ADJ key on the
SVC Remote control.
(2) Adjust to the point where “2” is not visible.
(3) Completed the adjustment, exit the adjustment mode using
ADJ Key.
11-2. Sub COLOR, TINT Adjustment
(1) Select EZ Adjust 6. Sub Tint, Color pressing ADJ key on
the SVC Remote control.
(2) Select SUB COLOR and adjust the 1 and 1’ portion not to
be classified.
(3) Select SUB TINT and adjust the 3 and 3’ portion not to be
classified.
(4) Completed the adjustment, exit the adjustment mode using
ADJ Key.
ADJUSTMENT INSTRUCTIONS
