- 13 -

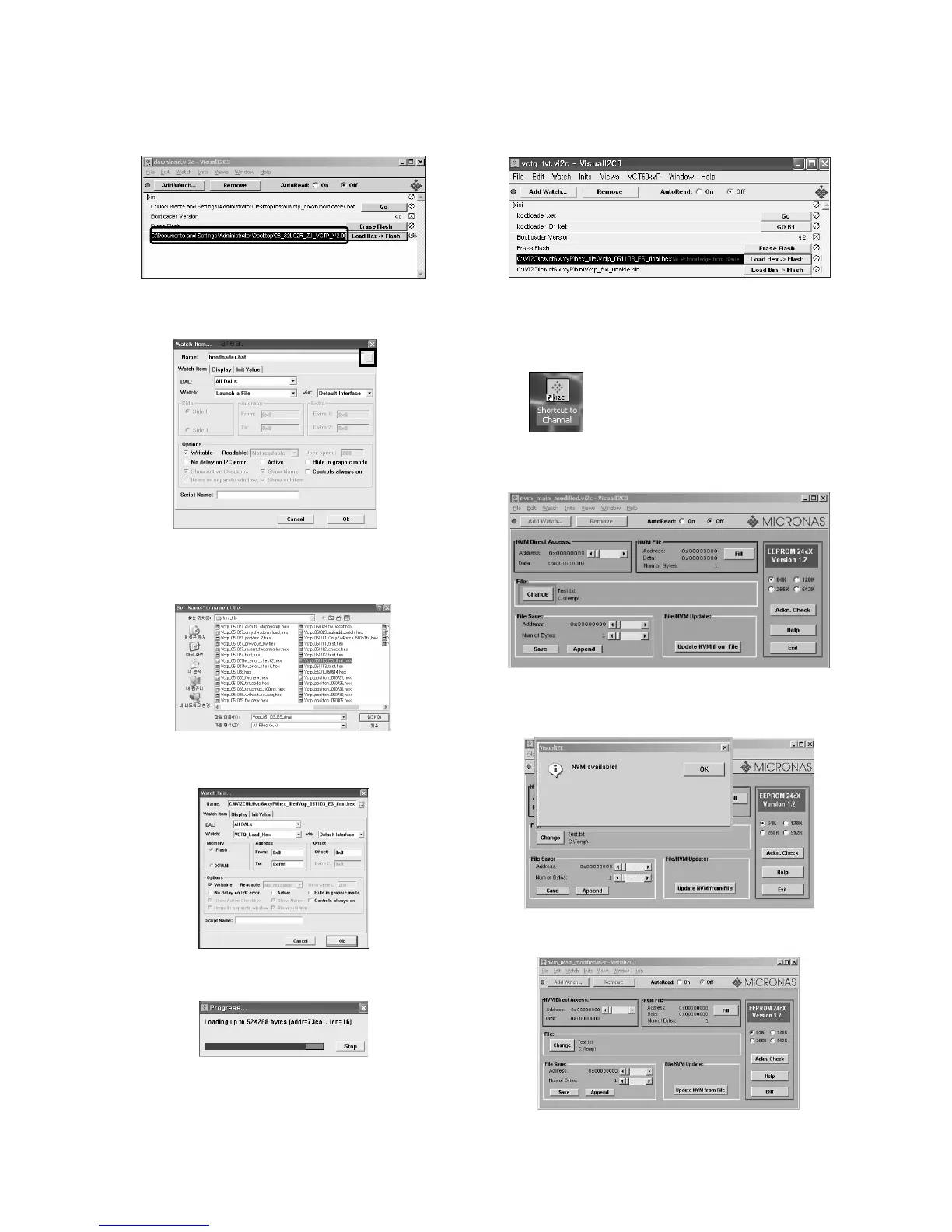

7) Double click the download file low then, "edit" window
will be opened.
8) Chick the choice button I n the "edit window", then "file
choice window’ will be opened
9) Choose the Hex file in folder and execute downloading
with click "open button"
10) Click OK button at the "edit window"
11) Downloading
12) If download is failed, for example "No acknowledge
from slave", execute download again from (1).
4.3. Channel memory download
(1) Connect the download jig to D-sub jack.
(2) Execute ‘Channel.vi2c’ program in PC, then a main
window will be opened.
(3) Push the button change and select the Channel memory
data.
(4) Check the communication is OK or not.
=> Push the Read area (Ackn. Check) and check Cyan area
is OK message.
(5) Push the Update NVM from File
