EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
40

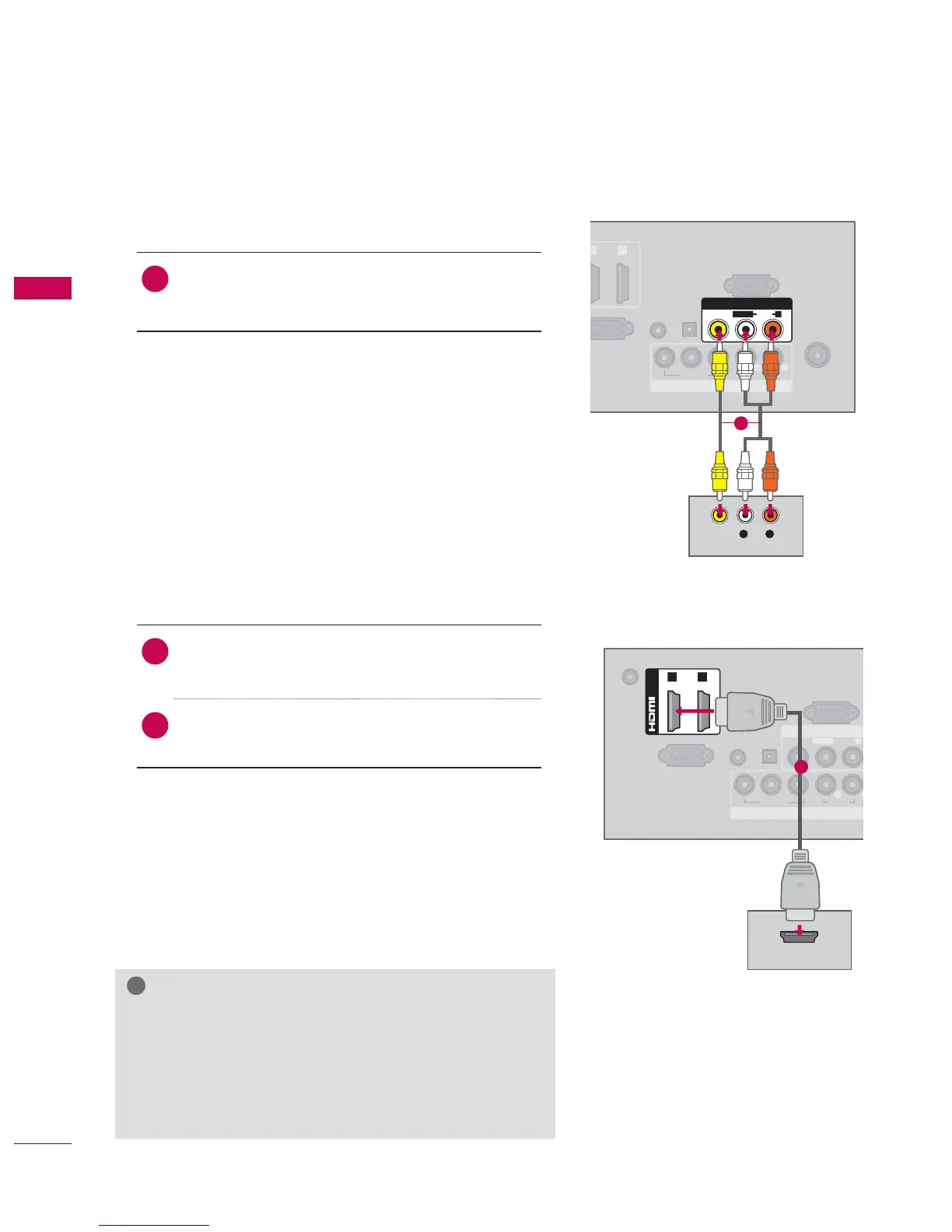

Composite (RCA) Connection
1. How to connect
1
Connect the AUDIO/VIDEO jacks between TV
and DVD. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
2. How to use
ᯫ
Turn on the DVD player, insert a DVD.
ᯫ
Select the AV or AV1/2* input source on the TV
using the INPUT button on the remote control.
ᯫ
Refer to the DVD player's manual for operating
instructions.
ANTENNA/
CABLE IN
B IN (PC)
AUDIO IN
RGB/DVI
V )
OPTICAL
D G TAL
AUDIO OUT
COMP NEN N
RS-232C IN
(
CONTROL&SERVICE)
1 2
VIDEO
UDI
YP
B
P
R
L R
AV IN
VIDEO
AUDIO
L(MONO)
R
L R
VIDEO
AUDIO
DC-IN
RGB IN (PC)
AUDIO N
RGB/DVI
OPT CAL
DIGITAL
AUD O OUT
COMPONENT IN
AV IN
RS-232C IN
(
CONTROL&SERVICE)
VID O
AUD O
L(MONO)
R
VIDEO
AUDIO
YP
B
P
R
L
(DVI)
/DVI IN
1 2
HDMI OUTPUT
1
1
HDMI Connection
1. How to connect
1
Connect the HDMI output of the DVD to the
HDMI/DVI IN 1, 2 or 3* jack on the TV.
2
No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
ᯫ
Select the HDMI1, HDMI2, or HDMI3* input source
on the TV using the INPUT button on the remote
contr
ol.
ᯫ
Refer to the DVD player's manual for operating
instructions.
!
NOTE
Check HDMI cable over version 1.3.
If the HDMI cables don’t support HDMI version 1.3, it
can cause flickers or no screen display. In this case use
the latest cables that support HDMI version 1.3.
HDMI Audio Supported Format: Dolby Digital (32 KHz, 44.1
KHz, 48 KHz), Linear PCM (32 KHz, 44.1 KHz, 48 KHz)
* AV2: Except 19/22/26LE5300
* HDMI3: For 26LE5300
