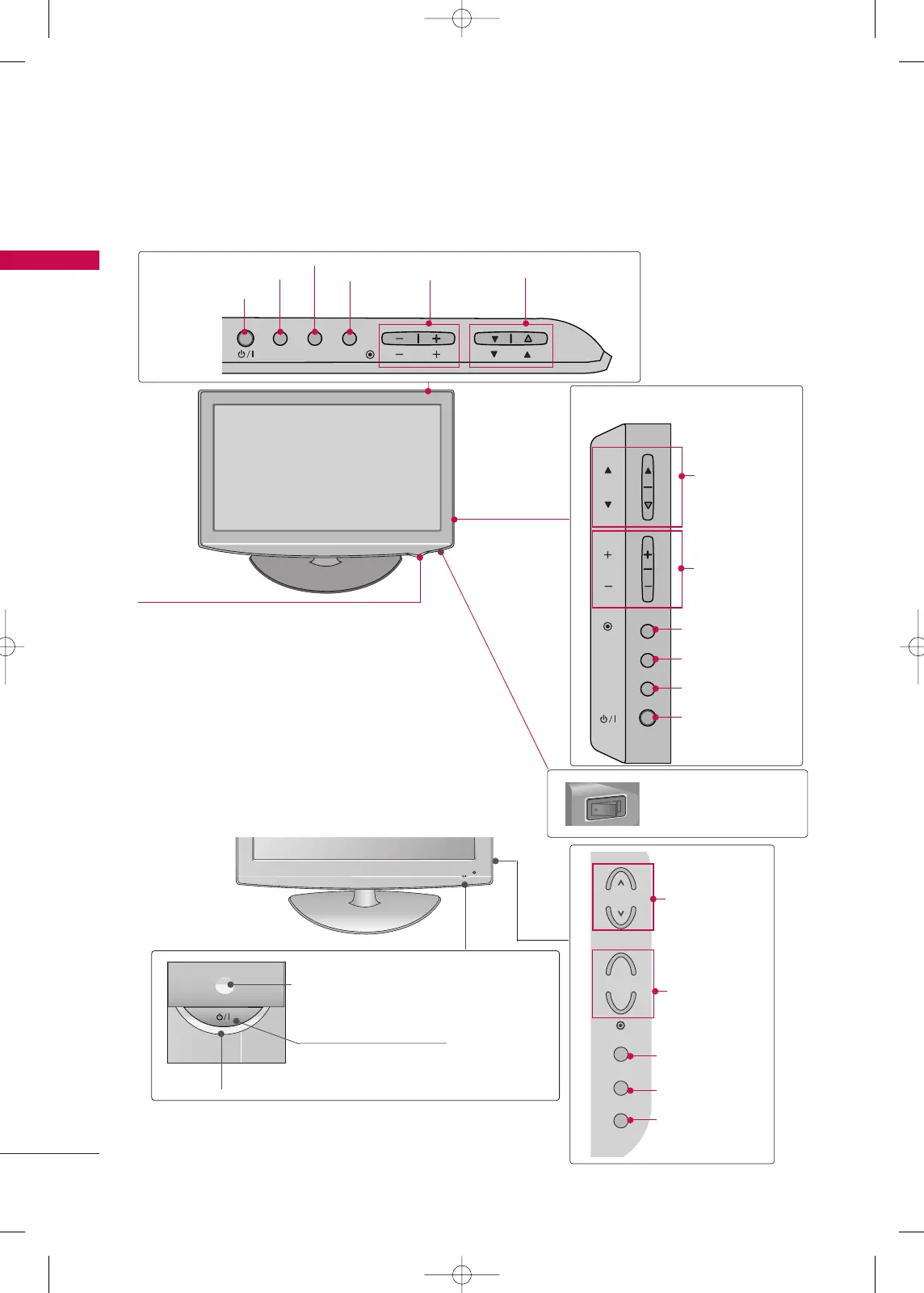

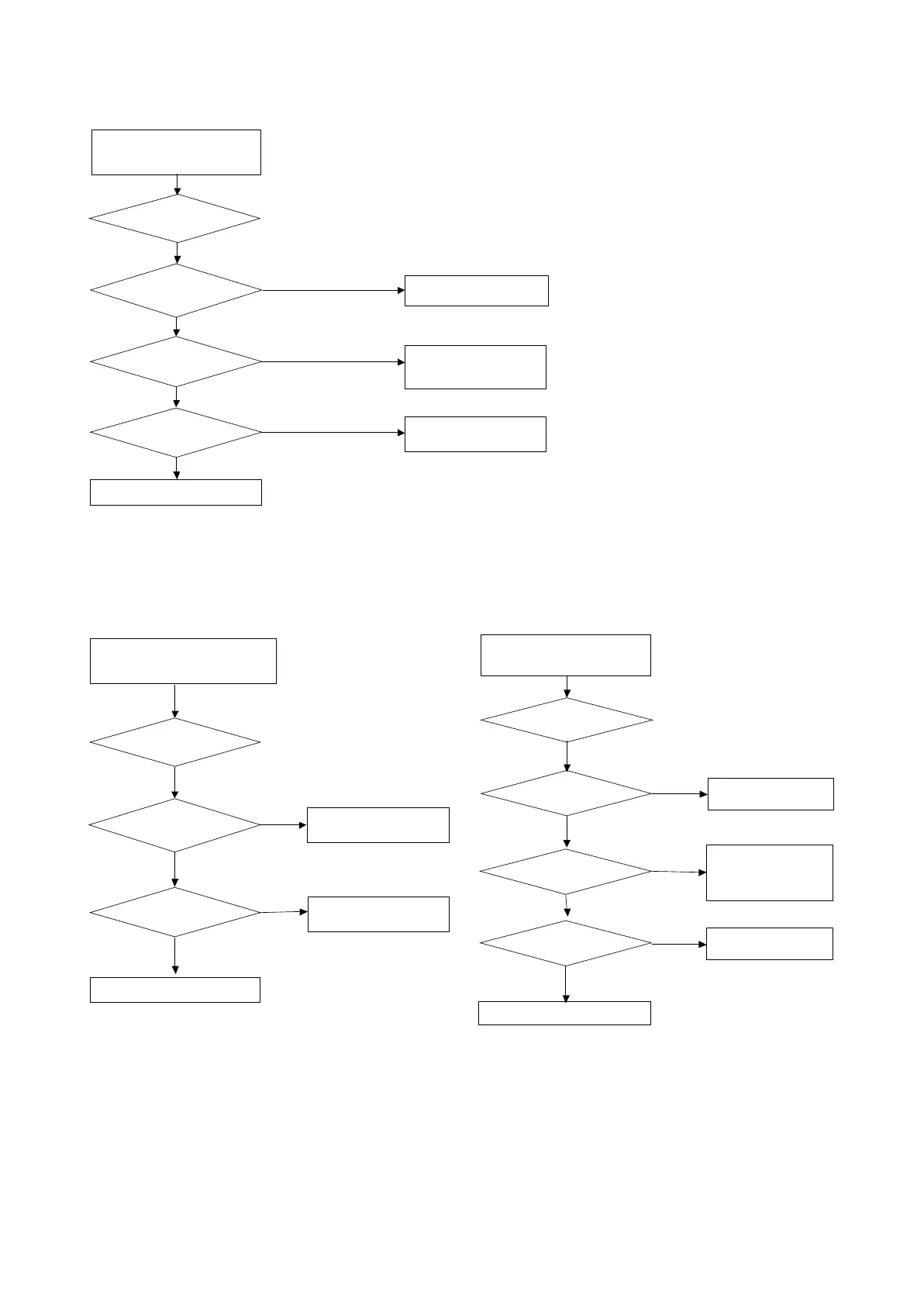

No Raster on PC Signal
Check Input source Cable
and Jack.
Pass
Re-soldering or
Change the defect part.
Pass
Check the Input/Output
Of IC201.
Fail
Re-soldering or
Change the defect part,
Check RGB EDID Data.
Repeat [A], & [B] Process
Pass
Check the Input/Output
Of JK202.
Fail
Pass
Check the Input/Output
of IC800
Fail
Re-soldering or
Change the defect part.
Pass
No Raster on COMMPONENT Signal
Check Input source
Cable and Jack.
Pass
Re-soldering or
Change the defect part.
Pass
Check the Input/Output
Of IC800.
Fail
Re-soldering or
Change the defect part.
Repeat [A], & [B] Process.
Check the Input/Output
of JK101.
Fail
Pass
No Raster on HDMI Signal
Check Input source
Cable And Jack.
Pass
Check
the Input/Output of JK301,
JK302, JK303.
Fail
Re-soldering or
Change the defect part.
Pass
Pass
Check
the Input/OutputOf IC300,
IC301, JK302.
Fail
Re-soldering or
Change the defect part.
Check HDMI EDID Data.
Re-download HDCP.
Pass
Pass
Check the Input/Output
Of IC800.
Fail
Re-soldering or
Change the defect part.
Repeat [A], & [B] Process.
