LG 32LDD User Manual

Installation
- This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.

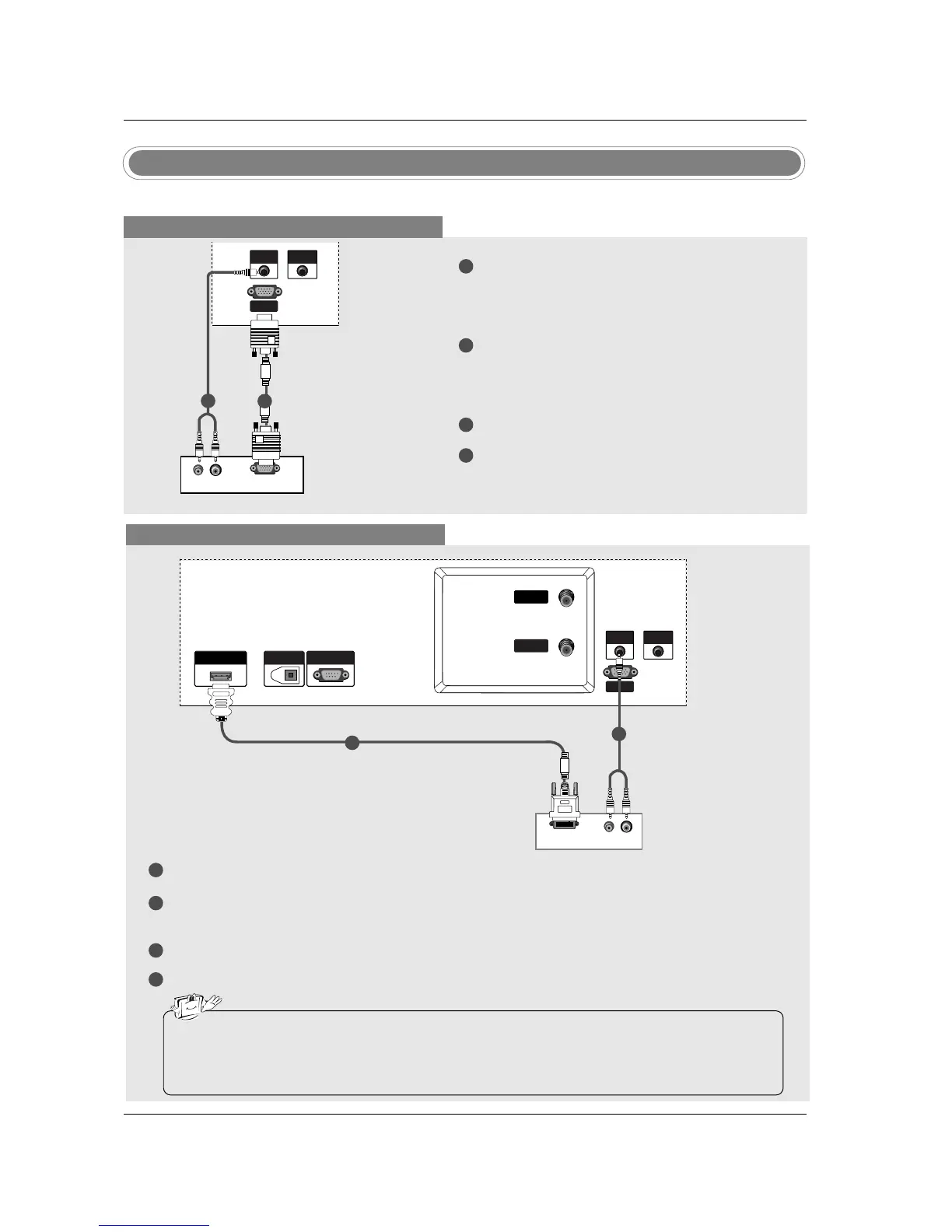

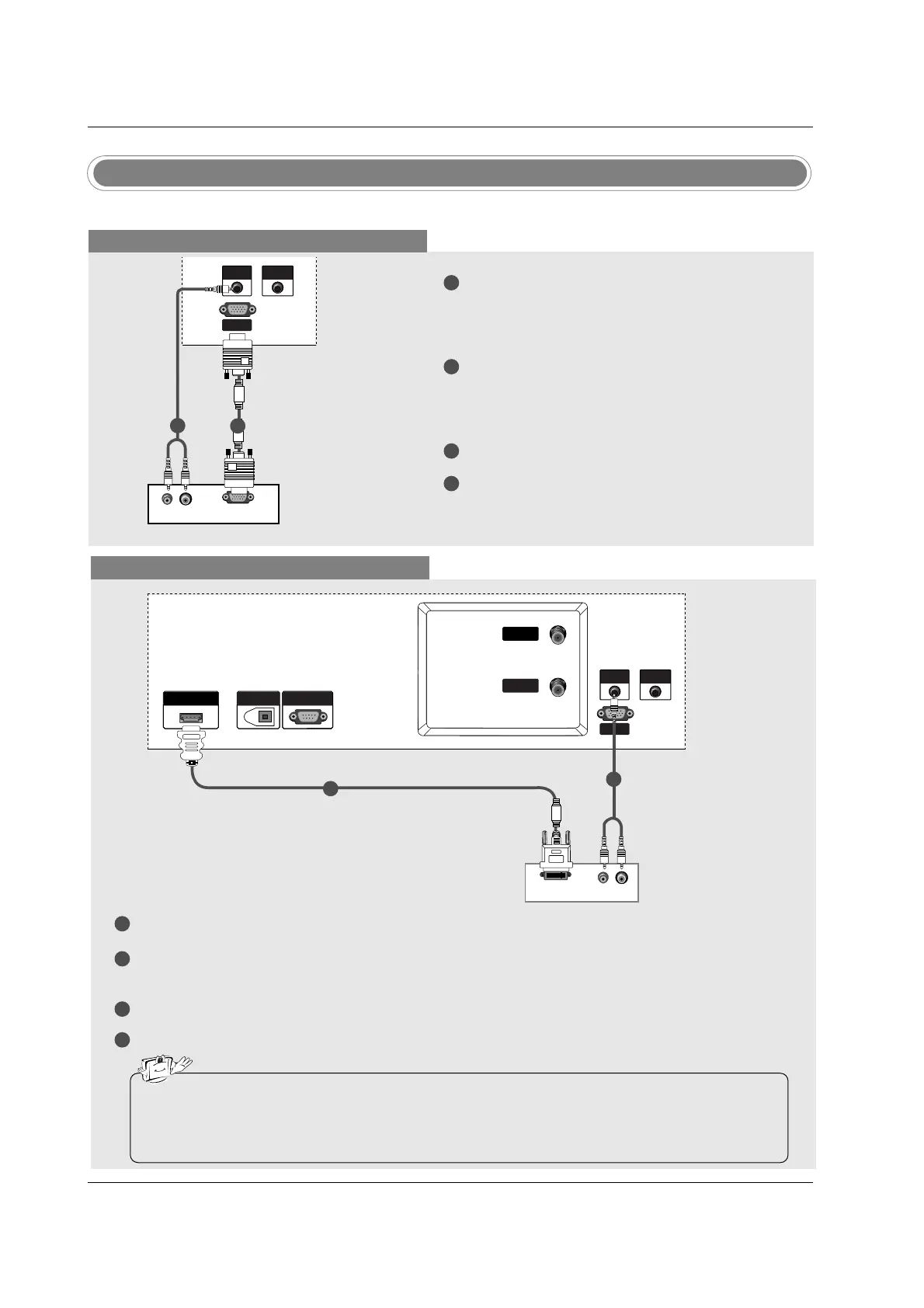

PC Setup
When connecting with a D-sub 15 pin cable
1
2
3
4
Connect the RGB output of the PC to the RGB IN
(PC/DTV) (32/37/42LC2D Model) / RGB
(PC/DTV) (42PC3D/3DV/50PC3D Model) jack on
the set.
Connect the PC audio outputs to the AUDIO IN
(RGB/DVI) (32/37/42LC2D Model) /AUDIO
(RGB/DVI) (42PC3D/3DV/50PC3D Model) jack on
the set.
Turn on the PC and the set.
Select RGB-PC input source with using the
TV/VIDEO button on the remote control.
(R) AUDIO (L)
RGB-PC OUTPUT
REMOTE
CONTROL
RGB IN
(PC
/DTV)
AUDIO INAUDIO IN
(RGB/DVI)
1
2
PC
When connecting with a HDMI to DVI cable
1
2
3
4
Connect the DVI output of the PC to the HDMI/DVI IN jack on the set.
Connect the audio outputs of the PC to the AUDIO IN (RGB/DVI) (32/37/42LC2D Model)
/AUDIO (RGB/DVI) (42PC3D/3DV/50PC3D Model) jack on the set.
Turn on the PC and the set.
Select HDMI/DVI input source with using the TV/VIDEO button on the remote control.
(R) AUDIO (L)
DVI-PC OUTPUT
HDMI/DVI IN
DIGITAL AUDIO OUT
OPTICAL
RS-232C INRS-232C IN
(CONTROL&SERVICE)
REMOTE
CONTROL
RGB IN
(PC
/DTV)
AUDIO INAUDIO IN
(RGB/DVI)
ANTENNA
IN
CABLE
IN
PC
• If the PC has a DVI output and no HDMI output, a separated audio connection is necessary.
• If the PC does not support Auto DVI, you need to set the output resolution appropriately. To get the
best picture quality, adjust the output resolution of PC graphics card's output resolution to
1024x768, 60Hz.
1
2
