- 12 -

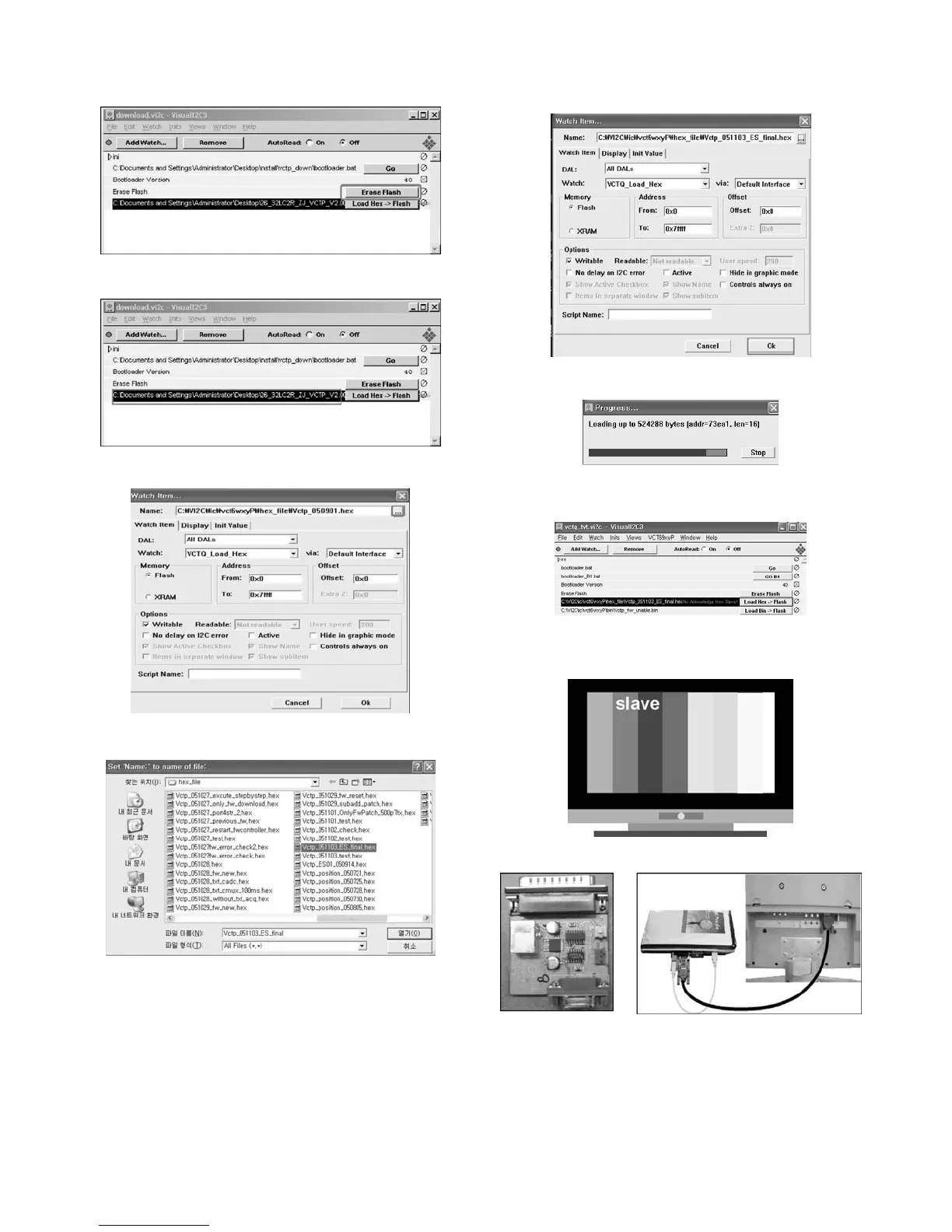

(6)Click the "Erase Flash" button
(7) Double click the download file low then, "edit"
window will be opened
(8) Chick the choice button I n the "edit window", then
"file choice window’ will be opened
(9) Choose the Hex file in folder and execute
downloading with click "open button"
(10) Click OK button at the "edit window"
(11) Under Downloading progress
(12) If download is failed, for example "No acknowledge
from slave", execute download again from (1)
4.1.2.2 Download method 3 (SET)
(1) Push the "Tilt" button in an Adjust Remocon Then
the LCD TV will change a "slave mode"
(2) Connect Zig to TV using a D-sub cable
To Next Page
