LG 32LF565B - Page 66

Standard Repair Process Detail Technical Manual
Checking method when power is ON
B. Power error _No power
A13
Established
date
Revised
date
Error
symptom
Content
LCD TV
2012. 01 .14

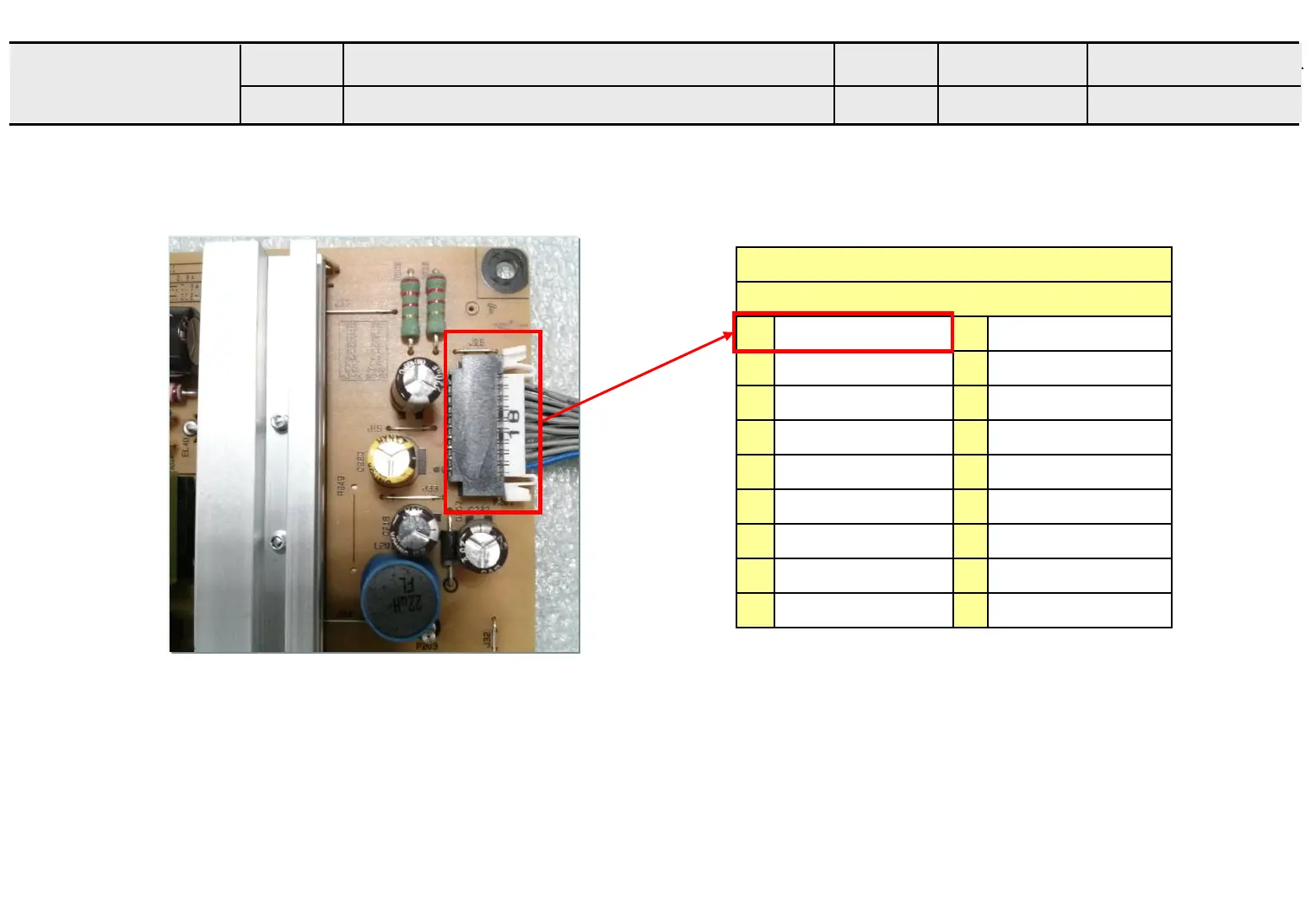

18 Pin (Power Board ↔ Main Board)
SMAW200-H18S5
1
Power on
2
DRV ON
3
3.5V
4
PDIM#1
5
3.5V
6
3.5V
7
GND
8
PDIM#2
9
24V
10
24V
11
GND
12
GND
13 12V 14
12V
15 12V 16
NC
17 GND 18
GND
Check “power on(Pin 1)” pin is high(about 3.3V)
