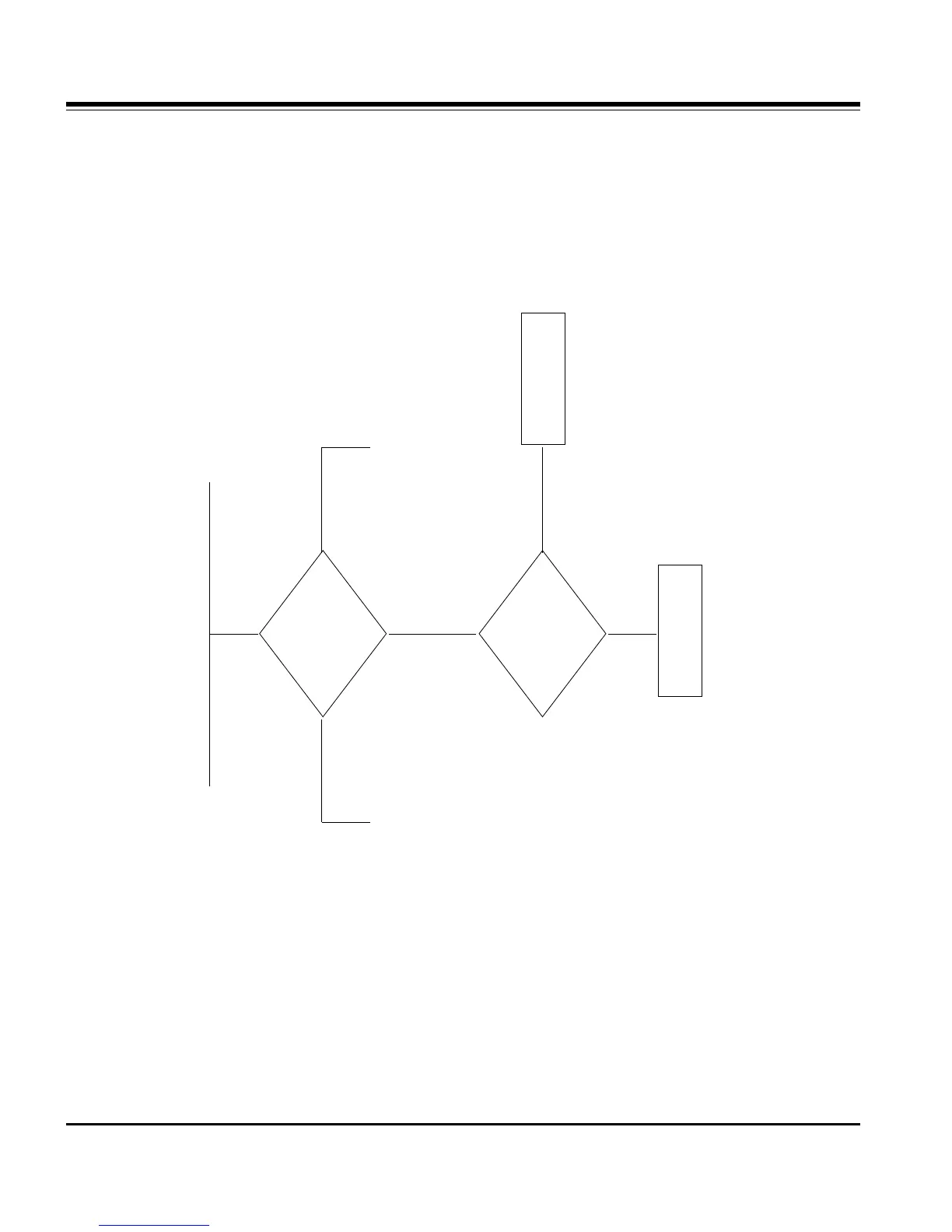

- 19 -
Check the
24 bit RGB signal
output of ADC(X98014)
across RA500-501
Check the
3.3V supply volt
across L503, L504
And clock frequency
at pin 39,40
of ADC
From sheet 19
From sheet 16
To sheet 21
(DVI PC / X-Studio)
To sheet 21
(component)
Power Error
Replace ADC
PASS
PASS
PASS
FAIL
FAIL
