LG 37LC2R Series User Manual

9
INTRODUCTION
CONNECTION OPTION
This is the back panel of models
3377//4422LLCC22RR
*,
3377//4422LLCC2255RR
*,
3377//4422LLCC33RR
*
TVs.

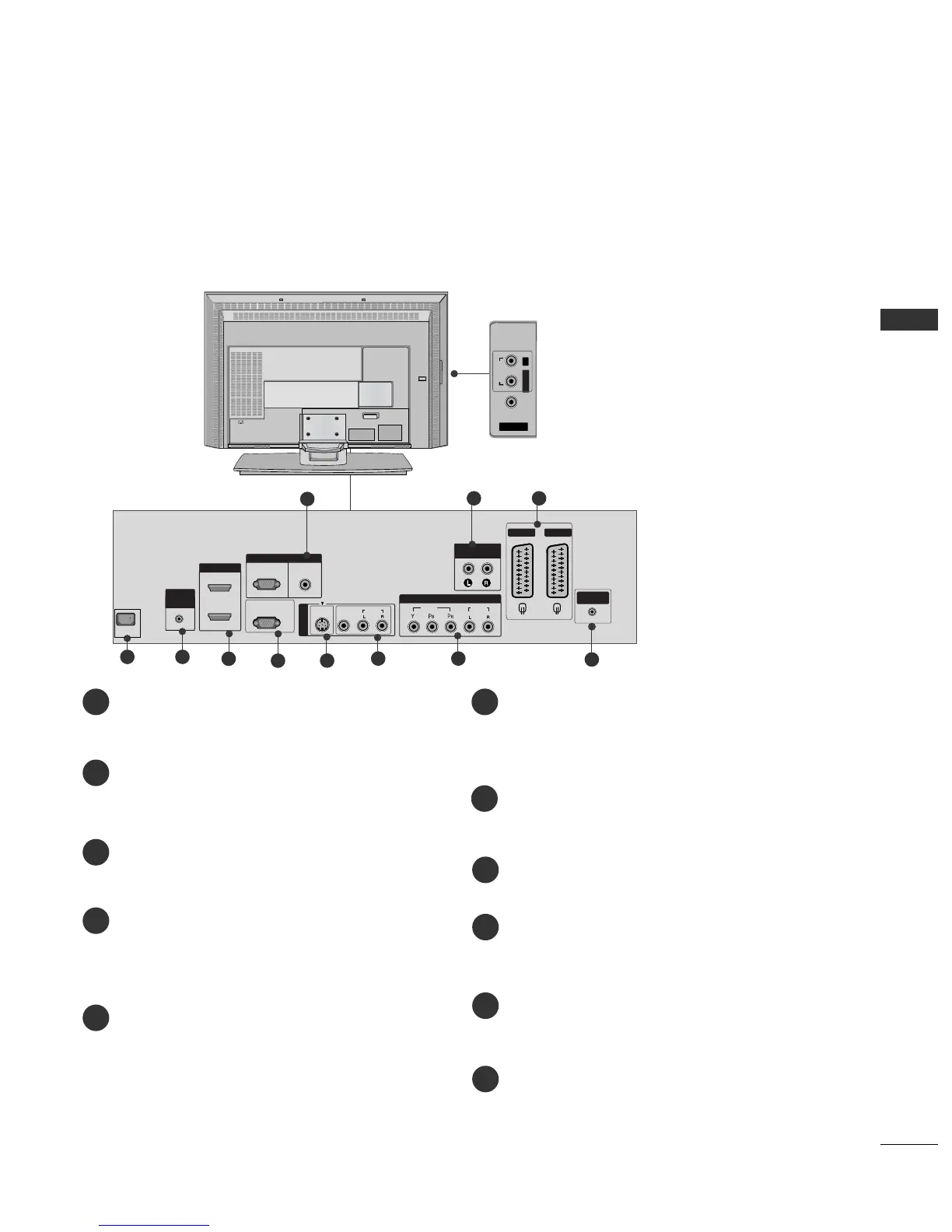

Back Connection Panel
AUDIO Input
Connections are available for listening
stereo sound from an external device.
VIDEO Input
Connects the video signal from a video
device.
AC IN
AV IN 4
AUDIO
AUDIO
VIDEO
VIDEO
L/
MONO
MONO
R
AC IN
AV 1 AV 2
COMPONENT
COMPONENT IN
AV IN 3
MONO
( )
RGB
(PC/DTV)
RS-232C IN
(CONTROL & SERVICE)
VARIABLE
AUDIO OUT
ANTENNA
IN
HDMI IN
HDMI IN
REMOTE
COMTROL
IN
1(DVI)
1(DVI)
RGB IN
RGB IN
AUDIO
(RGB/DVI)
VIDEO
S-VIDEO
2
AUDIO
AUDIO
VIDEO
RGB/Audio Input
Connect the monitor output from a PC/DTV
to the appropriate input port.
Variable Audio Output
Connect an external amplifier or add a sub-
woofer to your surround sound system.
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an
external device to these jacks.
Power Cord Socket
This TV operates on an AC power. The voltage
is indicated on the Specifications page. Never
attempt to operate the TV on DC power.
Remote Control Port
HDMI Input
Connect a HDMI signal to HDMI IN.
Connect DVI(VIDEO) signal to HDMI/DVI
port with DVI to HDMI cable.
RS-232C Input
(CONTROL&SERVICE)Port
Connect the serial port of the control devices
to the RS-232C jack.
S-Video Input
Connect S-Video out from an S-VIDEO device.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
Component Input
Connect a component video/audio device to
these jacks.
Antenna Input
10
9
7
8
32
1
6
5
11
1
2
3
4
5
6
7
8
9
10
11
4
