INTRODUCTION
RGB/Audio Input
Connect the monitor output from a PC/DTV to
the appropriate input port.
Variable Audio Output
Connect an external amplifier or add a sub-
woofer to your surround sound system.
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an
external device to these jacks.
Power Cord Socket
This TV operates on an AC power. The voltage
is indicated on the Specifications page. Never
attempt to operate the TV on DC power.
Remote Control Port
HDMI Input
Connect a HDMI signal to HDMI IN.
Connect DVI(VIDEO) signal to HDMI/DVI port
with DVI to HDMI cable.
RS-232C Input
(CONTROL&SERVICE)Port
Connect the serial port of the control devices
to the RS-232C jack.
S-Video Input
Connect S-Video out from an S-VIDEO device.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
Component Input
Connect a component video/audio device to
these jacks.
Antenna Input
1
2
3
4
5
6
7
8
9
10
11
CONNECTION OPTION
S-VIDEO
VIDEO
AUDIO
L/MONO
R
AV IN 4
S-VIDEO
VIDEO
AUDIO
L/MONO
R
AV IN 3
S-VIDEO
VIDEO
AUDIO
L/MONO
R
AV IN 3
REMOTE
CONTROL
IN
(CONTROL & SERVICE)
RS-232C IN
RGB IN
AUDIO
(RGB/DVI)
RGB
(PC/DTV)
S-VIDEO
AV IN 3
R
L
(MONO)
2
1 (DVI)
HDMI IN
AV 1 AV 2
COMPONENT IN
ANTENNA
IN
VARIABLE
AUDIO OUT
AUDIOVIDEO
AV 1 AV 2
ANTENNA
IN
1 (DVI)
2
HDMI IN
COMPONENT IN
AUDIO
VIDEO
RGB IN
AUDIO
(RGB/DVI)
RGB
(PC/DTV)
(CONTROL & SERVICE)
RS-232C IN
VARIABLE
AUDIO OUT

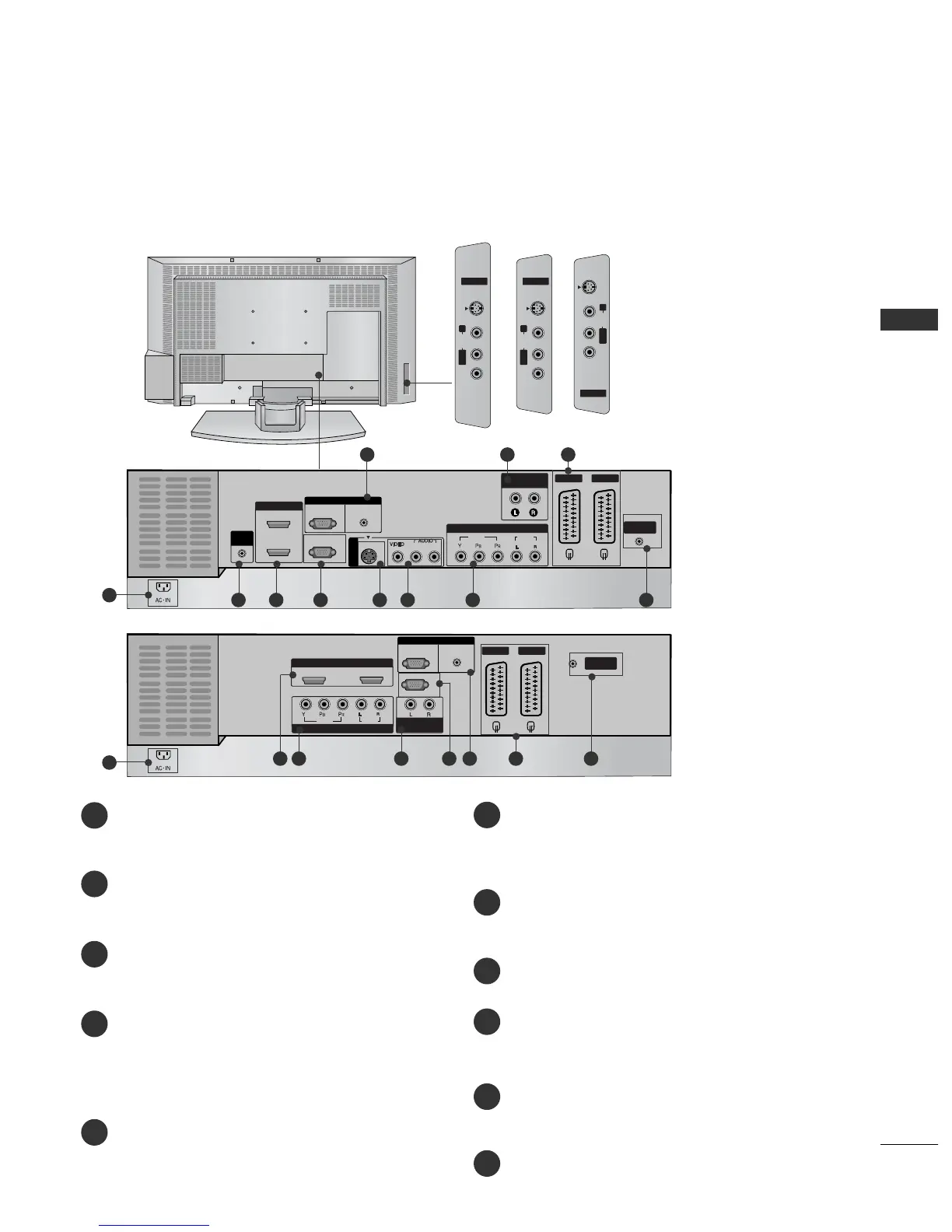

This is the back panel of models
3322//3377//4422//4477LLBB22RR
**
TVs.
Back Connection Panel
AUDIO Input
Connections are available
for listening stereo sound
from an external device.
VIDEO Input
Connects the video signal
from a video device.
4
5 6 7 8 9
10 11
4
1 2 3
4477LLBB22RR
**
4422//3377LLBB22RR
**
3322LLBB22RR
**
6 1 372
10
11
