Picture 7
Using PC 1024X768@60Hz with 16 Gray Level signal
a) Select input source PC of operation unit and plug in PC cable 1024x768@60Hz with 16 Gray Level signal
(Astro PG1 Timing856, Pattern921).
b) Press first item in factory menu “Auto Calibration” → “Calibrate PC” to execute calibration. (see picture 8~9)

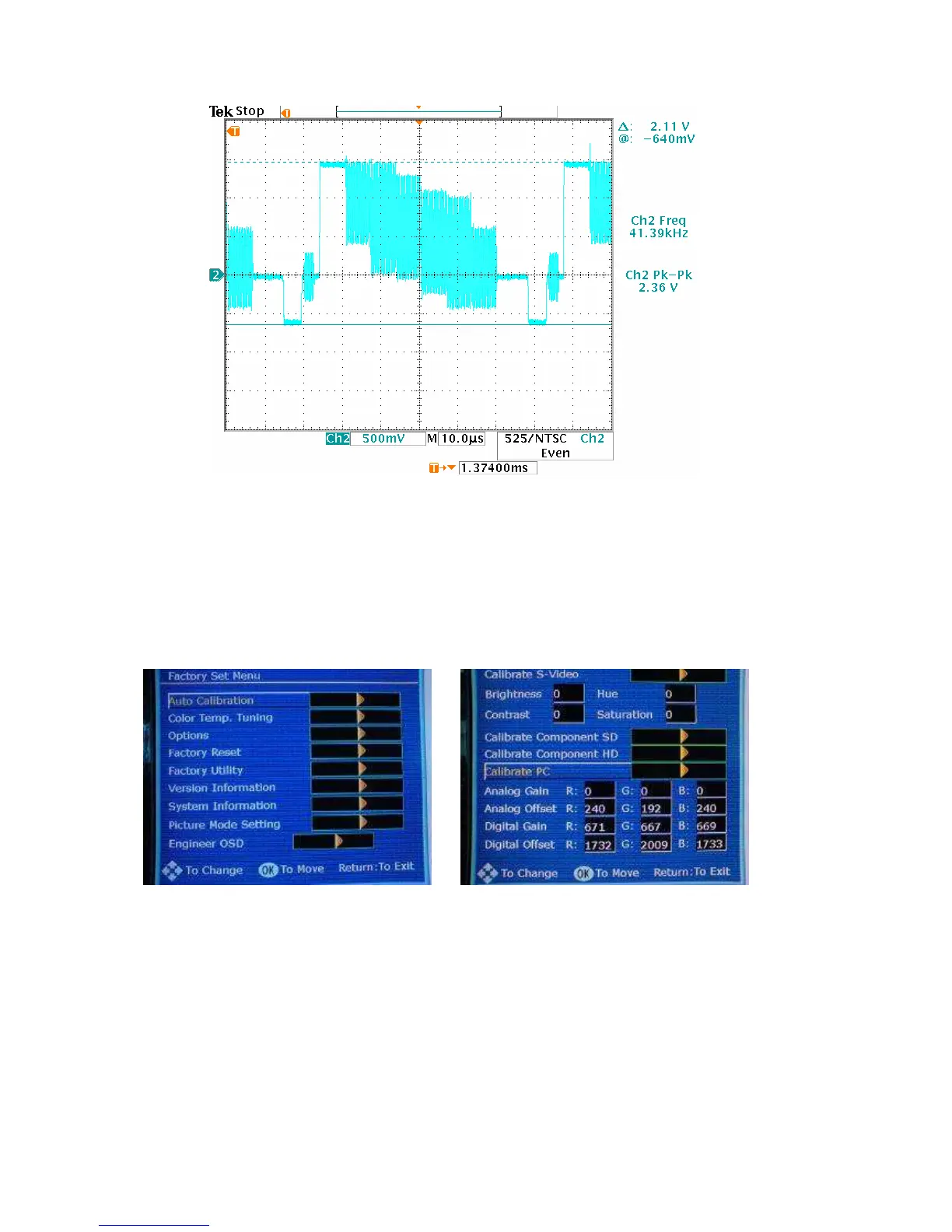

c) The signal level show as picture 10-1~10-3. (respective R, G and B signals)
Picture 8 Picture 9
