44

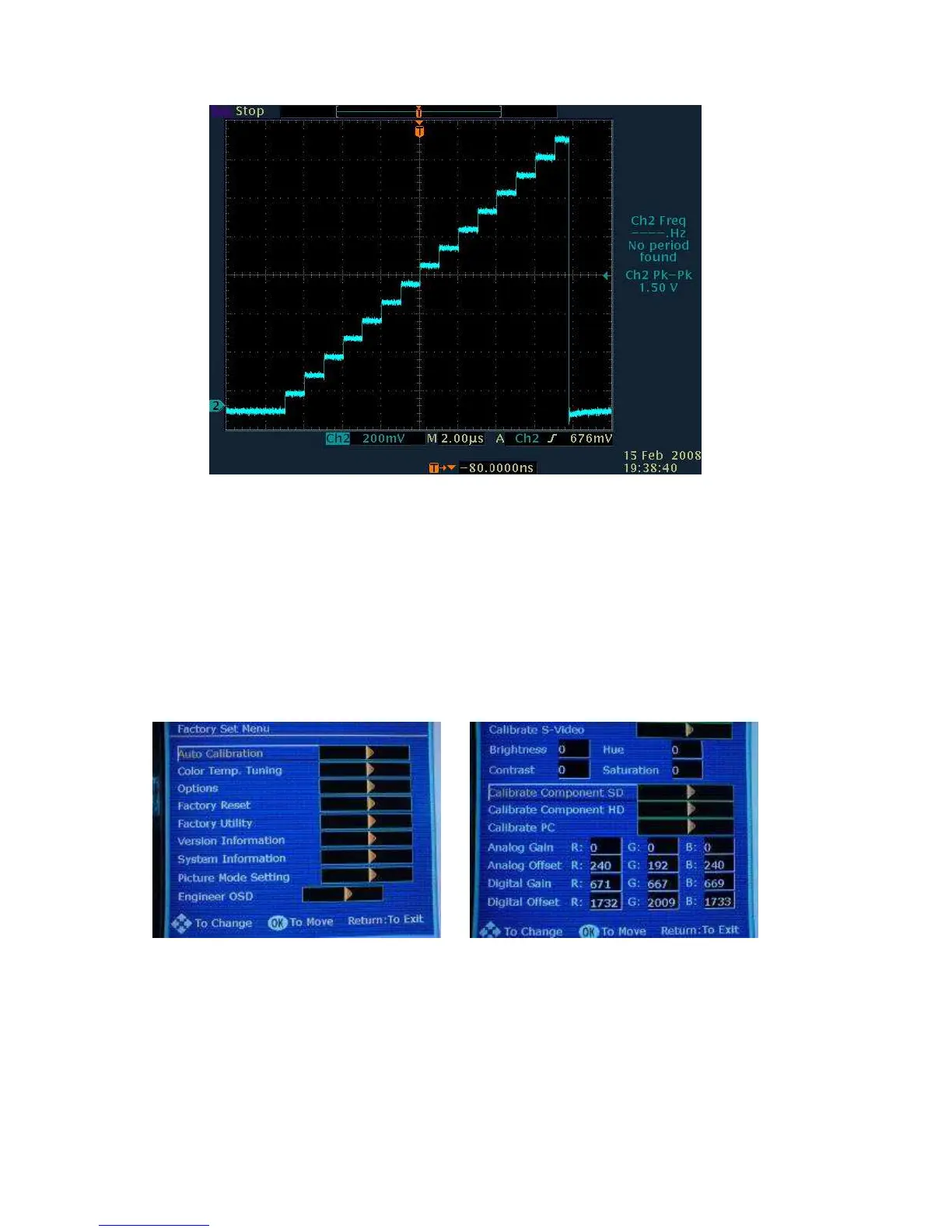

Picture 10-3
Using Component1 NTSC with Color Bar white 75% signal
a) Select input source Component1 of operation unit and plug in component cable NTSC with Color Bar white
75% signal (Astro PG1 Timing968, Pattern968).
b) Press first item in factory menu “Auto Calibration” → “Calibrate Component SD” to execute calibration. (See
picture 11~12)
c) The signal level show as picture 13-1~13-3. (respective Y, Cb and Cr signals)
Picture 11 Picture 12
