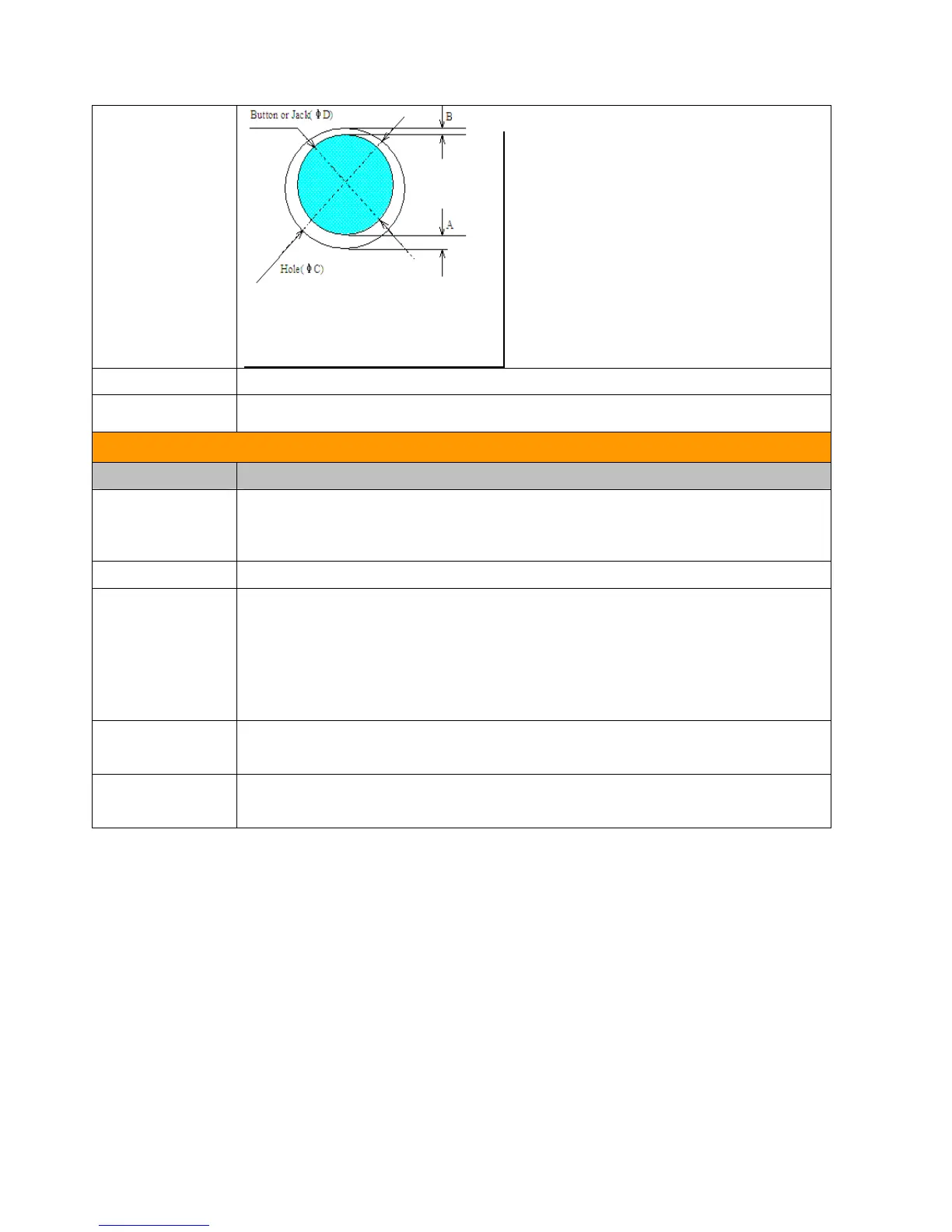

Eccentricity of
button, jack,
and indicator
* B/A x 100% ≥ 60%
Air vent holes
follow UL & IEC standards.
AV jacks
When all AV jack is connected, they must be no interrupt
1.2 - External checks
Checking Item
Test SPEC.
Control
Buttons
① The button mechanism must be smooth to operate and robust.
② Buttons should not rattle, be too loose, or too tight
Printing
follow LG ID spec. included color, size, font…
Printing Ink
Test
* Test :
Scrub 50 times both ways using JIG. The Jig is 1kgf weight, wrapped the
gauze stained ethyl alcohol. Scraping speed is 30~40times/min.
* Judgments :
Must not be erased.
Kensington
Lock
Add Kensington Lock hole on lower left corner.
Cable
management
Cable management should not be too loose, or too tight.
