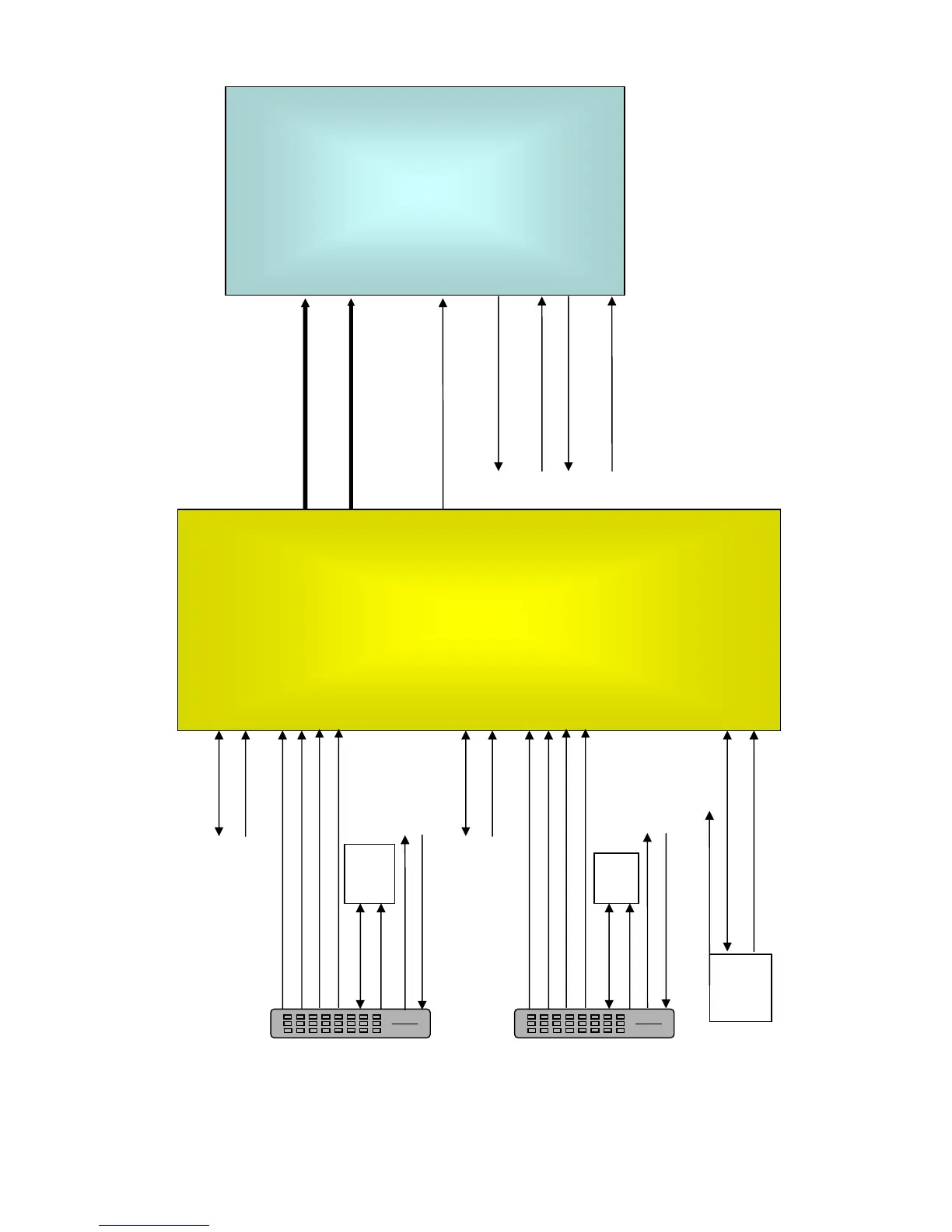

- Video signal path for HDMI
IC704
BCM3550
GPIO
GPIO for Interrupt
HD-DVI
Data [0: 23]
H sync/V sync
/DE/Clock
H,V Sync/Clock
GPIO
GPIO for Power detection 1
GPIO
GPIO for Hot plug detection 1
IC1001
MST3361
TMDS1 RX0+/- TMDS1 RX1+/-
TMDS1 RX2+/- TMDS1 RX3+/-
DDC SDA1 DDC SCL1
EEPROM For EDID
DDC SDA1 DDC SCL1
TMDS1 INPUT DDC1 INPUT
TMDS2 RX0+/- TMDS2 RX1+/-
TMDS2 RX2+/-
TMDS2 RX3+/-
DDC SDA2 DDC SCL2
EEPROM For EDID
DDC SDA2 DDC SCL2
TMDS2 INPUT DDC2 INPUT
HDCP SDA HDCP SCL
EEPROM For HDCP
NDA NCL
INT
DATA_OUT
H,V Sync/DE
/Clock
HDMI 1 HDMI 2
GPIO
GPIO for Power detection 2
GPIO
GPIO for Hot plug detection 2
GPIO for Power detection 2
GPIO for Hot plug detection 2
GPIO for Power detection 1
GPIO for Hot plug detection 1
