LG 40LX560H

USB DO WN S TR EAM
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FIRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFACTURES SPECIFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
2014/05/20

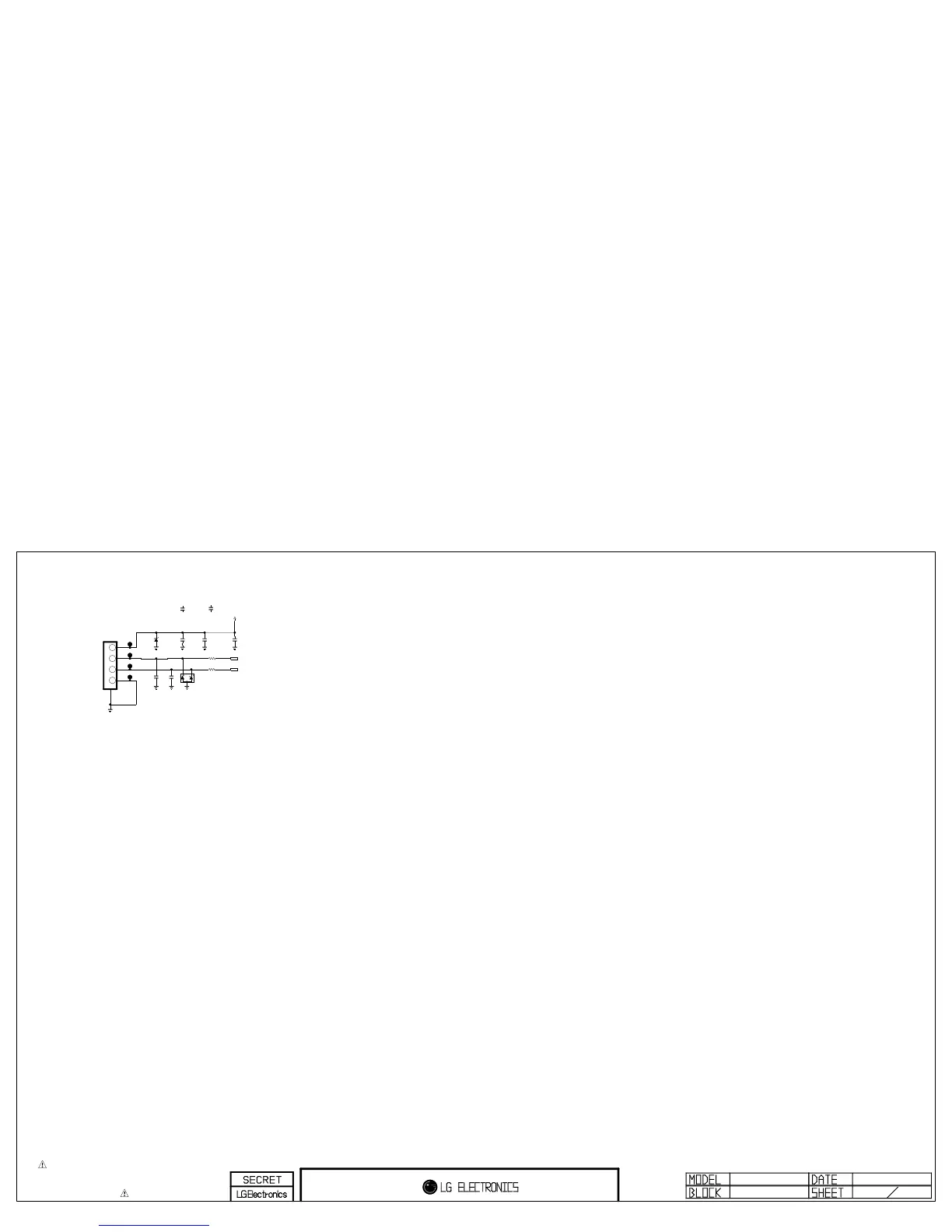

USB_S1
7
L14_CA_M1A
JK700
3AU0 4S -3 05 -Z C-( LG )
1234
5
D700
RCLAMP0502BA
OPT
SIDE_USB1_DM
SIDE_USB1_DP
C700
22uF
10V
USB_HDD_CAP1_22uF
ZD700
5V
OPT
SD05
C701
5pF
50V
OPT
C702
5pF
50V
OPT
C703
22uF
10V
USB_HDD_CAP2_22uF
+5V_USB
C704
22uF
10V
OPT
C700-*1
10uF
10V
USB_HDD_CAP1_10uF
C703-*1
10uF
10V
USB_HDD_CAP2_10uF
R700
2.2
R701
2.2
USB (SIDE)
