INTRODUCTION
CONNECTION OPTION
INTRODUCTION
S-VIDEO
VIDEO
AUDIO
L/MONO
R
S-VIDEO
VIDEO
AUDIO
L/MONO
R
AV IN 2
AV IN 2
HDMI/DVI IN
REMOTE
CONTROL
IN
(CONTROL & SERVICE)
RS-232C IN
RGB IN
AUDIO
(RGB/DVI)
RGB
(PC/DTV)
AV OUT
ANTENNA
IN
S-VIDEO
AV IN 1
R
L
(MONO)
COMPONENT IN
R
L
2
1
PB PR
Y
LR
This is the back panel of models
3322LLBB11RR
**
,
3377LLBB11RR
**
,
4422LLBB11RR
**
,
4477LLBB11RR
**
TVs.

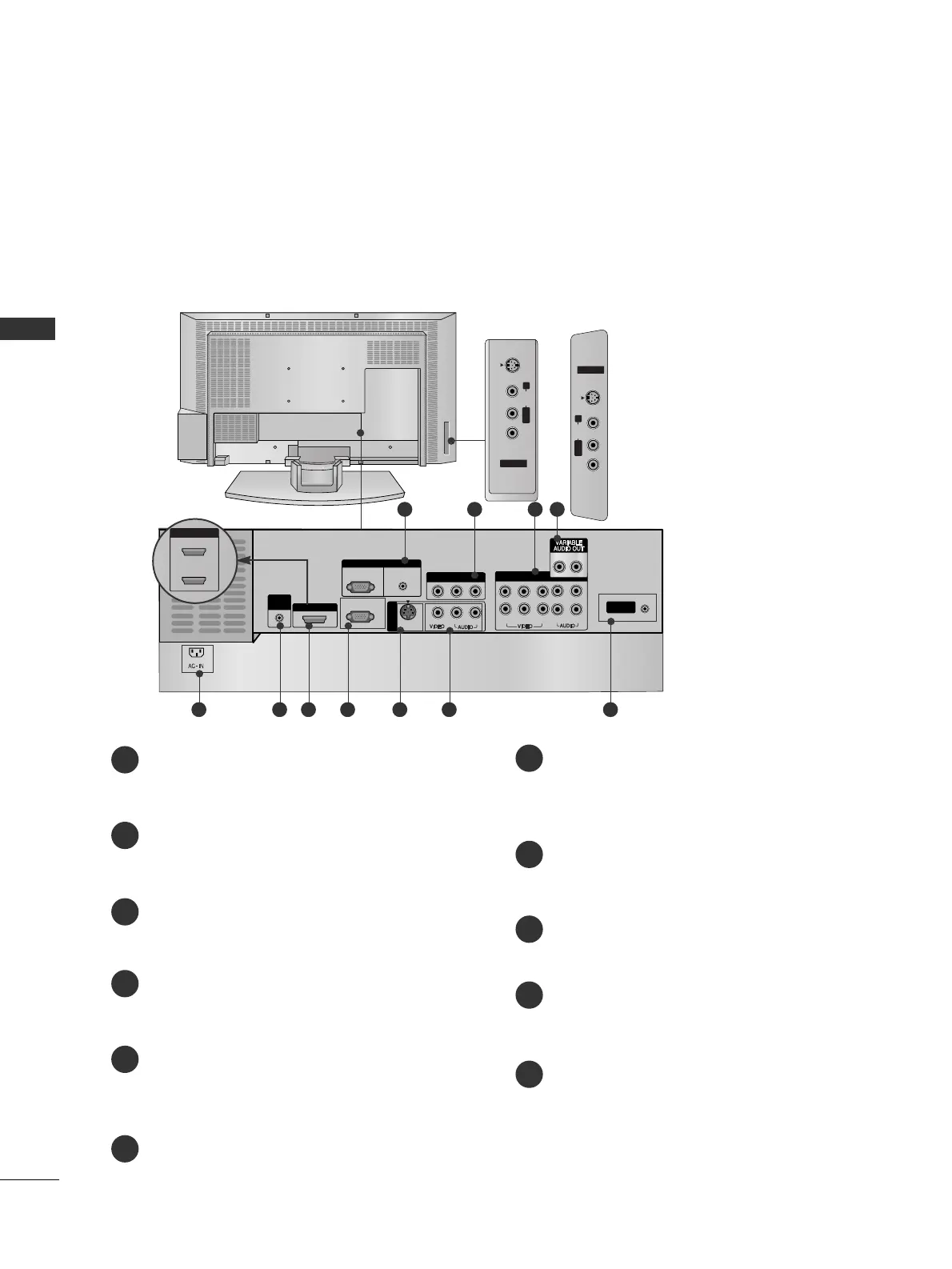

Back Connection Panel
AUDIO Input
Connections are available for listening
stereo sound from an external device.
VIDEO Input
Connects the video signal from a video
device.
32LB1R
**
37/42/47LB1R
**
1 432
5 6 7 8 9
10 11
RGB/Audio Input
Connect the monitor output from a PC/DTV to
the appropriate input port.
AV OUT
Connect the second TV or monitor to the
AV OUT socket on the set.
Component Input
Connect a component video/audio device to
these jacks.
Variable Audio Output
Connect an external amplifier or add a sub
woofer to your surround sound system.
Power Cord Socket
This TV operates on an AC power. The voltage is
indicated on the Specifications page. Never
attempt to operate the TV on DC power.
Remote Control Port
HDMI/DVI(or HDMI)Input
Connect a HDMI signal to HDMI/DVI IN.
Connect DVI(VIDEO) signal to HDMI/DVI port
with DVI to HDMI cable.
RS-232C Input
(CONTROL&SERVICE)Port
Connect the serial port of the control devices
to the RS-232C jack.
S-Video Input
Connect S-Video out from an S-VIDEO device.
Audio/Video Input
Connect audio/video output from an external
device to these jacks.
Antenna Input
1
2
3
4
5
6
7
8
9
10
11
RS-232C IN
(CONTROL & SERVICE)
ANTENNA
IN
AV 1 AV 2
AUDIO OUT
VARIABLE
RGB IN
VIDEO
AUDIO
COMPONENT IN
AV IN 4
L/MONO
R
AUDIO
VIDEO
( )
AUDIO
VIDEO
S-VIDEO
AV IN 3
RGB
(PC/DTV)
2
1 (DVI)1 (DVI)
HDMI INHDMI IN
47LB1R
*
only
