APPENDIX
APPENDIX
RS-232C Setup

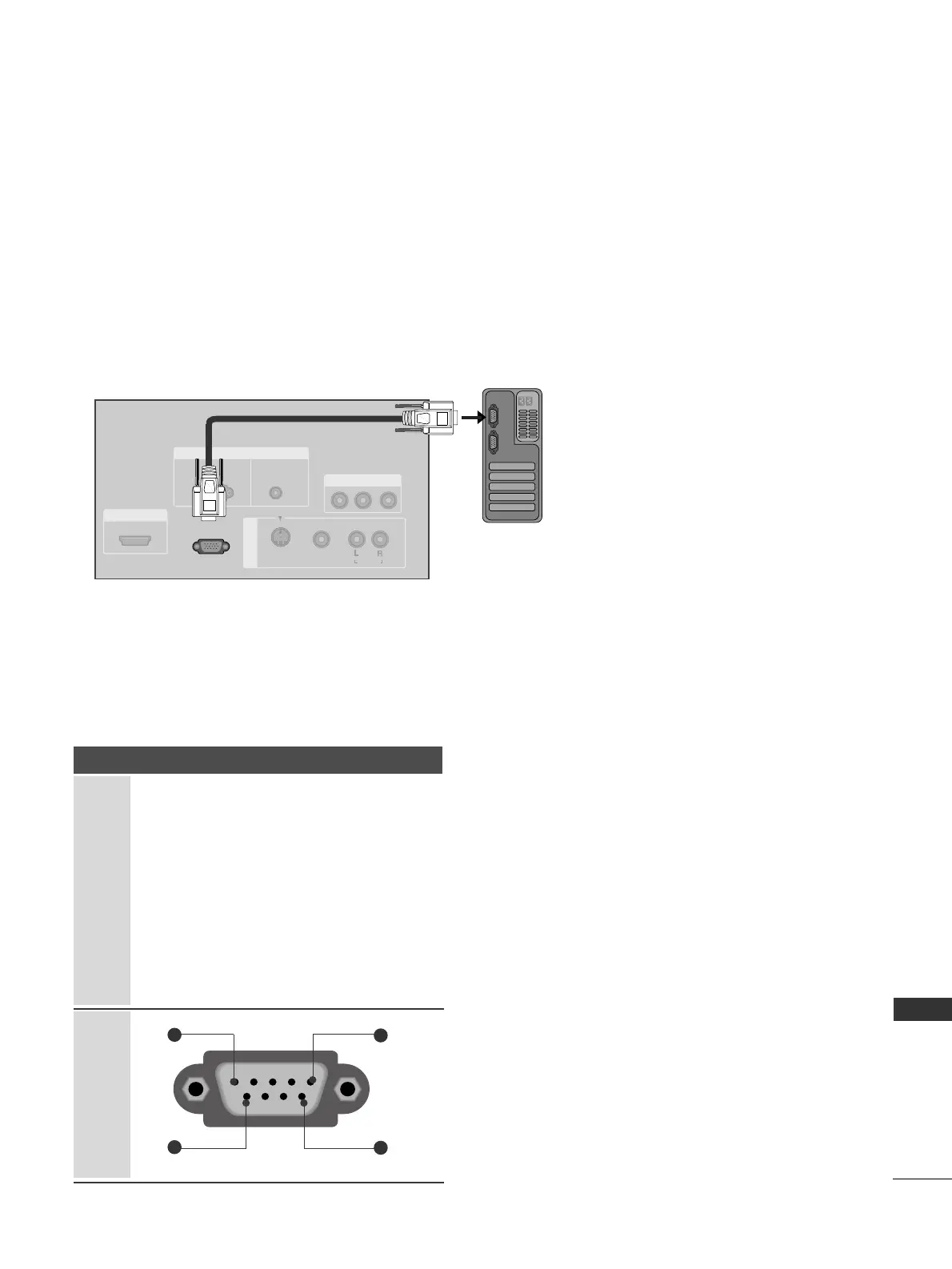

Connect the RS-232C input jack to an external control device (such as a computer or an A/V
control system) and control the TV’s functions externally.
Connect the serial port of the control device to the RS-232C jack on the TV back panel.
RS-232C connection cables are not supplied with the TV.
EXTERNAL CONTROL DEVICE SETUP
Type of Connector; D-Sub 9-Pin Male
RS-232C IN
(CONTROL & SERVICE)
AV OUT
RGB IN
RGB
(PC/DTV)
AUDIO
(RGB/DVI)
VIDEO
S-VIDEO
( )
AUDIO
AV IN 1
HDMI/DVI IN
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4 DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7 RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
1
6
5
9
RS-232C INRS-232C IN
(CONTROL(CONTROL & SERSERVICE)VICE)
AV OUTV OUT
RGB INRGB IN
RGBRGB
(PC/DTV)(PC/DTV)
AUDIOAUDIO
(RGB/DVI)(RGB/DVI)
VIDEO
S-VIDEOS-VIDEO
MONO
( )
AUDIOAUDIO
AV IN 1
HDMI/DVI IN
