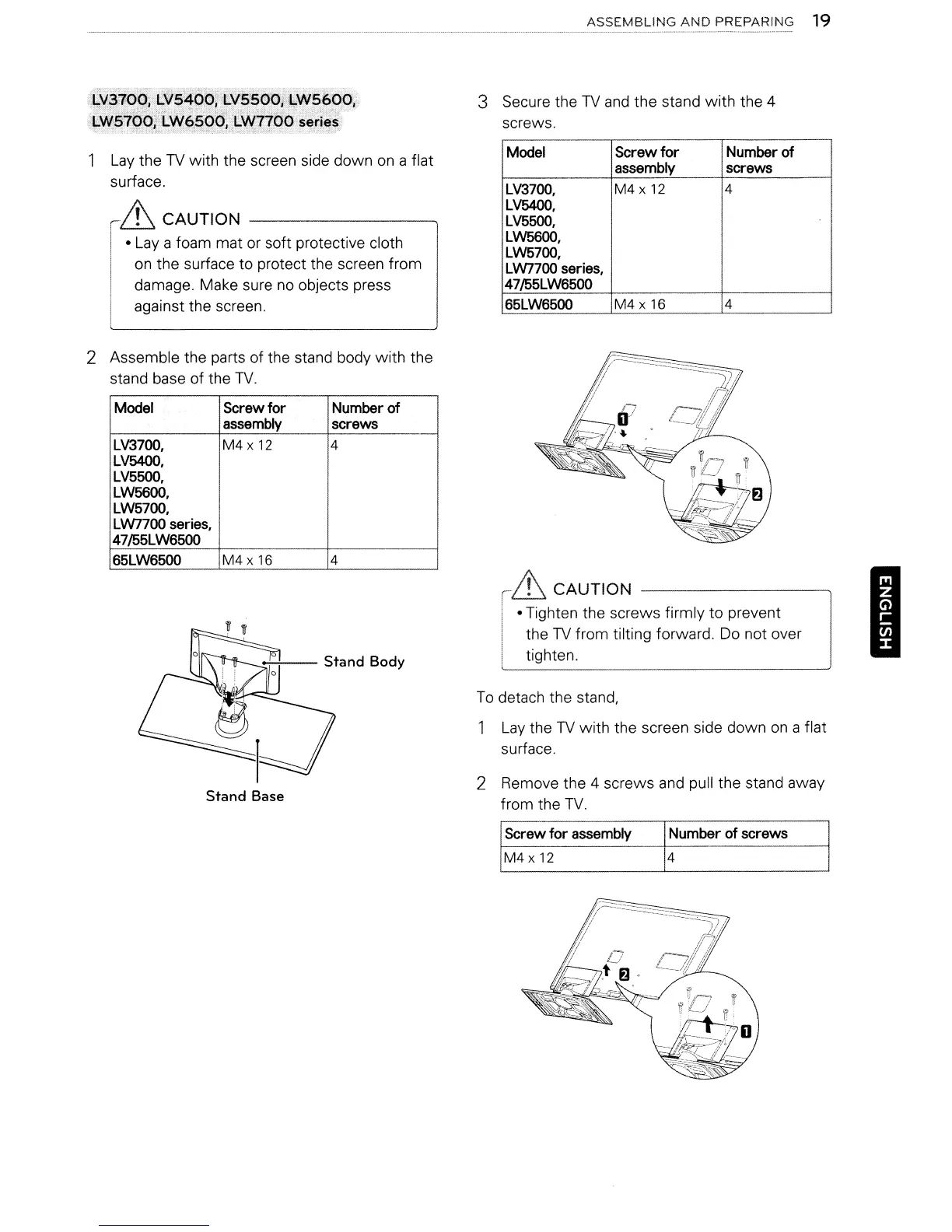

LG 42LK530 - Secure the TV and the Stand with the 4; M4 X 12; Screw for Assembly Number of Screws

~' "'-1
··4V~"
,t;Wf"{
1 Lay the TV with the screen side down on a flat
surface.
1& CAUTION
I • Lay a foam mat or soft protective cloth
I
;
on the surface to protect the screen from
damage. Make sure
no objects press
against the screen.
2 Assemble the parts of the stand body with the
stand base of the
TV.
Model
Screw for Number of
assembly
screws
LV3700,
M4 x 12
4
LV5400,
LV5500,
LW5600,
LW5700,
LW7700 series,
47/55LW6500
65LW6500
M4 x 16 4
V---..!'i-+-- Stand Body
Stand Base
ASSEMBLING AND PREPARING 19
3 Secure the TV and the stand with the 4
screws.
Model
Screw for Number of
assembly screws
LV3700.
M4x 12 4
LV5400.
LV5500,
LW5600.
LW5700,
LW7700 series.
47/55LW6500
65LW6500
M4x 16
4
r& CAUTION
• Tighten the screws firmly to prevent
the
TV from tilting forward. Do not over
tighten.
To detach the stand,
1 Lay the TV with the screen side down on a flat
surface.
2 Remove the 4 screws and pull the stand away
from the
TV.
I
Screw for assembly
M4x 12
Number of screws
4
