LG 42PQ3000 User Manual

11
EXTERNAL EQUIPMENT SETUP
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
■
To avoid damaging any equipment, never plug in any power cords until you have finished connecting all equipment.
■
This section on EXTERNAL EQUIPMENT SETUP mainly uses diagrams for the 42PQ30
**
models.
■
Image shown may differ from your TV.

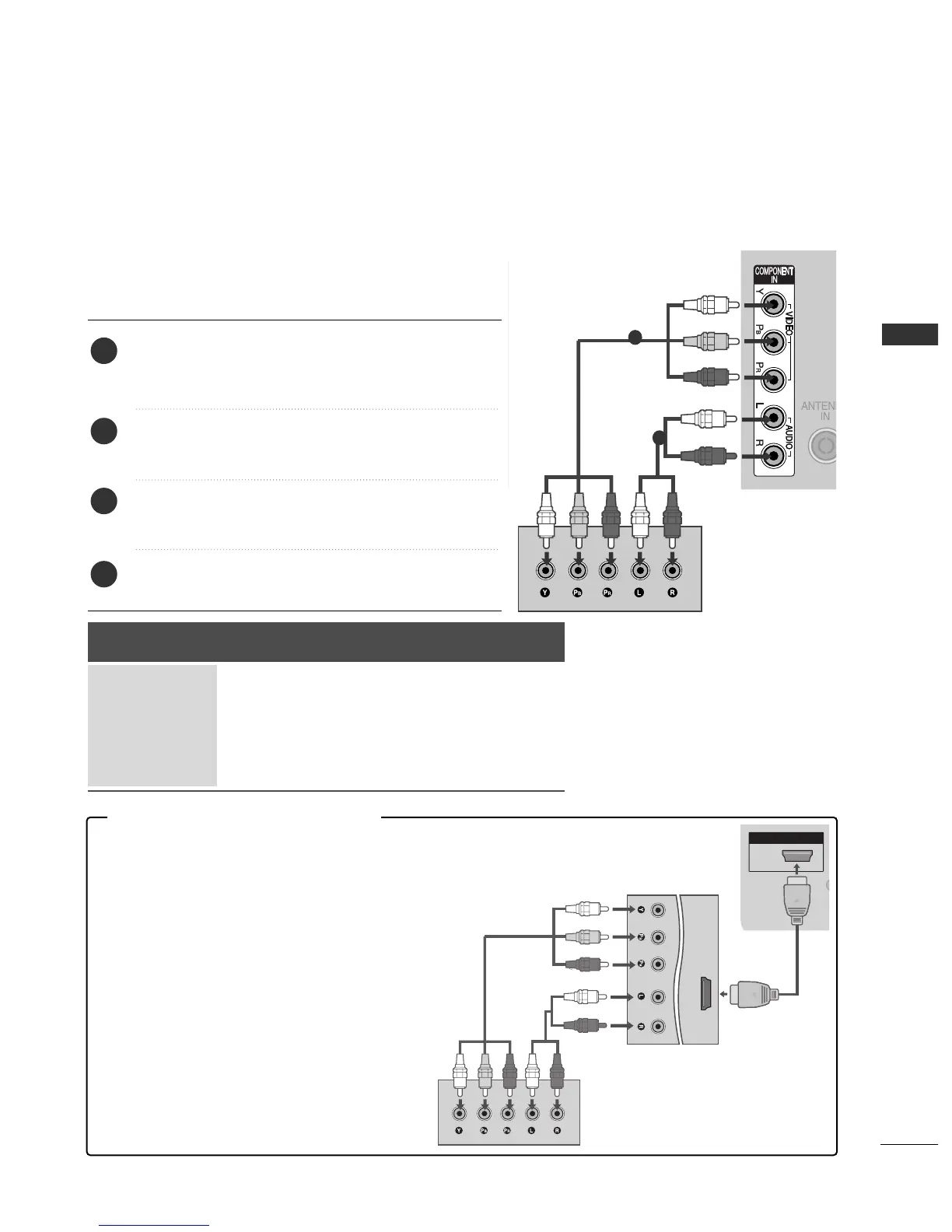

Connecting with a component cable
(Except for 42/50PQ10
**
, 42/50PQ11
**
)
1
2
Signal
480i/576i
480p/576p
720p/1080i
108 0 p
Component
O
O
O
O
(50/60Hz only)
HDMI
X
O
O
O
(24Hz/30Hz/50Hz/60Hz)
■
This TV can receive Digital RF/Cable signals without an external digital set-top box. However, if you do receive
Digital signals from a digital set-top box or other digital external device, refer to the diagram as shown below.
Connect the video outputs
(
Y, PB
, PR
)
of the digital set
top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on the
TV.
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on the TV.
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
Select
CCoommppoonneenntt
input source using the
IINNPPUUTT
button on the remote control.
2
3
4
1
(For 42/50PQ10
**
, 42/50PQ11
**
)
HDMI IN
HDMI OUT
Component to
HDMI adapter
CCoonnnneeccttiinngg wwiitthh aa ccoommppoonneenntt ttoo HHDDMMII aaddaapptteerr
* You can receive HD broadcasting by using
Component to HDMI adapter.
(You can inquire and purchase Component to
HDMI adapter at Website or Market.)
