- 11 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

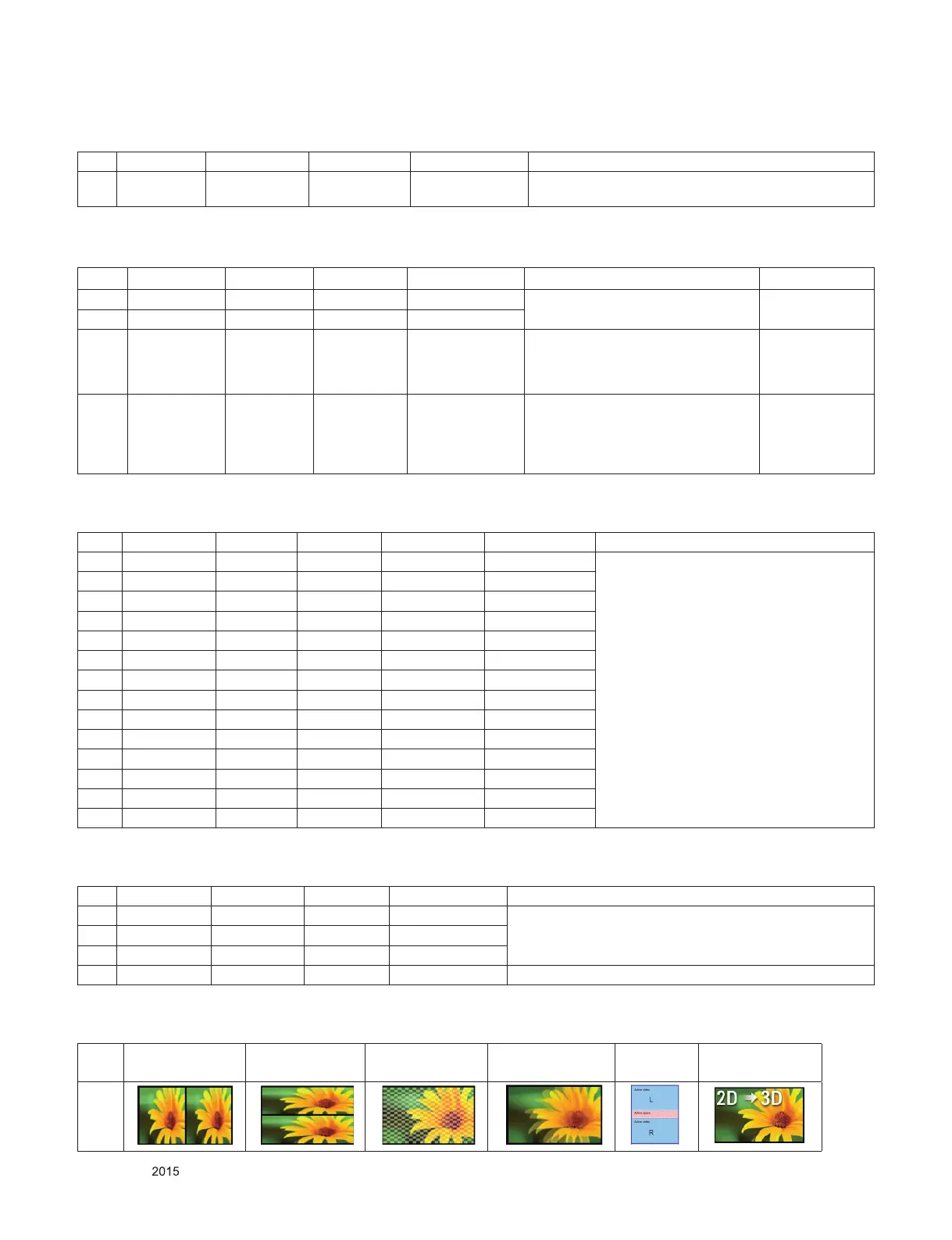

No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock Proposed 3D input proposed mode
1 1280*720 45.00 60.00 74.25 HDTV 720P
2D to 3D, Side by Side(Half), Top & Bottom
2 1280*720 37.500 50 74.25 HDTV 720P
3 1280*720 44.96 59.94 74.176 HDTV 720P
4 1920*1080 33.75 60.00 74.25 HDTV 1080I
5 1920*1080 33.72 59.94 74.176 HDTV 1080I
6 1920*1080 28.12 50 74.25 HDTV 1080I
7 1920*1080 67.500 60 148.50 HDTV 1080P
8 1920*1080 67.432 59.94 148.352 HDTV 1080P
9 1920*1080 27.000 24.000 74.25 HDTV 1080P
10 1920*1080 28.12 25 74.25 HDTV 1080P
11 1920*1080 56.25 50 74.25 HDTV 1080P
12 1920*1080 26.97 23.976 74.176 HDTV 1080P
13 1920*1080 33.75 30.000 74.25 HDTV 1080P
14 1920*1080 33.71 29.97 74.176 HDTV 1080P
7.8. Component Input(3D) (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode Proposed
1 1024*768 48.36 60 65
2D to 3D, Side by Side(half)
Top & Bottom
HDTV 768P
2 1360*768 47.71 60 85.5
3 1920*1080 67.500 60 148.50
2D to 3D, Side by Side(half), Top &
Bottom, Checker Board, Single Frame
Sequential, Row Interleaving, Column
Interleaving
HDTV 1080P
4 Others - - -
2D to 3D,
Side by Side(half)
Top & Bottom
640*350
720*400
640*480
800*600
1152*864
7.7. HDMI-PC Input (3D supported mode manually)
* USB Input (3D supported mode automatically)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1080P 33.75 30 74.25
Side by Side(Half), Top & Bottom, Checker Board,
MPO(Photo), JPS(Photo)
7.10. 3D Input mode
No. Side by Side Top & Bottom Checker board
Single Frame
Sequential
Frame
Packing
2D to 3D
1
ii.
iii.
iv.
v.
vi.
7.9. Miracast, Widi (3D supported mode manually)
No. Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) 3D input proposed mode
1 1024X768p - 30 / 60 -
2D to 3D, Side by Side(Half), Top & Bottom2 1280x720p - 30 / 60 -
3 1920X1080p 30 / 60
4 Others - 2D to 3D
