- 17 -
Copyright © LG Electronics Inc. All rights reserved.
Only for training and service purposes.

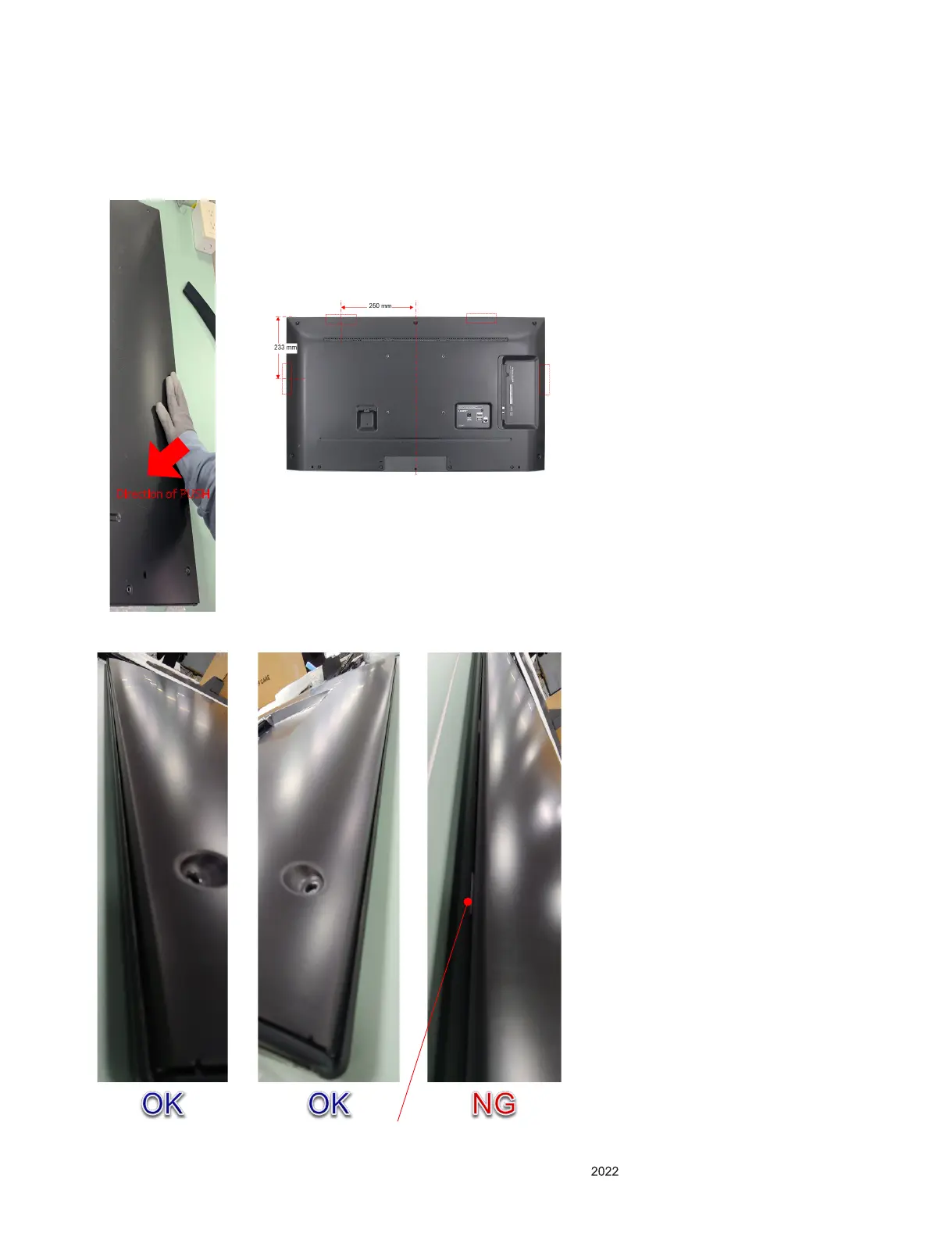

3. Rear Cover Latch Assemble Guide
(1) After put the rear Cover on the module, push latch point in rear Cover curved area. (refer. Picture)
- Push slope direction of rear cover for preventing faulty appearance
(2) Confirm Latch Assemble part (If Latch is not assemble, Gap and lifting are made.)
Gap between B/C and Module
Direction of PUSH
To Next Page
