LG 43SM5KD Service Manual

- 11 -
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes.

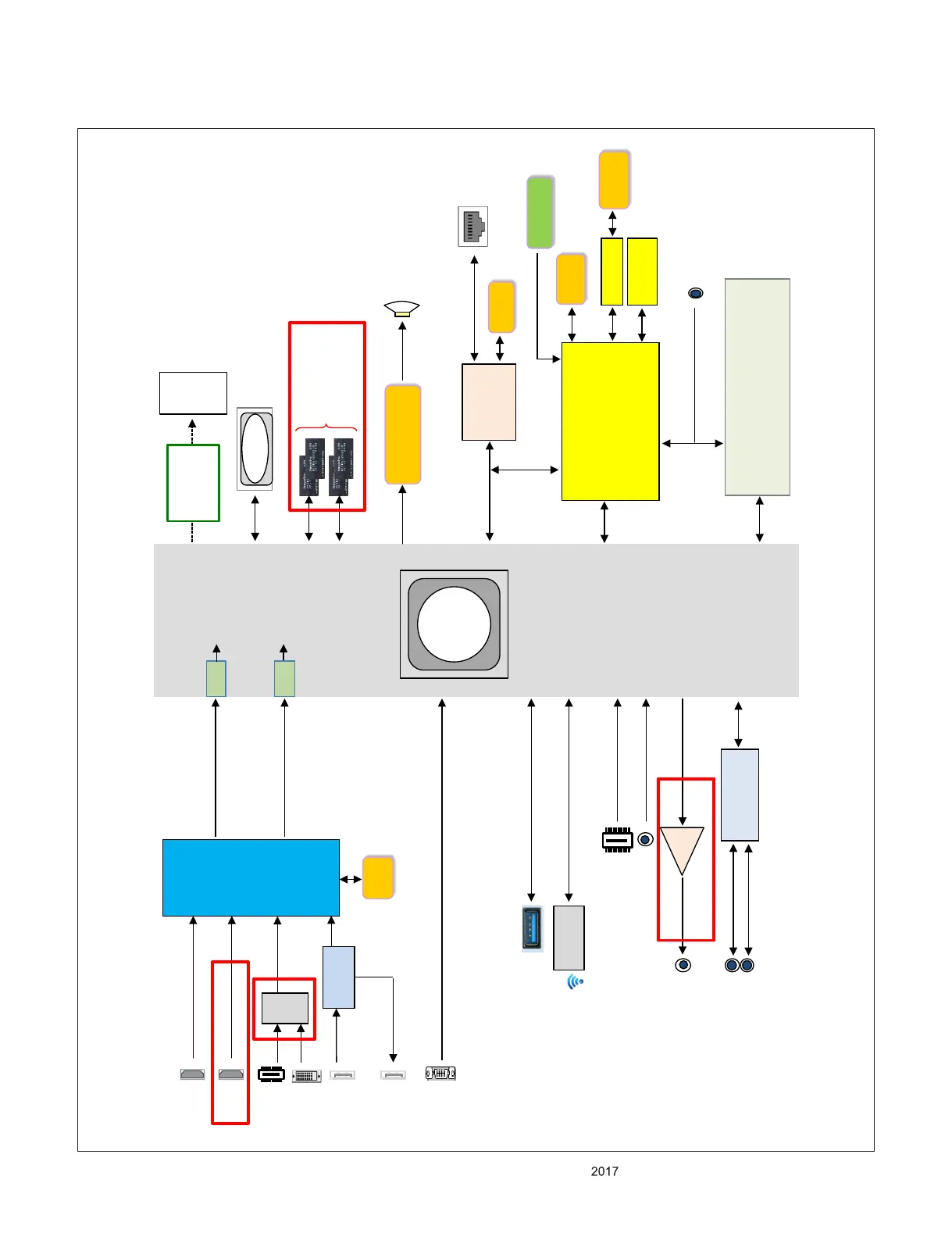

BLOCK DIAGRAM
IC101
HDMI2
DVI
DP IN
TMDS
DP OUT
RX2_1 RX2_2
OPS
HDMI1
2:1 M U X
TS3DV642
TMDS
TMDS TMDS
DP
X-TAL
24MHZ
TX0
TX1
TMDS
STDP4320 DP Splitter
R / G /B / V Sync / H Sync
RGB IN
TMDS
USB 3.0
내장Wifi
(8P)
LVDS
Panel
65SM5D : 1,920 x 1.080@120Hz 55/49/43/32SM5D : 1,920 x 1,080@60Hz
URSA8
(65”)
eMMC
eMMC
V5.0 ( 8GB)
M0 M1
4Gb×4 : 16Gb (2GB )
Audio AM P
(NTP7515)
SPK 10W x 2ch, 6ohm
I2S
SCL/SDA1
SCL/SDA0 SCL/SDA2 SCL/SDA3 SCL/SDA4
LAN IN
MICOM(NEC)
UPD78F1166AGF
X-TAL
10MHZ
Local Key
PHY
RTL8201
RTC
EEPROM
2Kb
I2C
I2C
I2C
X-TAL
25MHZ
X-TAL
32.768KH z
NTP7515, EYE Sensor RGB , Thermal Sensor , EEPROM NVRAM
I2C
UTP
IR / 조도 Sensor
IR
EYE_SDA/SCL
MAX3232
RS-232C IN RS-232C OUT
Audio In
OPS Audio
Audio Out
D+/D-
Analog L/R Analog L/R
Analog L/R
HDMI
Switch
MN864788
RMII MDC/MDIO
MDC/MDIO
Rx0
Rx1 Rx3 Rx2
