EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup

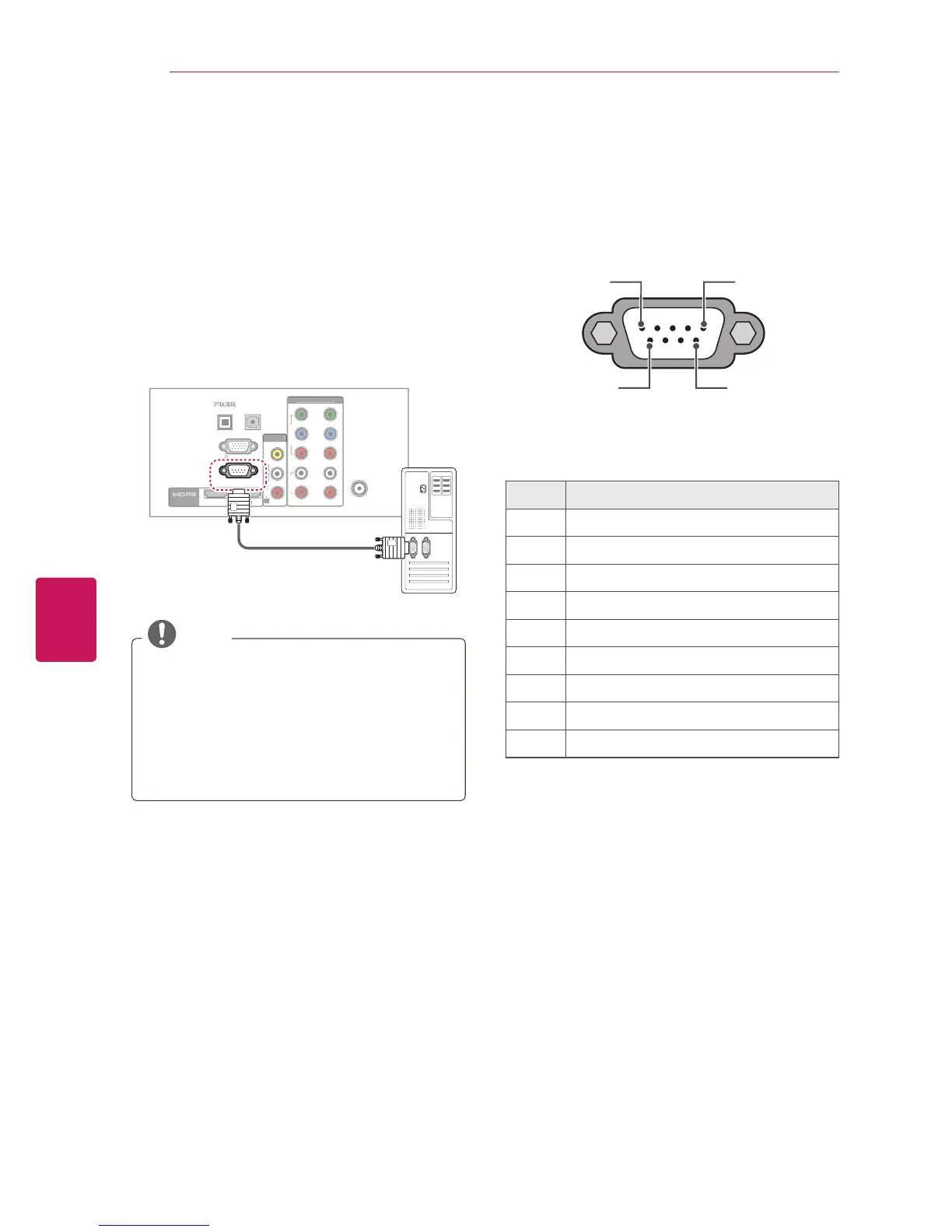

Connect the RS-232C (serial port) input jack to
an external control device (such as a computer or
an A/V control system) to control the product’s
functions externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.
1
2
C
OMPONENT IN
Y
P
B
P
R
R
L
V
IDE
O
AU
DI
O
R
A
V IN
1
L/
M
O
N
O
A
NTENNA /
C
ABLE I
N
RS-232C IN (CONTROL & SERVICE)
R
GB IN (PC)
A
UDI
O
O
U
T
(
R
G
B
/
DVI
)
A
UDIO IN
/
DVI I
N
2
1
V
IDE
O
AU
DI
O
NOTE

RS-232C on this unit is intended to be used
with third party RS-232C control hardware
and software. The instructions below
are provided to help with programming
software or to test functionality using telenet
software. RS-232C connection cables are not
supplied with the product.
Type of connector;
D-Sub 9-Pin Male
1 5
6 9
RS-232C IN
(CONTROL & SERVICE)
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
