LG 47LB5DF - Page 20

- 20 -
ATI
(X260)

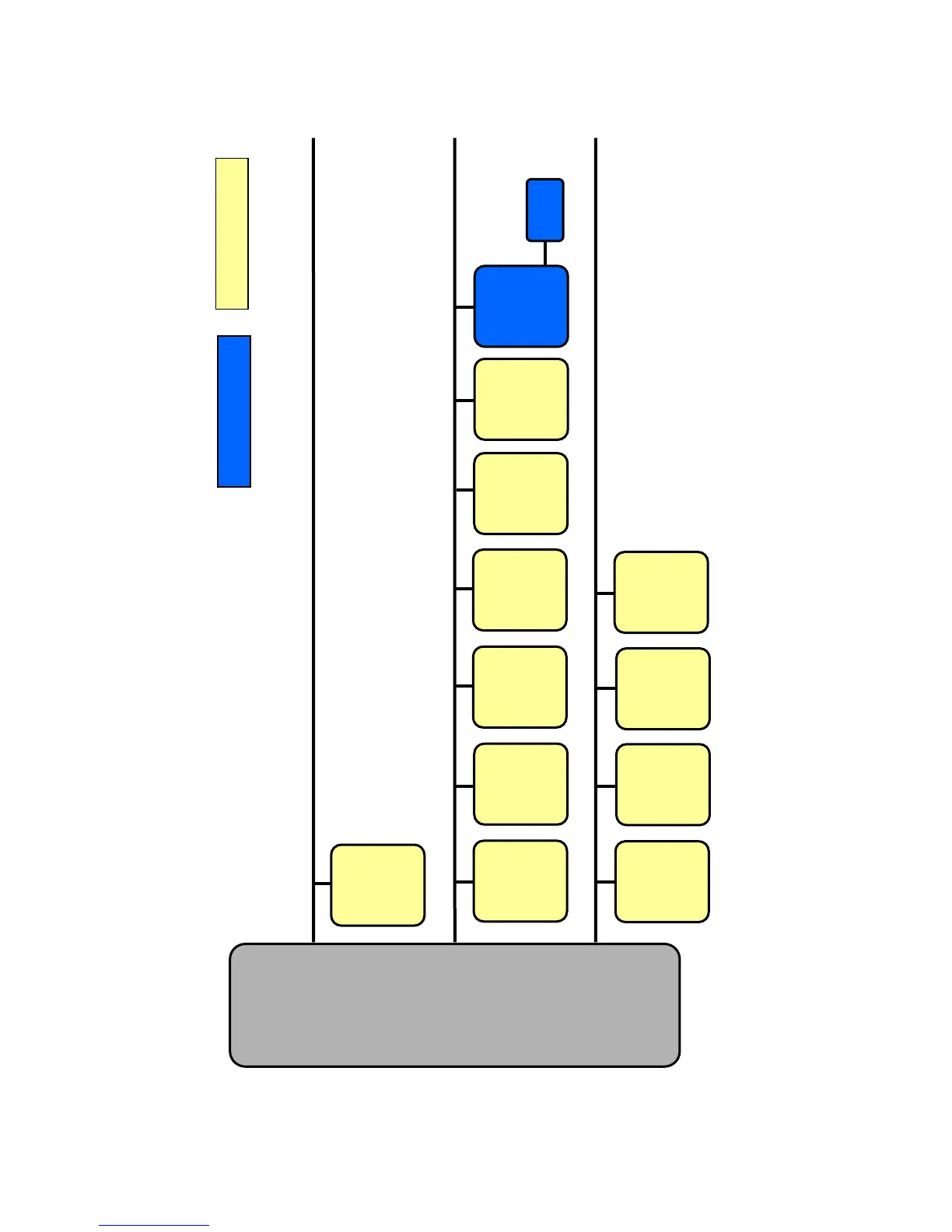

I2C Master
AT/NT Tuner
0xC2
HDMI
ADC
(MST3361)
0X9C
Temp.
Sensor
(LM75)
0X94
U-Com
(MTV416)
0x50
I2C_CH1 (+3.3V_L & +5V_L)
I2C_CH2 (+3.3V_L & +5V_L)
I2C_CH3 (+3.3V_L)
Port
Expander (M62320)
0X74
Audio
Switch
(MSP4450K)
0X80
DASP
(NTP3000)
0X54
PDP Module
0x1C
VSB/QAM
(LGDT3703)
Main
0X1C
Live
Dead
CS8416A
0X20(W)
0X21(R)
EEPROM
(24LC512)
0xA6
CH1 CH2 CH3
FRC94XYH
0xD4
EEPROM
(24LC16)
5V
5V
5V
2.5V
