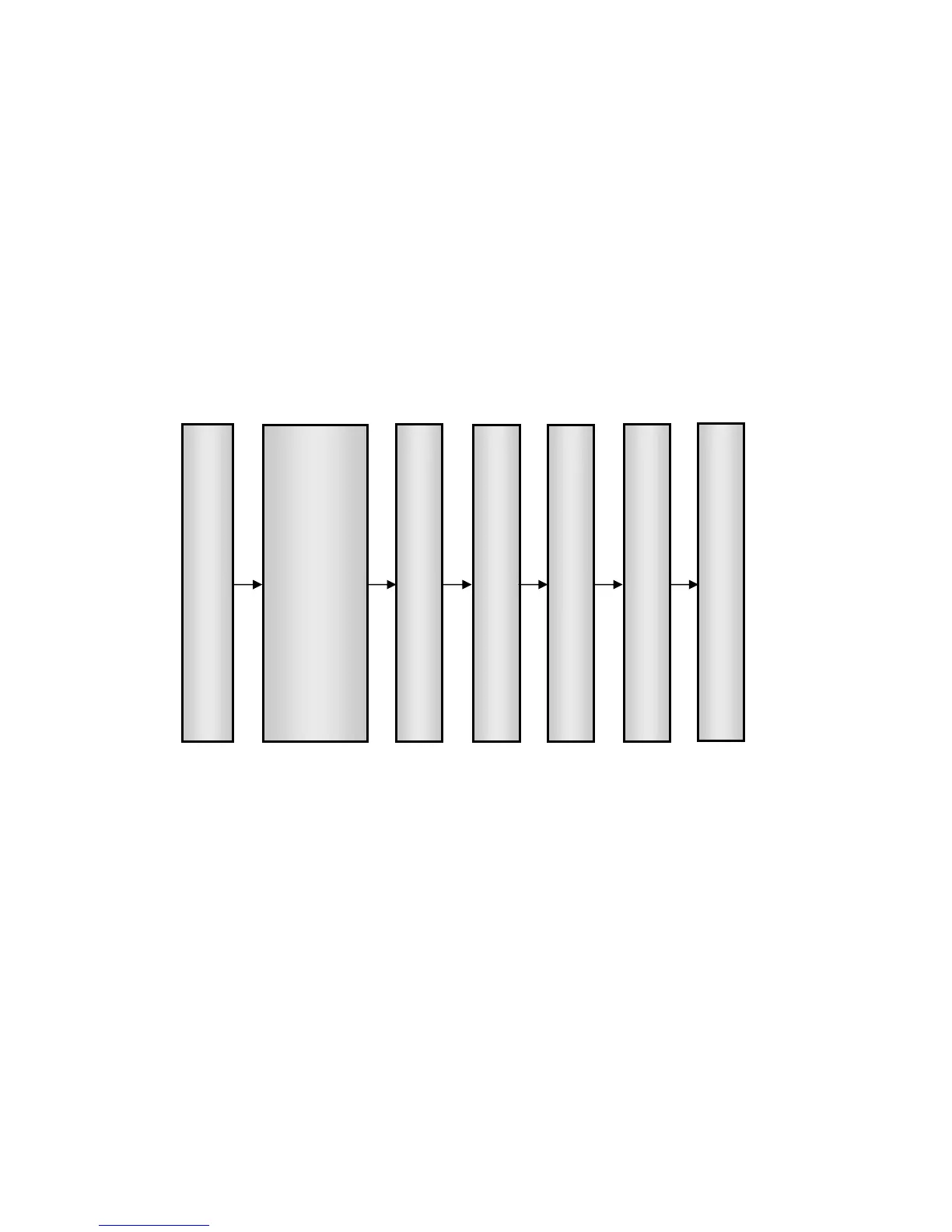

Check MSP4450K (IC508) outputs
R5039(SCLK), R5040(LRCLK), R5043(DATA)
1
2
3
5
6
7
Follow the procedure of
“COMMON SOUND OUT”
Check MSP4450K (IC508) Inputs
R5041(AV1_R), 5042(AV1_L),
R5045(AV2_R), R5046(AV2_L),
R5048(CMP1_R),R5049(CMP1_L),
R5051(CMP2_R),5052(CMP2_L),
R5055(RGB_R), R5058(RGB_L)
Check AV/COMPONENT/RGB Cable
Check X260 (IC101) Inputs
R175(SCLK), R176(LRCLK), R177(DATA)
Check MSP4450K (IC508) X-tal Input
X-tal Input (71,72pin)
Check MSP4450K (IC508) Power
4
To Next Page
