LG 47LF21 - EXTERNAL EQUIPMENT SETUP (Continued); DVD Setup: Component Connection

EXTERNAL EQUIPMENT SETUP
35
DVD SETUP
Component Connection
Component Input ports

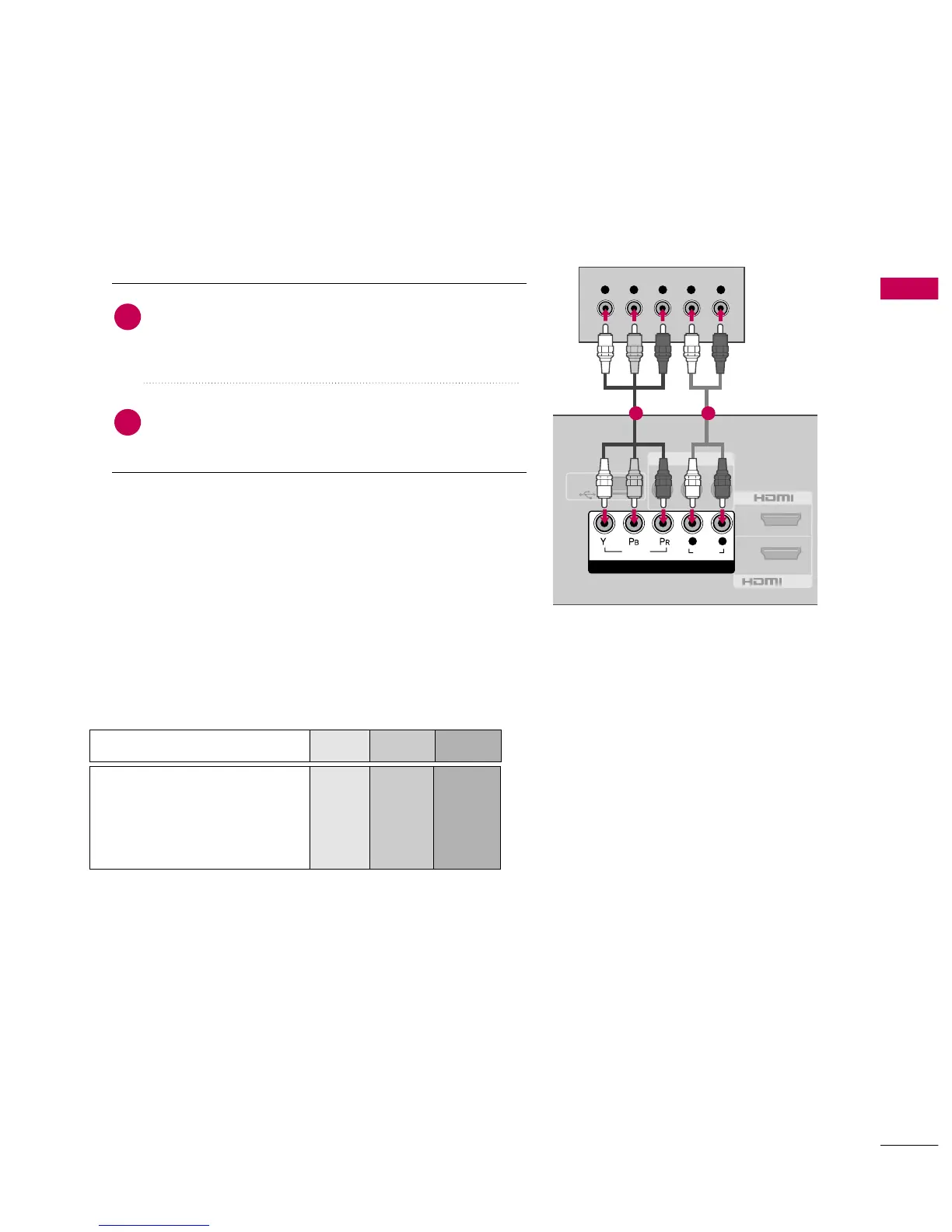

To get better picture quality, connect a DVD player to the
component input ports as shown below.
Component ports on the TV
YPB PR
Video output ports
on DVD player
Y
Y
Y
Y
P
B
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr
USB IN
SERVICE ONLY
A
(
VIDEO AUDIO
L(MONO) R
AV IN
Y L RPB PR
2
1
/DVI IN
VIDEO
AUDIO
COMPONENT IN
L R
1 2
Connect the video outputs
(
Y, PB
, P
R
)
of the DVD to
the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO
jacks on the TV. Match
the jack colors
(
Y = green, P
B
= blue, and PR = red
)
.
Connect the audio outputs of the DVD to the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO
jacks on the TV.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select the
CCoommppoonneenntt
input source on the TV using the
IINNPPUUTT
button on the remote control.
■
Refer to the DVD player's manual for operating instructions.
2
1
