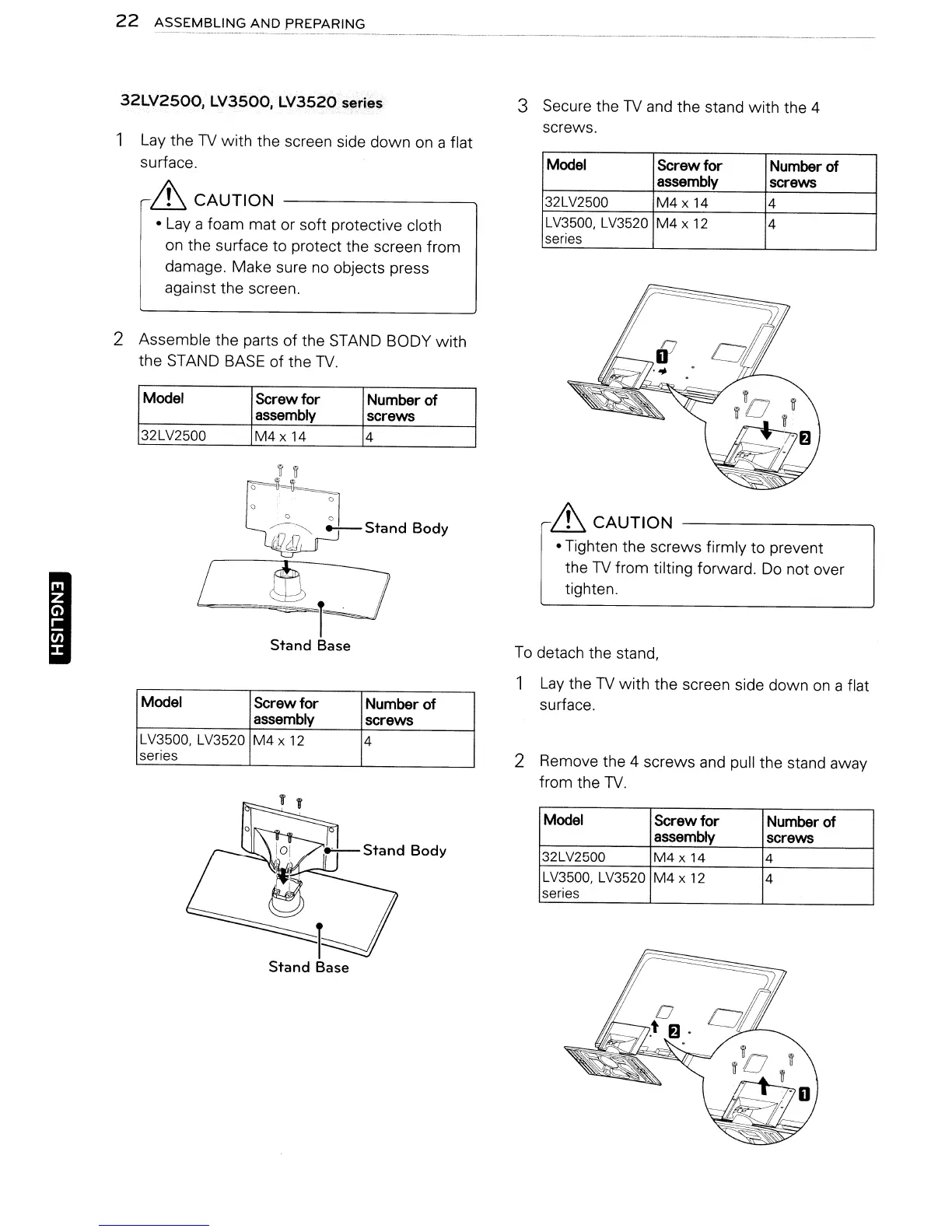

22 ASSEMBLING AND PREPARING
32LV2500, LV3500, LV352Q series
1 Lay the TV with the screen side down on a flat
surface.
& CAUTION
• Lay a foam mat or soft protective cloth
on
the surface to protect the screen from
damage. Make sure no objects press
against the screen.
2 Assemble the parts of the STAND BODY with
the STAND BASE of the TV.
Model Screw for Number of
assembly screws
32LV2500 M4x 14 4
/
Stand Base
Model
Screw
for Number of
assembly
screws
LV3500, LV3520
M4 x 12 4
series
3 Secure the TV and the stand with the 4
screws.
Model
Screw
for
Number of
assembly
screws
32LV2500 M4 x 14 4
LV3500, LV3520 M4 x 12 4
series
& CAUTION
• Tighten the screws firmly to prevent
the TV from tilting forward. Do not over
tighten.
To detach the stand,
1 Lay the TV with the screen side down on a flat
surface.
2 Remove the 4 screws and pull the stand away
from the TV.
Model Screw for
Number of
assembly
screws
32LV2500
M4 x 14
4
LV3500, LV3520 M4 x 12 4
series
