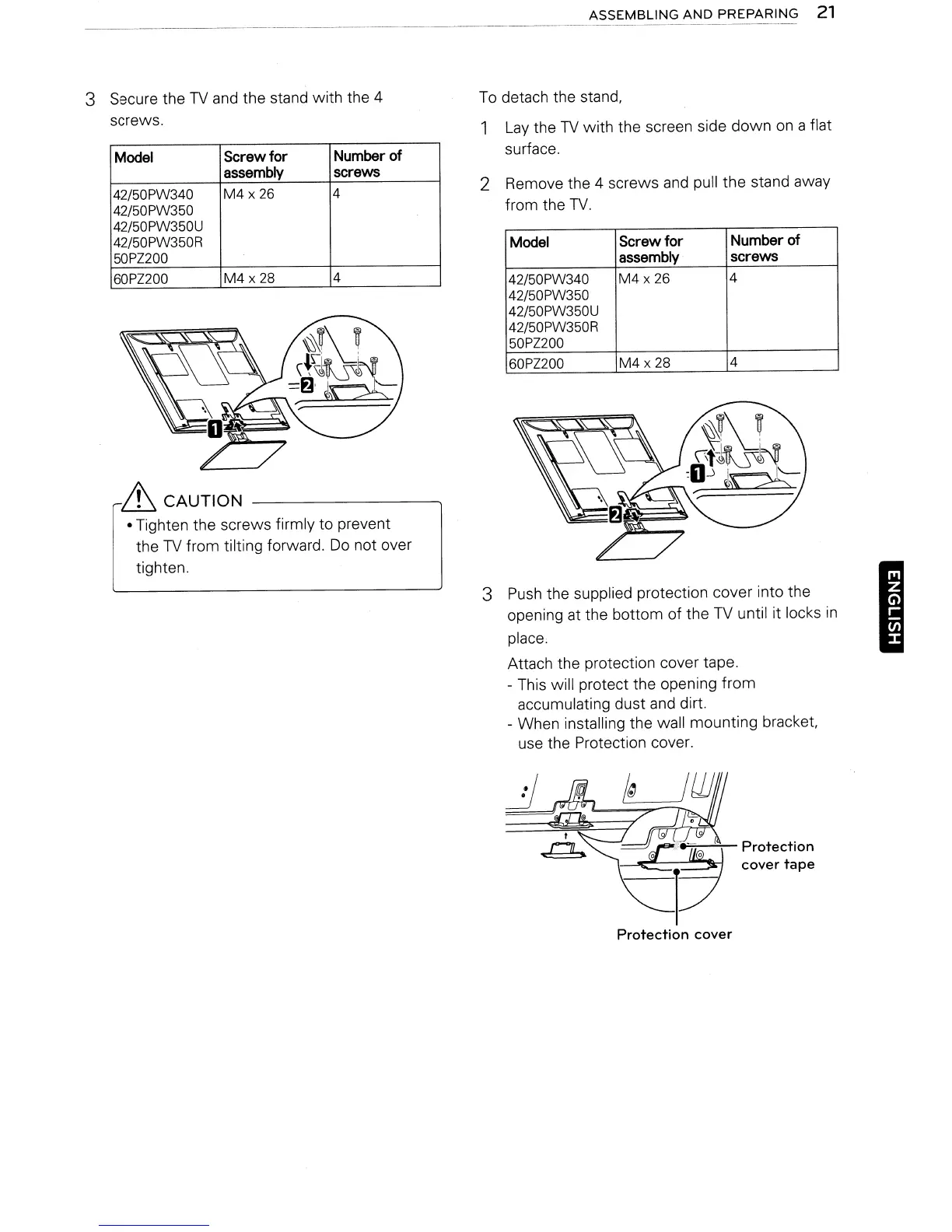

LG 47LK520 - Secure the TV and the Stand with the

ASSEMBLING AND PREPARING 21
---------------
3 Secure the TV and the stand with the 4
screws.
Model Screw for Number of
assembly screws
42/50PW340 M4 x 26 4
42/50PW350
42/50PW350U
42/50PW350R
50PZ200
60PZ200
M4x28 4
& CAUTION
• Tighten the screws firmly to prevent
the
TV from tilting forward. Do not over
tighten.
To detach the stand,
1 Lay the TV with the screen side down on a flat
surface.
2 Remove the 4 screws and pull the stand away
from the
TV.
Model Screw for
Number of
assembly screws
42/50PW340
M4 x 26 4
42/50PW350
42/50PW350U
42/50PW350R
50PZ200
60PZ200
M4 x 28
4
3 Push the supplied protection cover into the
opening at the bottom of the
TV until it locks in
place.
Attach the protection cover tape.
- This will protect the opening from
accumulating dust and dirt.
- When installing the wall mounting bracket,
use the Protection cover.
I
Protection
cover tape
Protection cover
