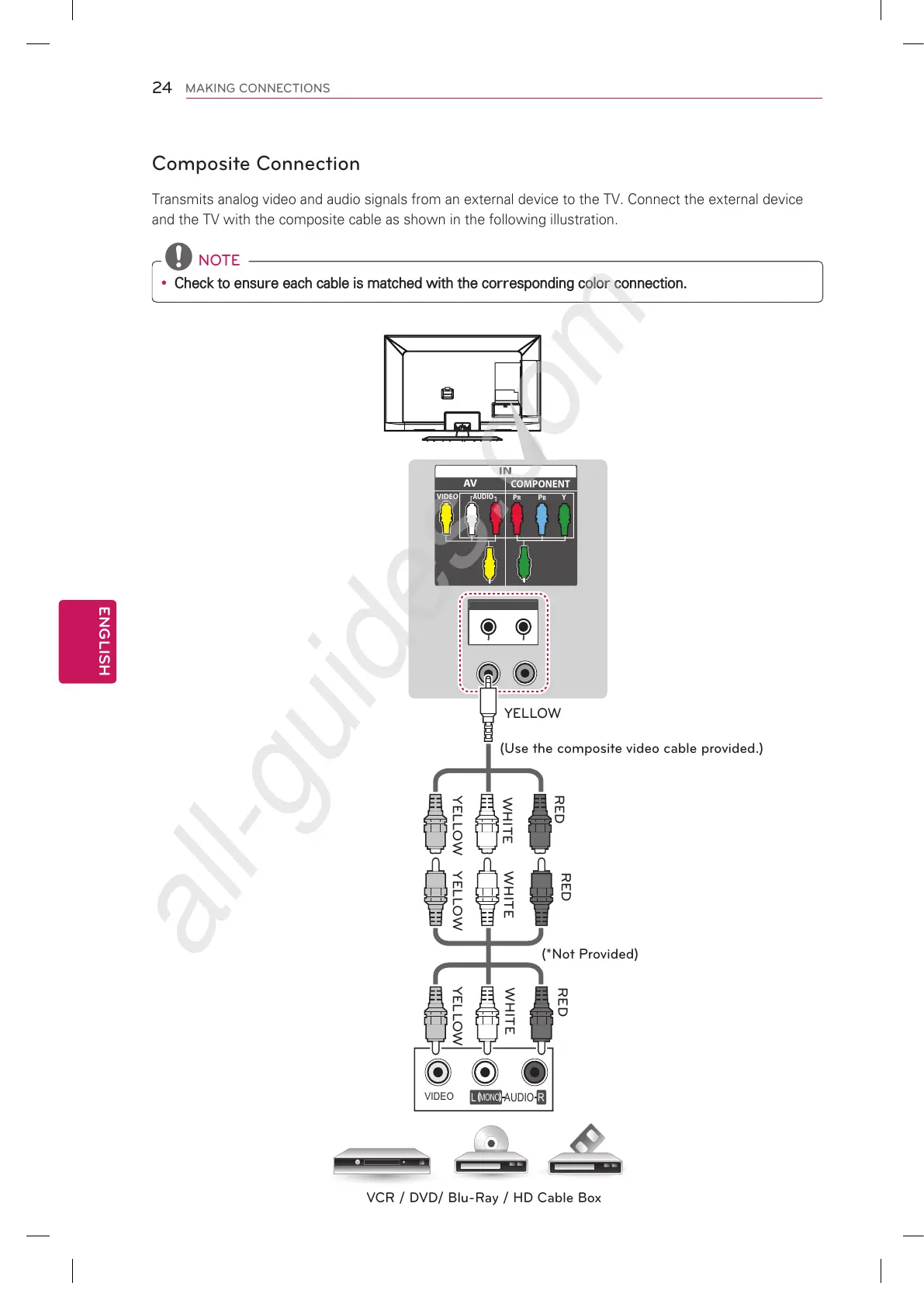

Composite Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with the composite cable as shown in the following illustration.
NOTE

Check to ensure each cable is matched with the corresponding color connection.
VIDEO
MONO
( )
AUDIOL R
IN
COMPONENT
AV
PR
P
B
Y
AUDIO
VIDEO
VCR / DVD/ Blu-Ray / HD Cable Box
(*Not Provided)
YELLOW
WHITE
RED
YELLOW
WHITE
RED
YELLOW
WHITE
RED
(Use the composite video cable provided.)
