6. CI+ Key Download method
6.1. Download Procedure
(1) Press "Power on" key of a service R/C.
(Baud rate : 115200 bps)
(2) Connect RS232-C Signal Cable.
(3) Write CI+ Key through RS-232-C.

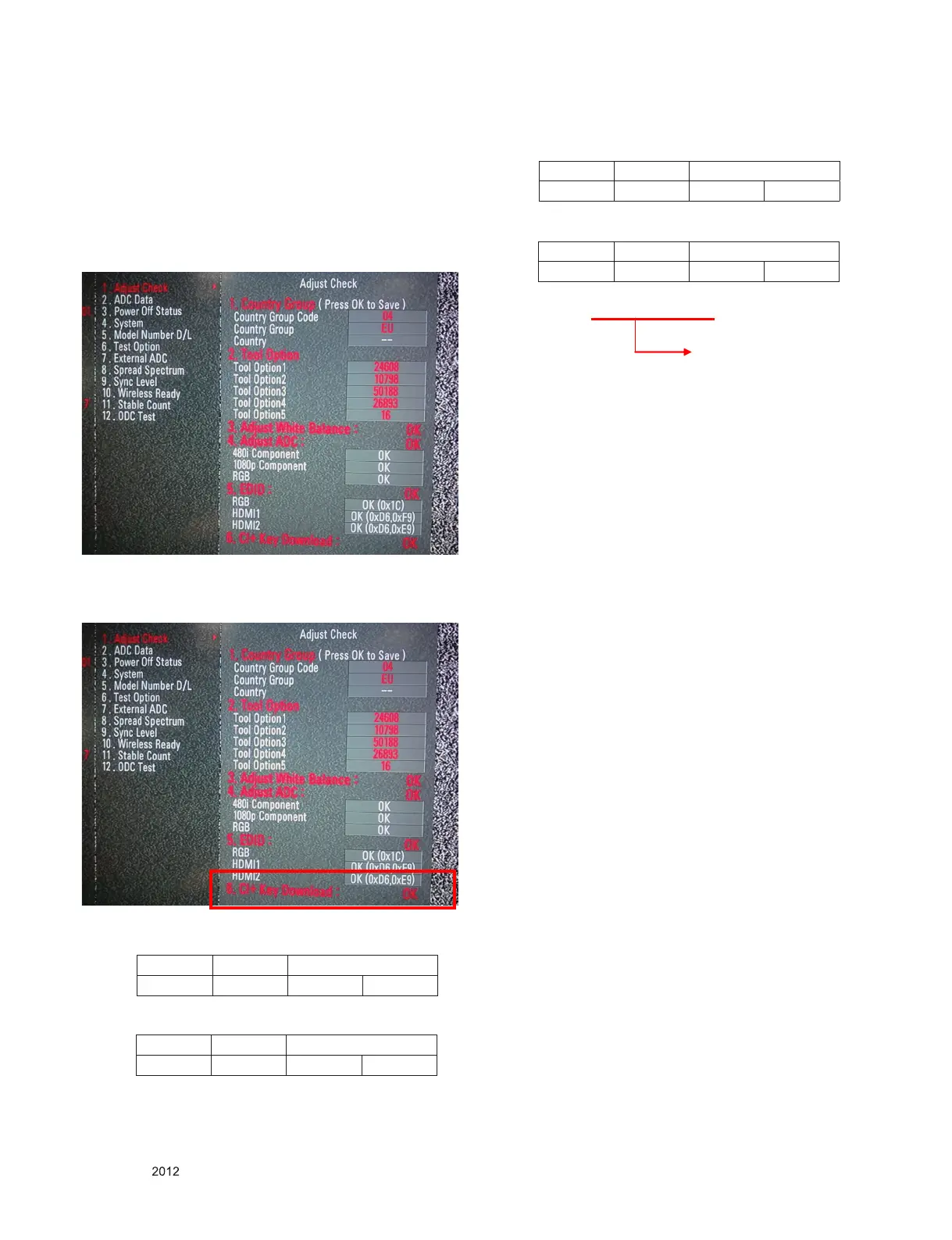

(4) Check whether the key was downloaded or not at ‘In Start’
menu. (Refer to below).
=> Check the Download to CI+ Key value in LGset.
1. Check the method of CI+ Key value
a. Check the method on Instart menu
b. Check the method of RS232C Command
1) Into the main ass’y mode (RS232 : aa 00 00)
2) Check the key download for transmitted command
(RS232 : ci 00 10)
3) Result value
- Normally status for download : OKx
- Abnormally status for download : NGx
2. Check the method of CI+ key value (RS232)
1) Into the main ass’y mode (RS232 : aa 00 00)
2) Check the mothed of CI+ key by command
(RS232 : ci 00 20)
3) result value
i 01 OK 1d1852d21c1ed5dcx
CMD 1 CMD 2 Data 0
A A 0 0
CMD 1 CMD 2 Data 0
C I 1 0
CMD 1 CMD 2 Data 0
A A 0 0
CMD 1 CMD 2 Data 0
C I 2 0
