* Edid data and Model option download(RS232)
5-5. Manual Download
(1) Write HDMI EDID data
1) Using instruments
- Jig. (PC Serial to D-Sub connection) for PC, DDC
adjustment.
- S/W for DDC recording (EDID data write and read)
- D-sub jack
- Additional HDMI cable connection Jig.
2) Preparing and setting.
- Set instruments and Jig. Like pic.5), then turn on PC
and Jig.
- Operate DDC write S/W (EDID write & read)
- It will operate in the DOS mode.
- EDID data (Model name = LG TV)
- 2010 EDID DATA CHECK SUM.
- 10 -
LGE Internal Use OnlyCopyright ©2010 LG Electronics Inc. All rights reserved.
Only for training and service purposes

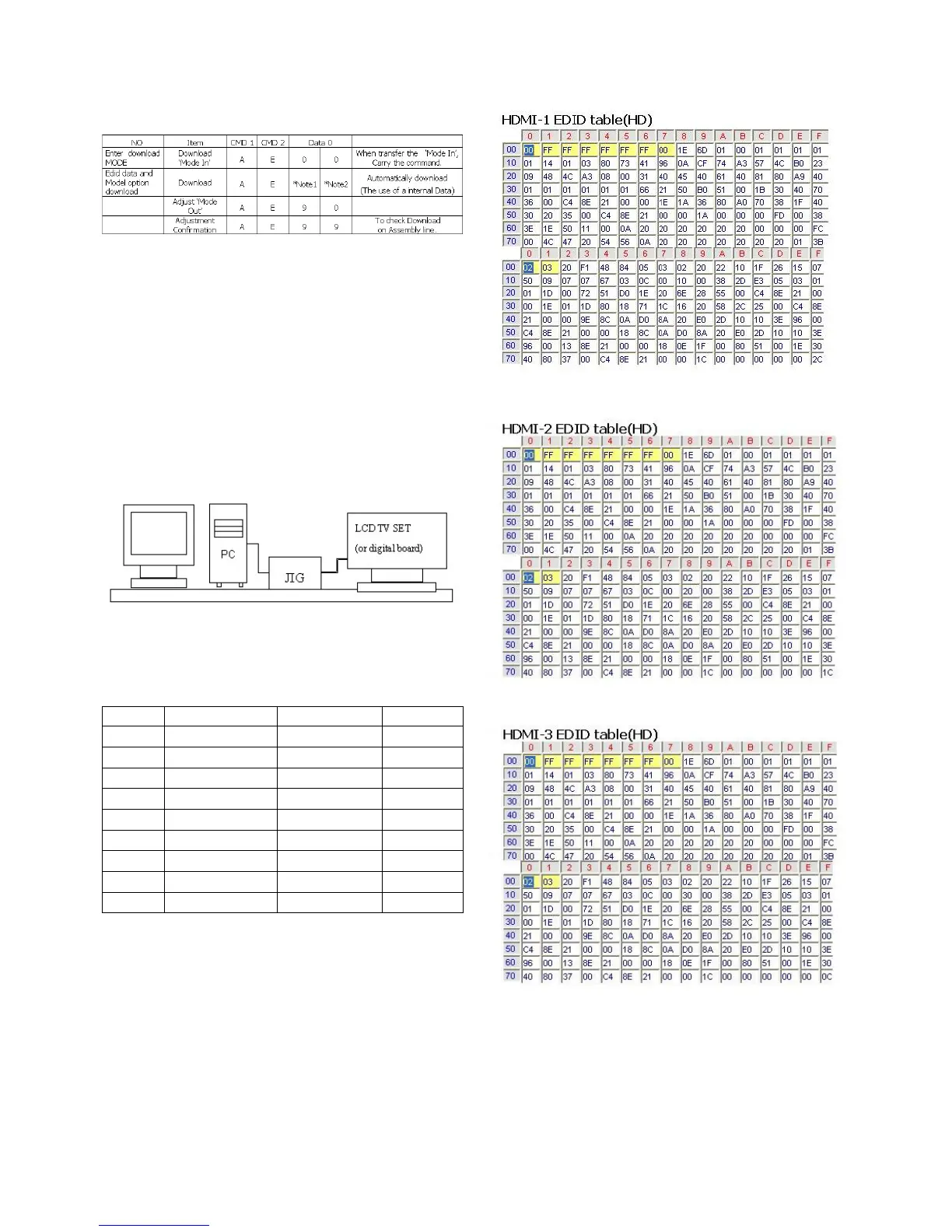

BLOCK(0) BLOCK(1)
HD HDMI1 3B 2C
HDMI2 3B 1C
HDMI3 3B 0C
RGB A3 25
FHD HDMI1 3B 2C
HDMI2 3B 1C
HDMI3 3B 0C
HDMI4 3B FC
RGB A3 25
< For write EDID data, setting Jig and another instruments >
