MAKING CONNECTIONS
Composite Connection

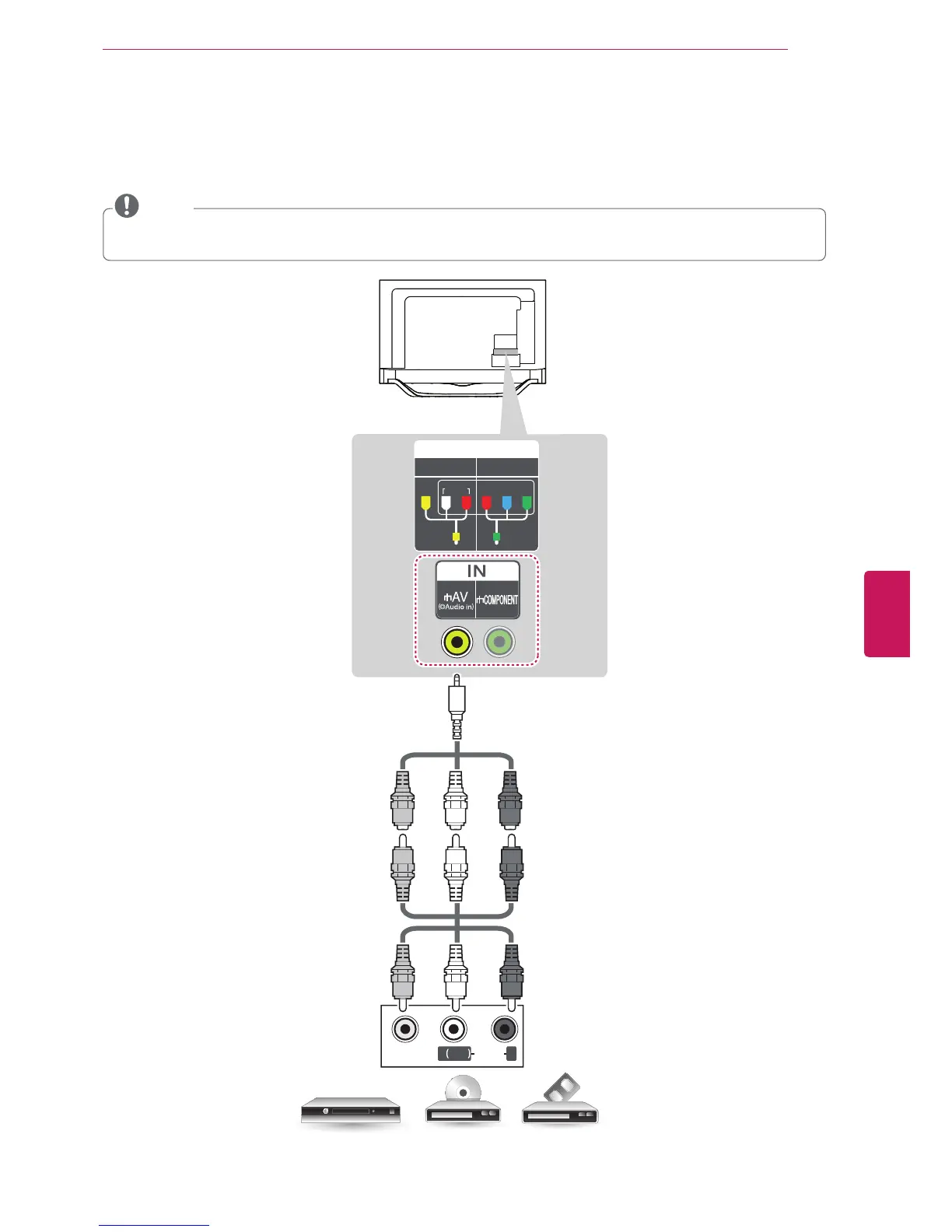

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with
the composite cable as shown in the following illustration.
IN
COMPONENT
AV
VIDEO AUDIO
Y
P
B
P
R
VIDEO
MONO
( )
AUDIOLR
VCR / DVD / Blu-Ray / HD Cable Box
RED
WHITE
YELLOW
WHITE
RED
WHITE
RED
YELLOW YELLOW
YELLOW
(Use the composite video cable provided.)
y
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the TV.
y
Check to ensure the cables are matched with the corresponding color connection.
