ASSEMBLING AND PREPARING
LK450 series
Touch button
2
Description
/
I
Turns the power on or off.
INPUT Changes the input source.
HOME Accesses the main menus, or saves your input and exits the menus.
ENTER
ٜ
Selects the highlighted menu option or confirms an input.
- VOL + Adjusts the volume level.
v
CH
^
Scrolls through the saved channels.
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment.
2 All of the buttons are touch sensitive and can be operated through simple touch with your finger.
ENTER
CH
VOL
HOME
INPUT
USB IN
VIDEO
AUDIO
R
L/MONO
IN 3
AV IN 2
1
2
COMPONENT IN
Y
PB
PR
R
L
VIDEO
AUDIO
R
AV IN 1
L/MONO
ANTENNA /
CABLE IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN (PC)
OPTICAL DIGITAL
AUDIO OUT
(RGB/DVI)
AUDIO IN
/ DVI IN
2
1
VIDEO
AUDIO

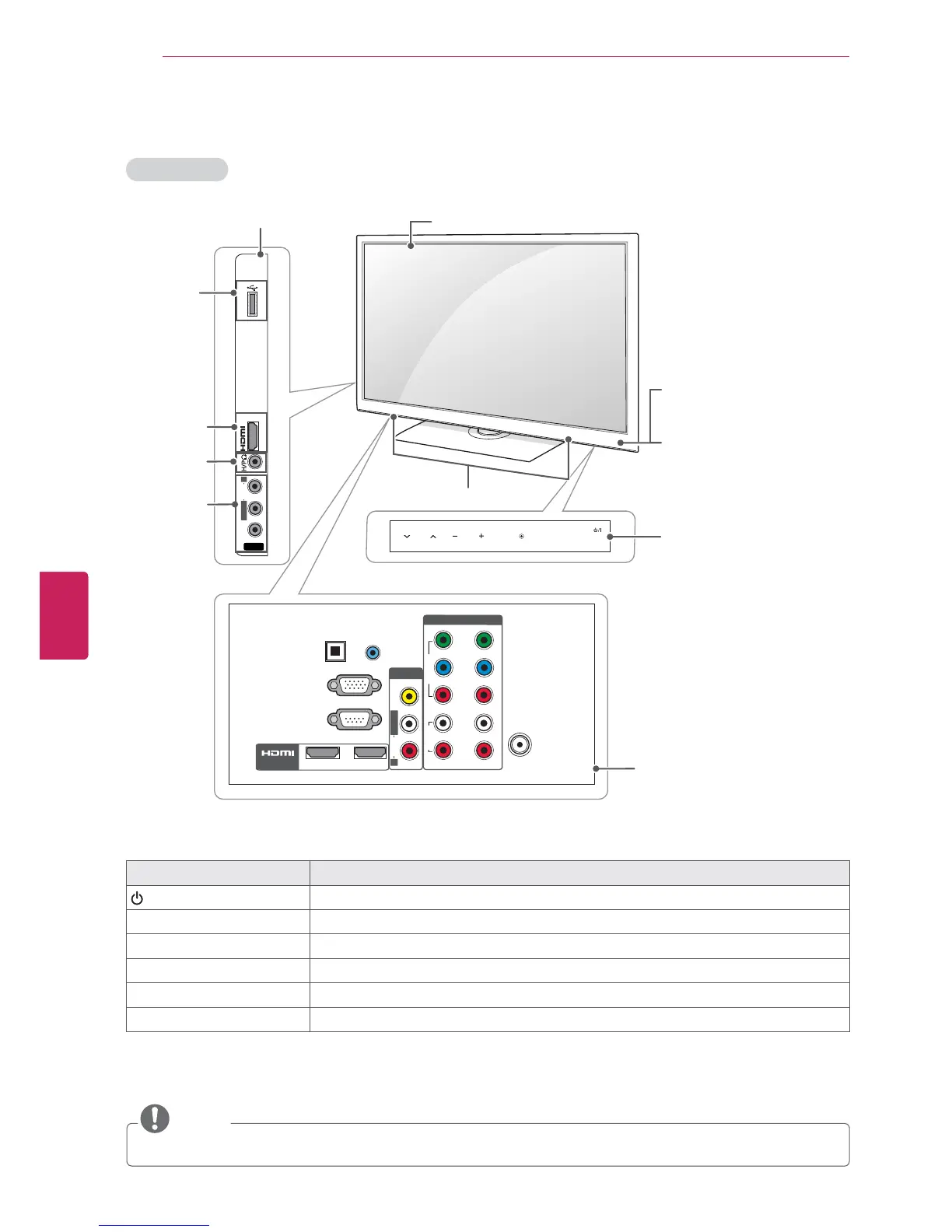

Screen
Touch buttons
2
Power indicator
Remote control and
intelligent
1
sensors
Rear Connection panel
(See p.73)
Speakers
USB input
HDMI input
Headphone
output
AV (Audio
and Video)
input
Side Connection panel
NOTE
y
You can set the power indicator light to on or off by selecting
OPTION
in the main menus.
