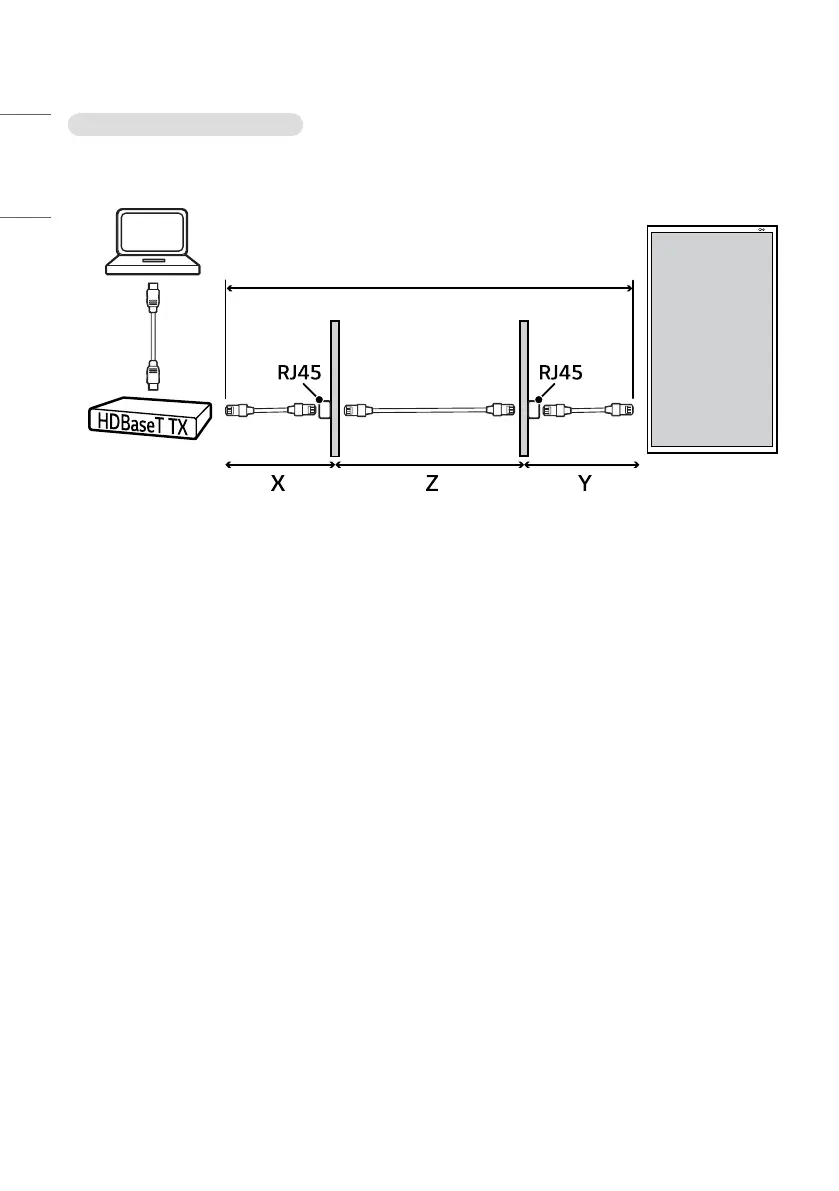

Using Patch Cables (Ex: CAT6 FTP)
The total run of an HDBaseT cable installation may include up to two patch cables. This is referred to as a three-
segment installation.
Wall mounted link segment
≤ 100 m
• Three-segment cable installation
- X = Cable length ≤ 5m (16.4ft)
- Y = Cable length ≤ 5m (16.4ft)
- Z = 100m (328ft) – X – Y
