Tools you will need
• Phillips head + driver (manual or motorized) / Ø
8 mm (0.3 inches) Drill bit / Level / Stud finder /
Drill

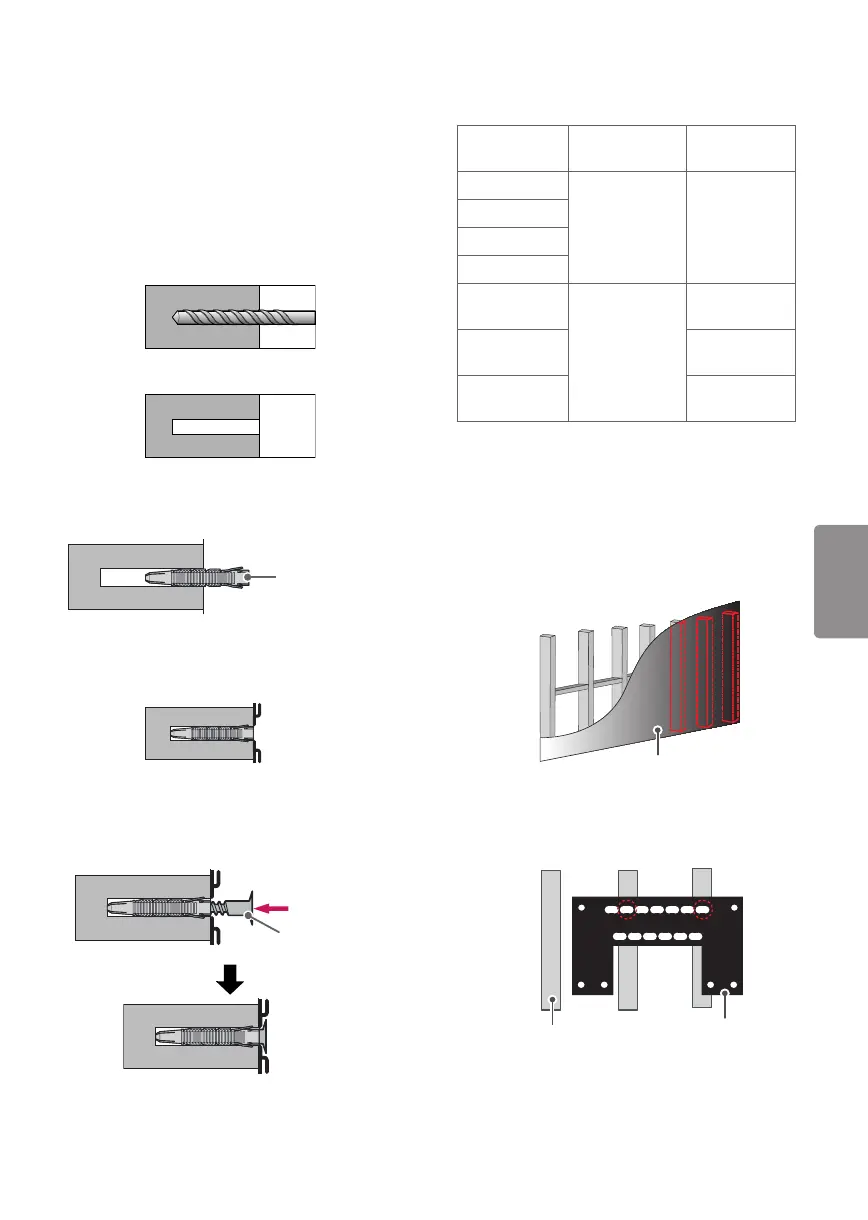

How to attach to masonry walls
Please follow the below direction.
1 Use a drill bit Ø 8 mm (0.3 inches) to drill a
hole for the anchor location within a depth of
80 mm (3.1 inches) to 100 mm (3.9 inches).
2 Clean the drilled hole.
3 Insert the sealed wall mounting anchor to
the hole. (When inserting the anchor, use a
hammer.)
Wall mounting
anchor
4 Set the wall mount on the wall by aligning to
the location of the hole. And, set the angle
adjusting part to face upward.
5 Align the wall mounting screw to the hole
and tighten it. Then, fasten the screws at
torque of 45 kgf/cm (39.06 lbf/in) to 60 kgf/
cm (52.08 lbf/in).
Wall mounting
screw
• Check the material of the wall and the thickness
of the finishing.
• Use the Wall mount anchor for wall material of
concrete, light concrete, strong natural stone,
soft natural stone masonry brick and hallow
block that do not crack.
Wall Material Tools Wall
Thickness
Concrete Wall mounting
anchor, Wall
mounting
screw, Drill bit
(Ø 3 / 6 / 8)
70 mm
(2.7 inches)
Brick
Natural stone
Metal Panel
Plywood Wall mounting
screw, Drill bit
(Ø 1.8)
30 mm
(1.1 inches)
EPS Panel Penetrate the
wall
Plasterboard
+ Plywood
30 mm
(1.1 inches)
• When installing on a gypsum board or medium-
density fiberboard (MDF) wall, fasten the screws
to the wooden pillars that support the wall. If
there are no wooden pillars, check the distance
from the inner wall before installing.
- 30 mm (1.1 inches) or below: Install directly on
the inner wall using a 65 mm (2.5 inches) screw.
- 30 mm (1.1 inches) or above: Install using a
separate hanger.
Wall
• When installing the wall mount, check the
positions of the wooden studs using a stud
finder. Then, fasten the screws on at least two
separate studs before proceeding.
Stud
Wall mount
• When installing the product on wall material
not designated, install the product so that each
location can withstand the pull out load of 70
kgf (686 N) and shear load of 100 kgf (980 N) or
above.
