RS-232C with RS-232C Cable
DE9 (D-Sub 9pin) Type
USB IN
RS-232C IN
(CONTROL & SERVICE)
(TV)
(PC)
(TV)
(PC)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
4
(TV)
(STB)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
4
1
3
2
4
(PC)
(TV)

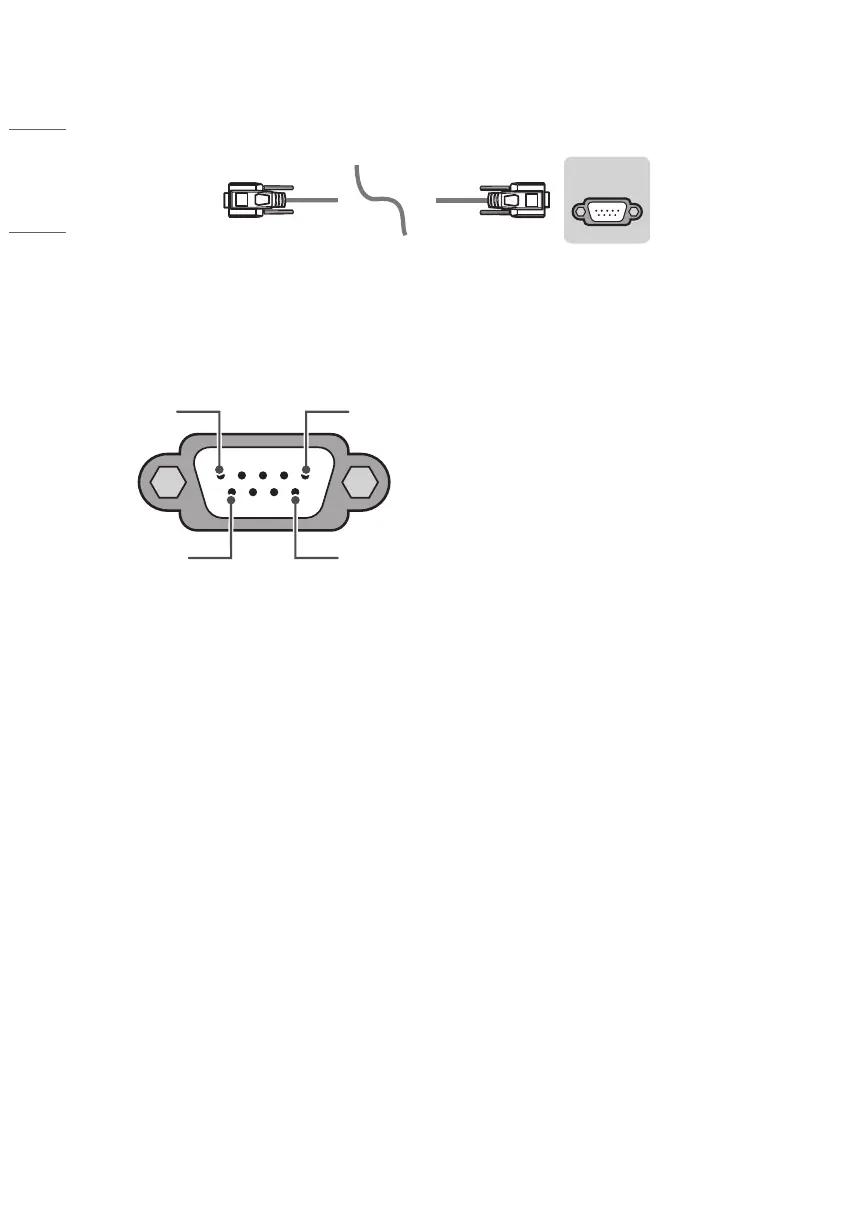

• You need to purchase the RS-232C (DE9, D-Sub 9 pin female-to-female type) to RS-232C cable required for the
connection between the PC and the TV, which is specified in the manual.
• The connection interface may differ from your TV.
Connector type: D-Sub 9-pin male
1
6
5
9
RS-232C (Serial port)
