LG A2UH146FA0 - Wiring Diagrams; Indoor Unit Wiring Diagrams

26 Free Joint Multi Air Conditioner
Wiring Diagram
Wiring Diagram
Indoor Unit

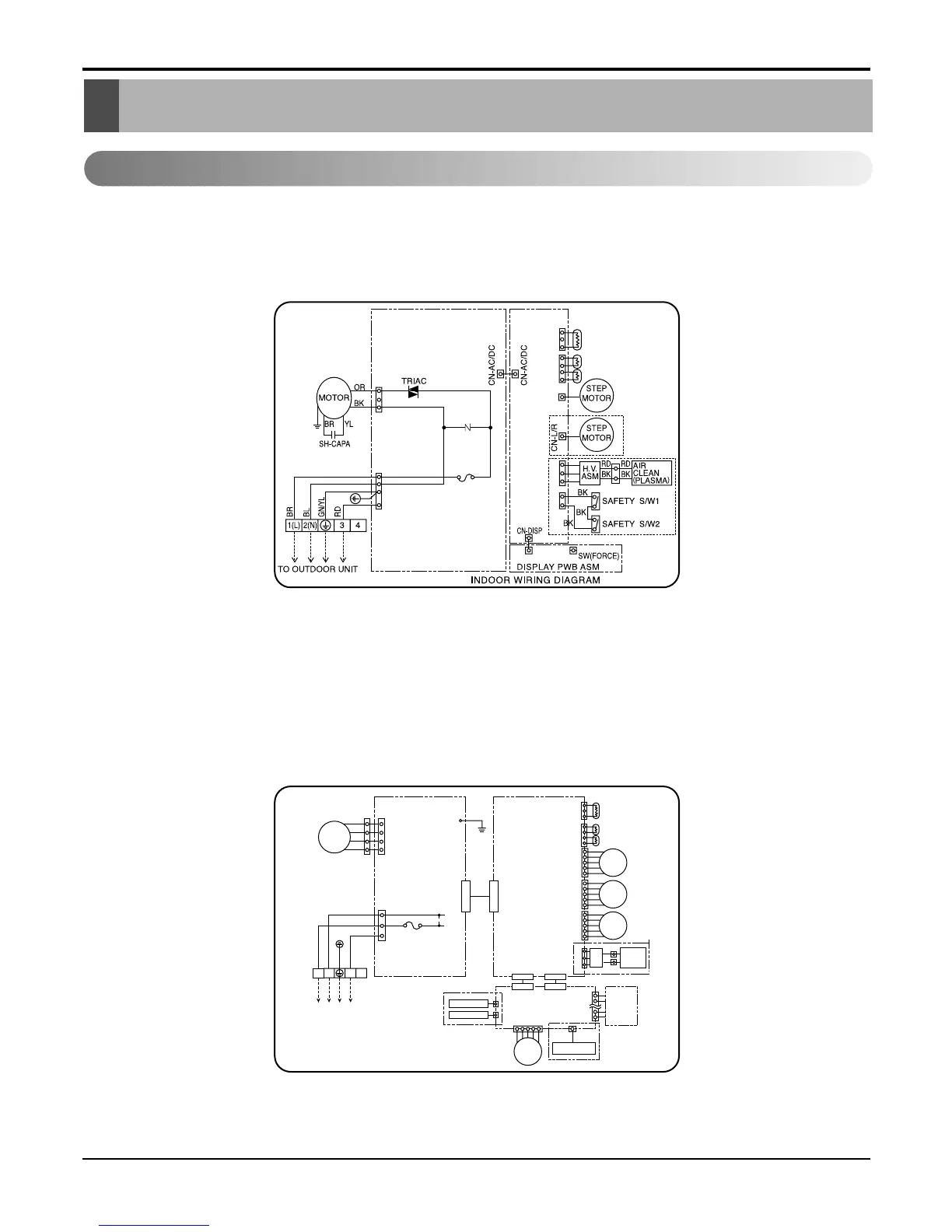

1. AMNH076LQL0, AMNH096LQL0, AMNH126LRL0, AMNH186LTL0,
AMNH246LTL0, AMNC076LQL0, AMNC096LQL0, AMNC126LRL0,
AMNC186LTL0, AMNC246LTL0, AMNH096LQA0, AMNH246LTA0
2. AMNH096APB1, AMNH096APM1, AMNH096APD1, AMNH126APB1,
AMNH126APM1, AMNH126APD1, AMNC096APB1,
AMNC096APM1, AMNC096APD1, AMNC126APB1,
AMNC126APM1, AMNC126APD1
3854A20135W
CN-TH1
THERMISTOR(OUT-PIPE)
THERMISTOR
(IN-PIPE)
THERMISTOR (ROOM)
CN-TH2
CN-U/D
CN-MOTORCN-POWER
AC PCB ASM DC PCB ASM
FUSE
250V 2A
ZNR
CONNECT
PCB ASM
DISPLAY
PCB
ASM
AC PWB ASM DC PWB ASM
CN-UD(BL)CN-LR1(WH)CN-LR2(WH)
PLASMA
AIR CLEAN
CN-D1(WH) CN-D2(WH)
BK
RD
STEP
MOTOR
STEP
MOTOR
STEP
MOTOR
STEP
MOTOR
FORCE S/W
SAFETY S/W
SAFETY S/W
3854A20135Y
CN-GND1
CN-ACDC1 CN-ACDC2
CN-HVB(BL)
H.V.
ASM
CN-MOTOR1
BK
WH
YL
RD
FAN
MOTOR
CN-POWER
FUSE
250V 3.15A
ZNR
TO OUTDOOR UNIT
BR
BL
GN/YL
RD
1(L) 2(N)
34
Z
CN-TH1
THERMISTOR(OUT-PIPE)
THERMISTOR(IN-PIPE)
THERMISTOR(ROOM)
CN-TH2
