Disassembly of the parts
4. Art Cool Deluxe Type Indoor Unit(SE)
CAUTION: Disconnect the unit from
power supply before making any
checks.
Be sure the power switch is set to
“OFF”.

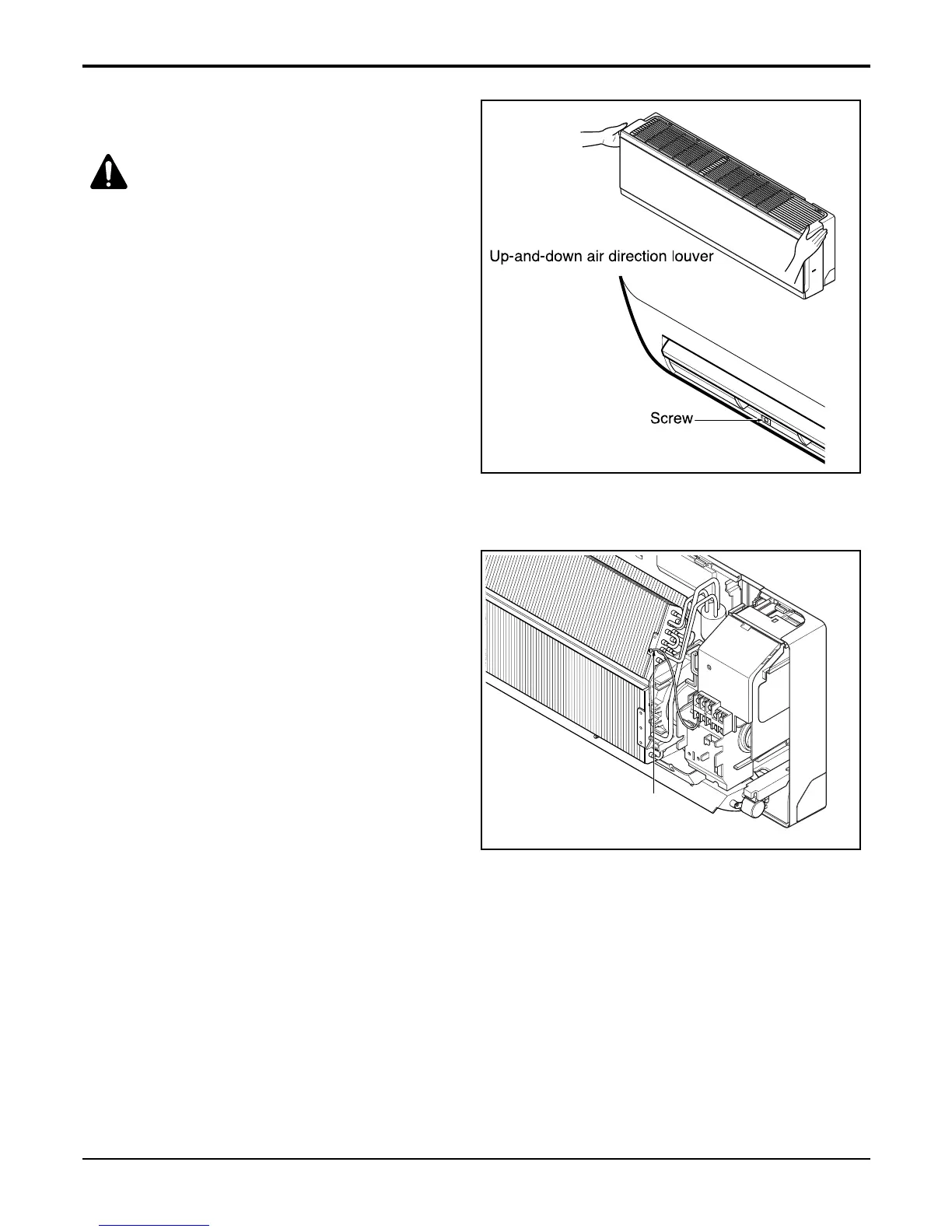

To remove the Grille from the Chassis.
• Hold up Inlet Grille Horizentally.
• To remove the Grille, pull the lower left and right
side of the grille toward you (slightly tilted) and lift it
straight upward.
• To seperate connecter assembly and than to
remove Inlet Grille assembly.
1) Before removing the control box, be sure to
take out the wire screwed at the other end.
