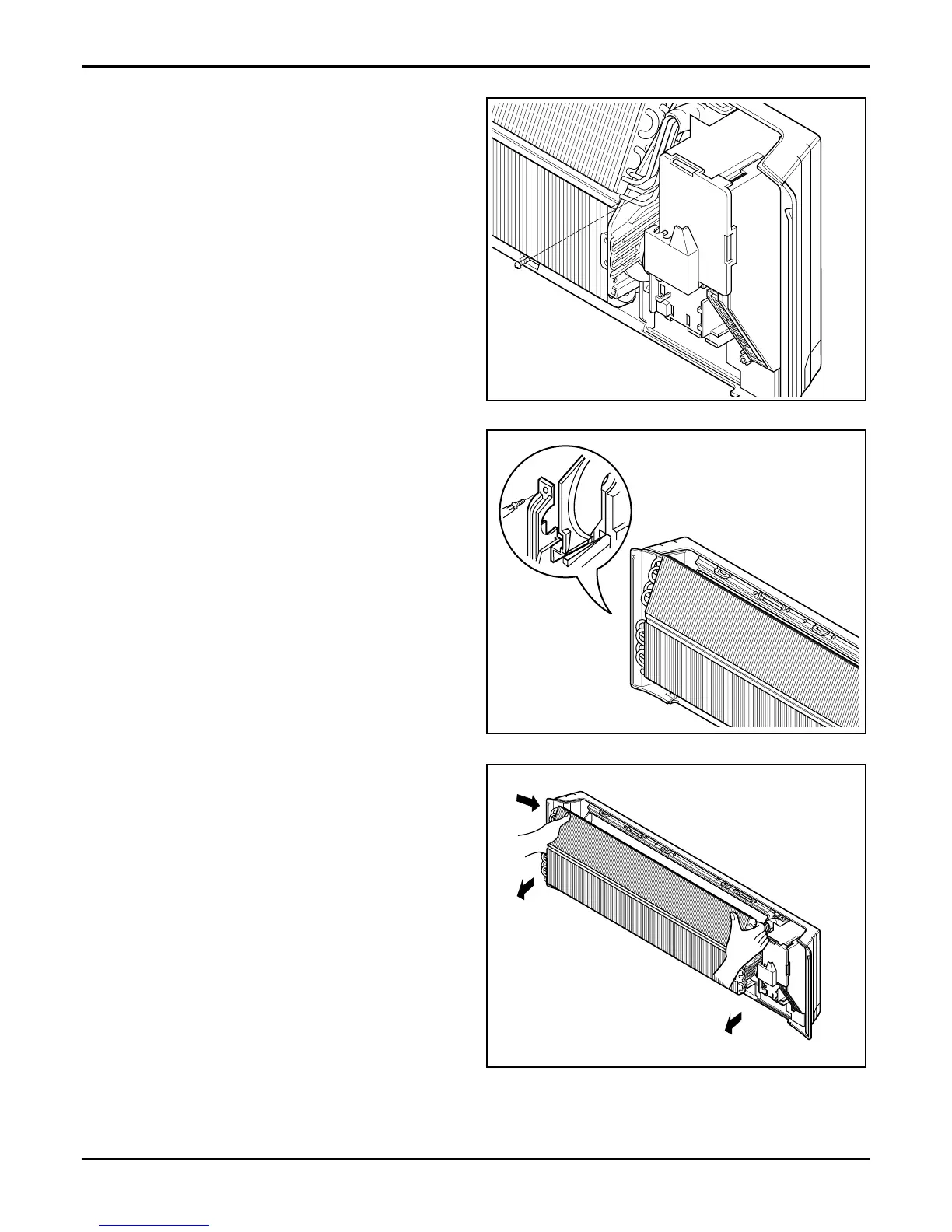

Disassembly of the parts

2) To remove the Control Box.

• Remove securing screws.

• Pull the control box out from the chassis careful-

ly.

3) To remove the Discharge Grille.

• Unhook the discharge grille and pull the dis-

charge grille out from the chassis carefully.

4) To remove the Evaporator.

• Remove 3 screws securing the evaporator(at the

left 2EA in the Eva Holder, at the right 1EA).
