- 15 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

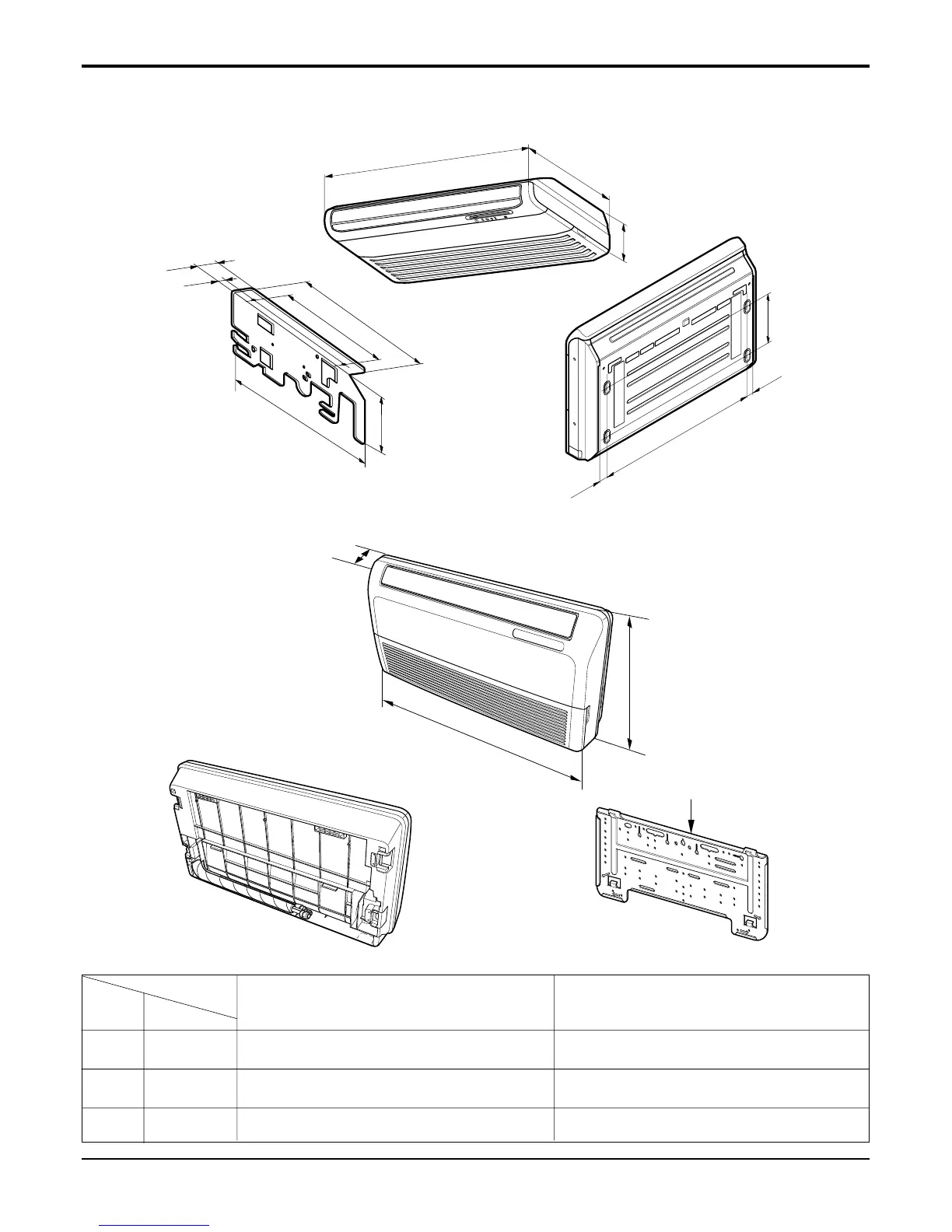

Dimensions
5. CVT Type
VE(8K/12K)
VB(18K/24K)
R
Installation plate
D
W
H
250mm
36mm
36mm
1076mm
(Rear Side)
63mm
38mm
175mm
(Installation Plate)
392mm
265mm
468mm
D
W
H
MODEL
DIM Unit
W mm 900 1200
H mm 285 615
D mm 156 205
VE
9K/12K
VB
18K/24K
