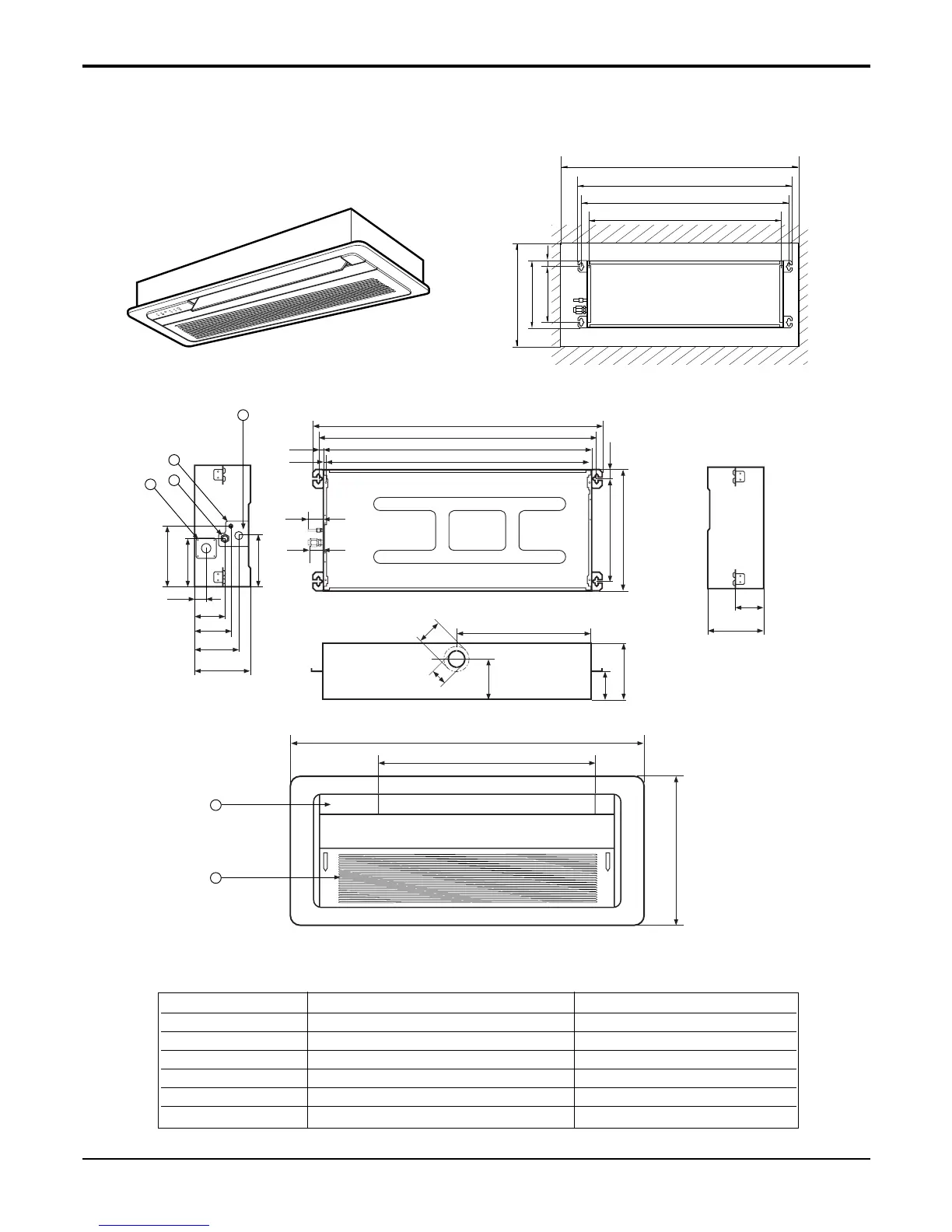

Dimensions
694.5
1050
480
846
860
328.430.8
390
893.4
931.6
16.7
50
42.7
7
155
97.7
37
116.3
141.8
180
164
194.4
91.6
180
430
130
Ø80
Ø55
180
91.6
1,000 (Ceiling opening)
931.6
893.4 (Hanging bolt)
328.4 (Hanging bolt)
860
390
30.8
430 (Ceiling opening)
4
5
6
3
2
1
6. CST Type - TC,TC1 (9K/12K)
(unit : mm)
Number Name Descripition
1 Liquid pipe connection ø6.35 flare
2 Gas pipe connection ø9.52 flare
3 Drain pipe connection
4 Power supply connection
5 Air discharge grill
6 Air suction grill
