Control Devices and Function

System Configuration

Main Specifications

1. Control System

- Centralized control of maximum 256 indoor units

- Simple Touch PAD method

- GUI setting considering convenience of use

- Power failure compensation with independent Battery Built-in (Max. 2 hours)

2. CNU

- Combination of maximum 8 outdoor units

- 485 to Ethernet Converter Built-in

3. PI485

- 1 pcs per outdoor units

Note: - GUI(Graphic User Interface) may be changed without any notice, for improvement or options.

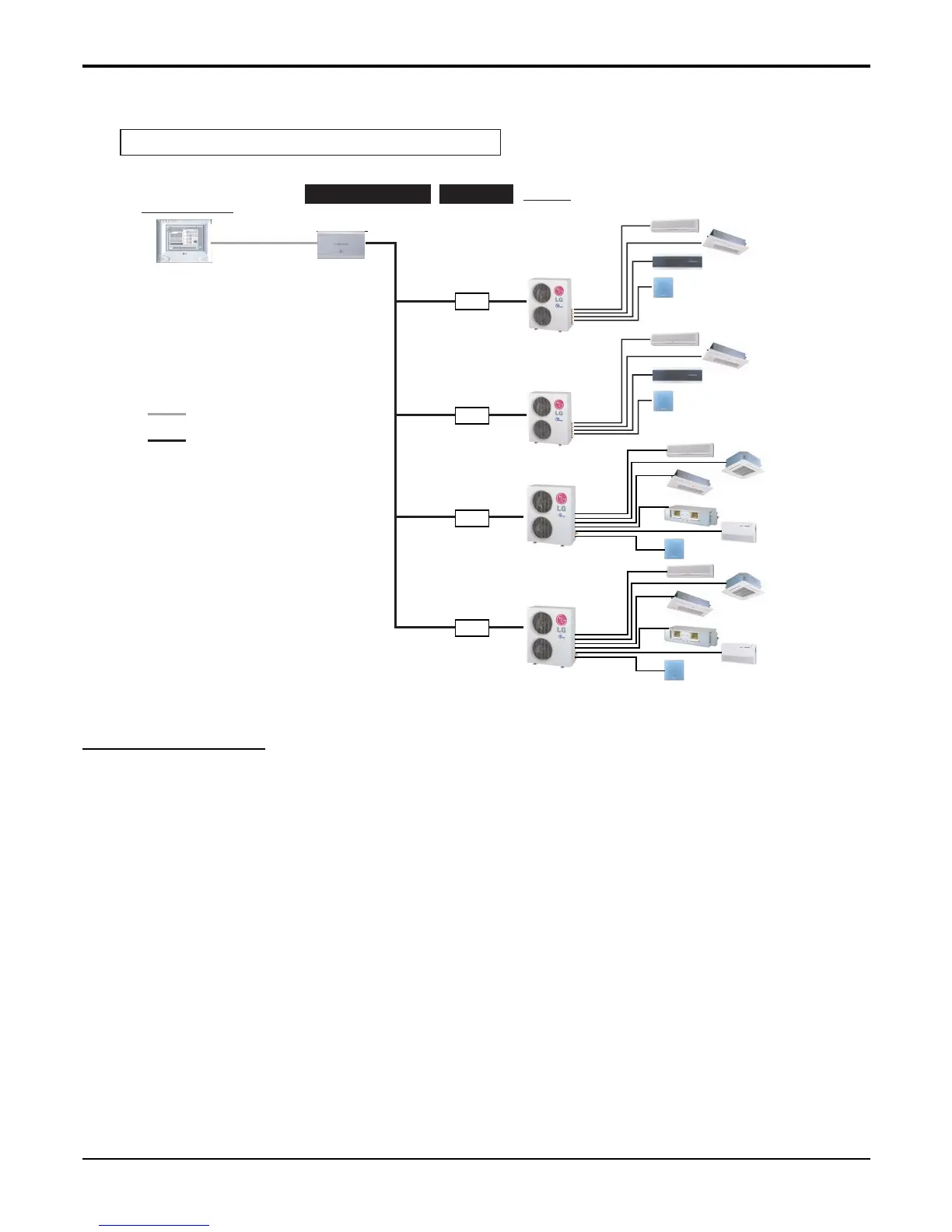

Scenario 1 : In case of not using Internet access function

Control System

Interface

Product

CNU

Delux Central

Control

* CNU: Central control Network interface Unit

PI485: Product Interface unit for IEEE485 transmission.

B part

A part

Cross UTP Cable

(Cross LAN Cable)

RS-485 Cable

PI485
