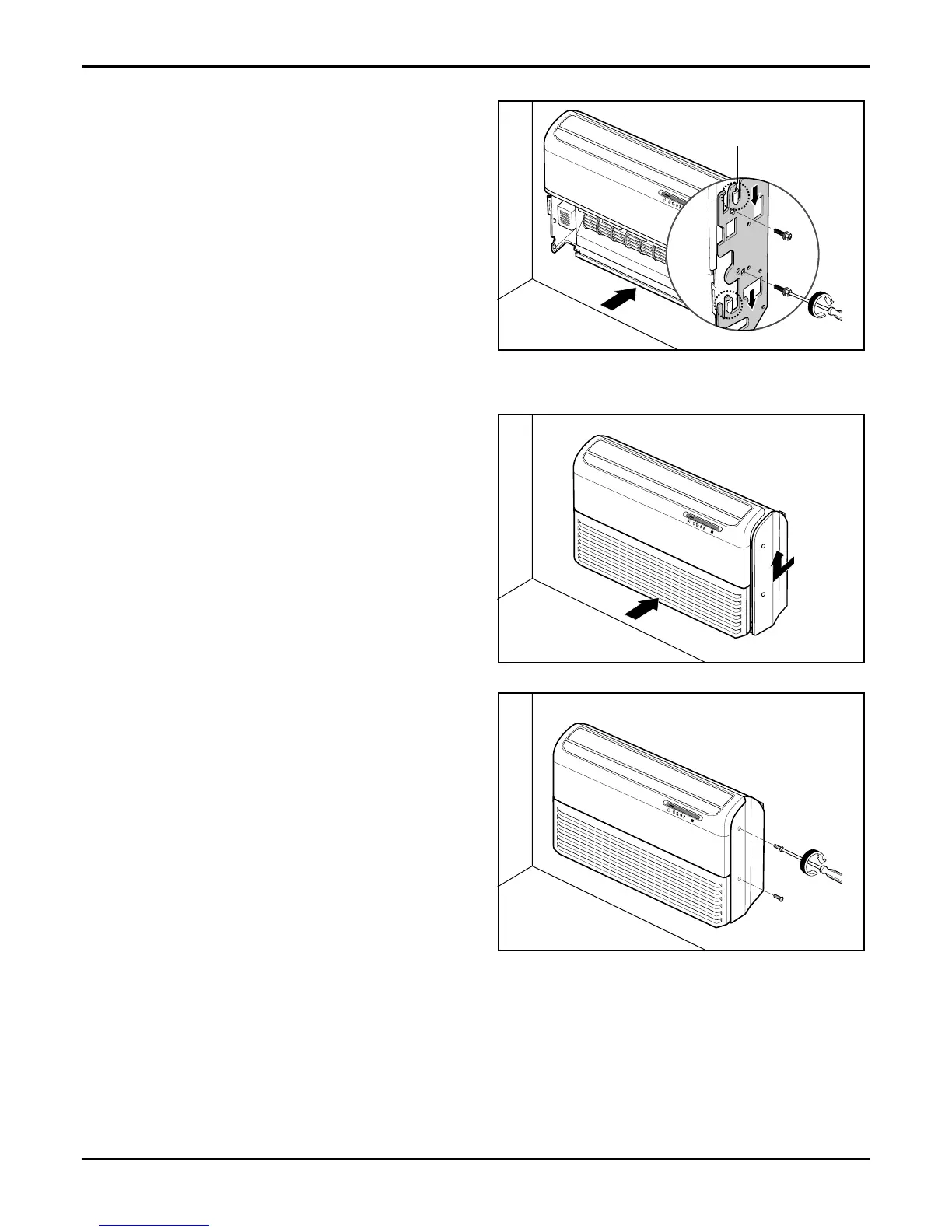

Install the Indoor unit onto Installation Plate.
• Insert 2 hooks on the both left and right side of the unit
to the inner slot (wall side) of the Installation Plate.
• Secure the unit to the Installation Plate with four M8
bolts and washers.
• Hook up the Inlet Grille Hook to the cabinet.
• Hang the Inlet Hanger to the screw.
• Fit the projection hooks of the side plates to the 'Side
Panel' and the 'Front Panel' by lifting it.
• Fasten the screws.
R
2
1
•
Before working, refer to "Connecting pipe
and cable to Indoor Unit".
Inner slot
To Next Page
