LG AMNQ09GSJA0 - Installation Places

8
INSTALLATION MANUAL
ENGLISH

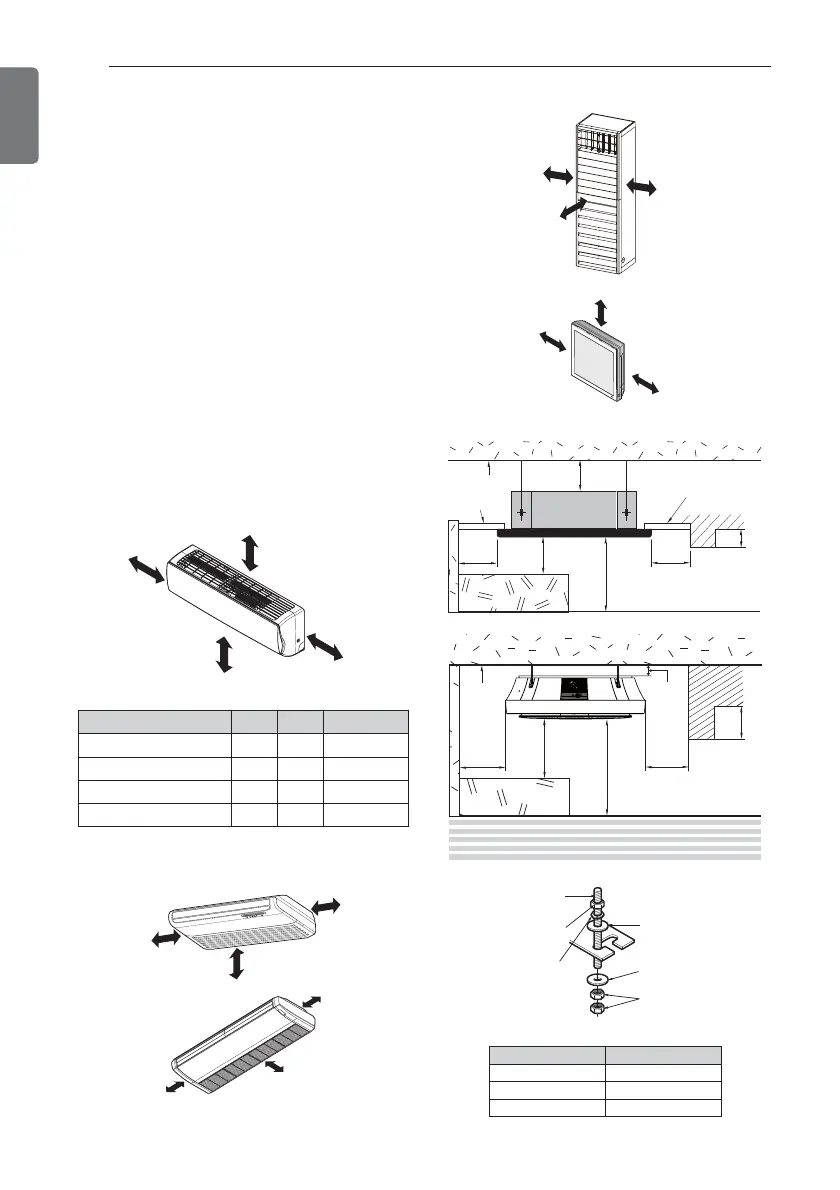

INSTALLATION PLACES
- There should not be any heat source or steam near
the unit.
- There should not be any obstacles to prevent the
air circulation.
- A place where air circulation in the room will be
good.
- A place where drainage can be easily obtained.
- A place where noise prevention is taken into
consideration.
- Do not install the unit near the door way.
- Ensure the spaces indicated by arrows from the
wall, ceiling, or other obstacles.
- The indoor unit must keep the maintenance space.
- The basic installation for the round type should be
in an exposed area. Do not install at a non exposed
installation site such as areas with ceiling texture.
More than A
More than B
More than
C
More than
B
(Unit : mm)
Unit : mm
Ceiling
Ceiling Board
Ceiling Board
H
1 000
or more
500 or
more
300 or less
At least 1 800
H or less
10 or
more
500 or
more
Type A B C
Wall mounted 200 100 2 300
ART COOL 200 500 1 500
ART COOL Mirror 200 100 2 300
Console 300 300 250 or less
More than
300
More than
300
More than
300
More than
200
More than 50
More than
200
R
More than 700
More than 700
More than 300
More than 200
More than 100
More than 100
(Unit : mm)
Unit : mm
Ceiling
Above 2 500
4 000 or less
1 000
or more
500 or
more
10 or more
500 or
more
300 or less
FloorFloorFloor
Chassis
H
TU/TT 3 300
TQ/TR/TP 3 600
TN/TM 4 200
Flat washer for M10
(accessory)
Flat washer for M10
(accessory)
Hanging bolt
(W3/8 or M10)
Nut
(W3/8 or M10)
Nut
(W3/8 or M10)
Spring washer
(M10)
