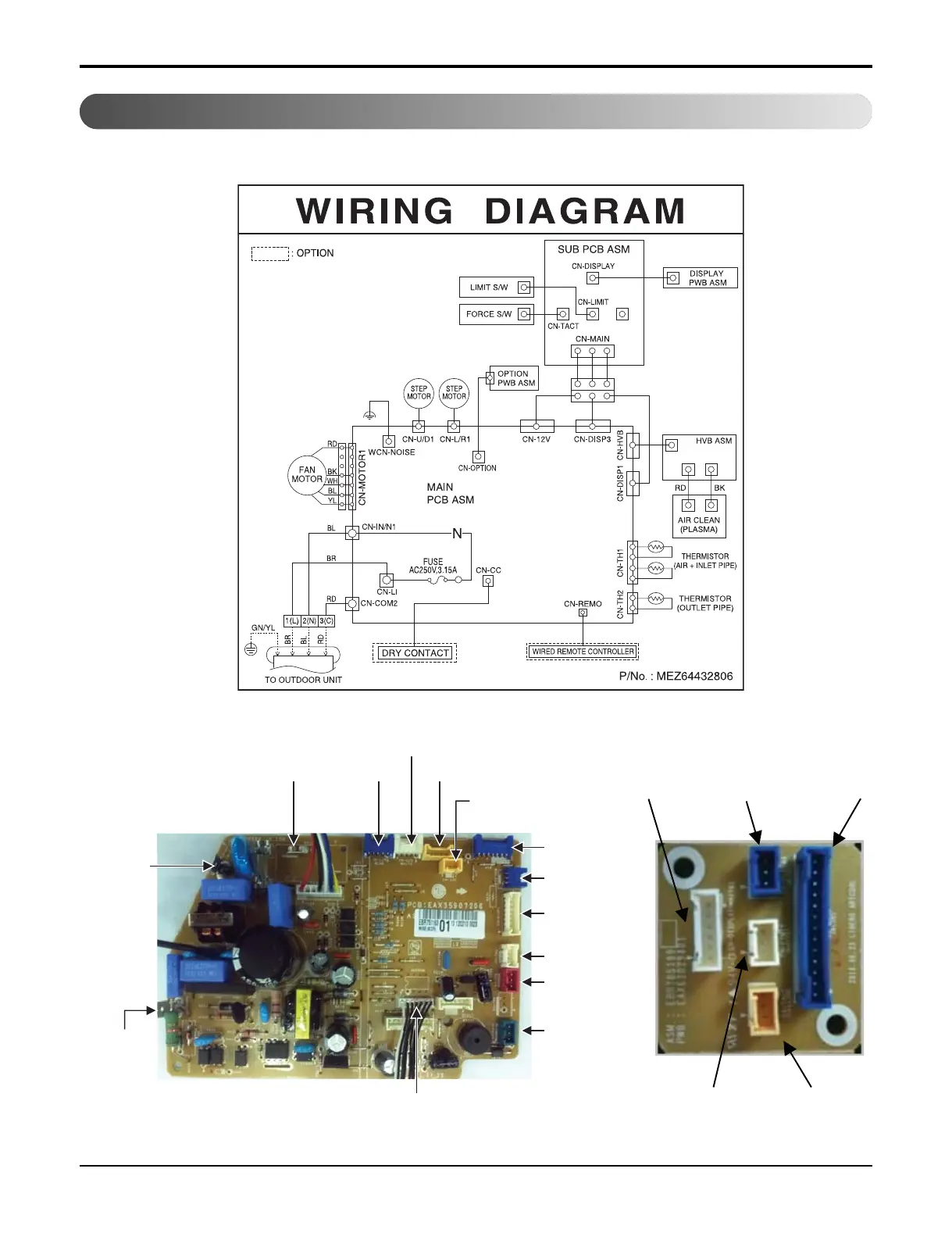

3. Wiring Diagrams
Indoor Unit
CN-MAINCN-TACT
CN-LIMIT CN-PLASMA
CN-DISPLAY
CN-HVB
CN-DISP1
CN-TH1
CN-TH2
CN-REMO
CN-OPTION
CN-COM
RY-COMP
CN-SUB
CN-L/R
CN-U/D
CN-12V
CN-DISP3
CN-IN/N1
Sub PCBMain PCB
