MULTI/SINGLE Indoor unit
Wall Mounted Unit

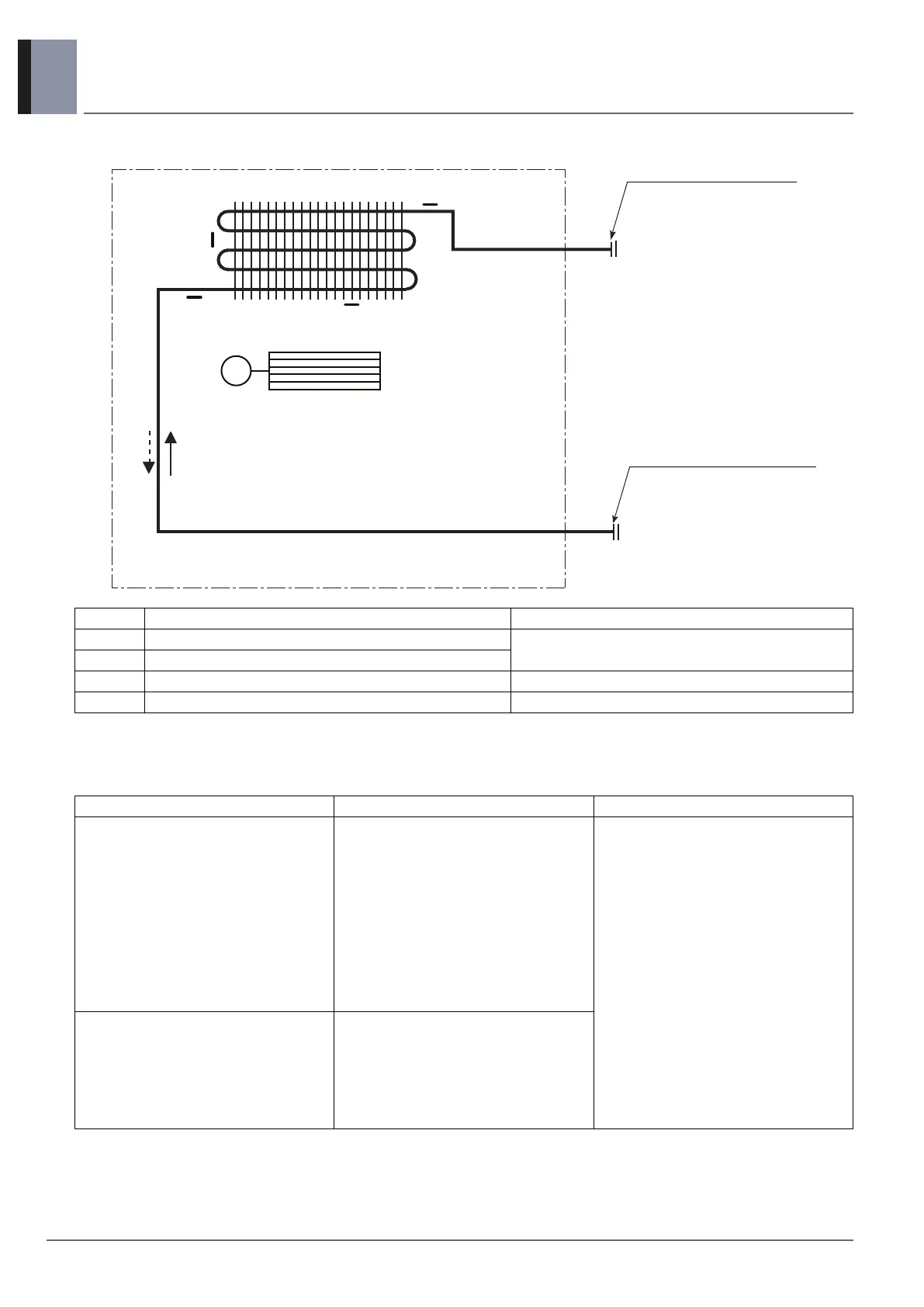

4. Piping diagrams
 Models : Deluxe, Standard Plus, Standard
• * : AMNW07GSJL0 [DM07RP NSJ] Model not available.
 Refrigerant pipe connection port diameters
[Unit : mm (inch)]
LOC. Description PCB Connector
Th1 Thermistor for suction air temperature
CN-TH1
Th2 Thermistor for evaporator inlet temperature
Th3* Thermistor for evaporator middle temperature CN-TH3
Th4 Thermistor for evaporator outlet temperature CN-TH2
Model Gas Liquid
AMNW07GSJL0 [DM07RP NSJ]
ASNW09GJ1Z0 [DM09RP NSJ]
ASNW12GJ1Z0 [DM12RP NSJ]
AMNW05GSJB0 [PM05SP NSJ]
AMNW07GSJB0 [PM07SP NSJ]
USNW09GJ2F0 [PM09SP NSJ]
USNW12GJ2F0 [PM12SP NSJ]
AMNW15GSJB0 [PM15SP NSJ]
AMNW07GSJA0 [PM07EP NSJ]
USNW09GJ3A0 [PM09EP NSJ]
USNW12GJ3A0 [PM12EP NSJ]
Ø9.52 (3/8)
Ø6.35 (1/4)
ASNW18GK1Z0 [DM18RP NSK]
ASNW24GK1Z0 [DM24RP NSK]
USNW18GK2F0 [PM18SP NSK]
USNW24GK2F0 [PM24SP NSK]
USNW18GK3A0 [PM18EP NSK]
AMNW24GSKA0 [PM24EP NSK]
Ø12.7 (1/2)
Heat exchanger
Gas pipe connection port
(flare connection)
Liquid pipe connection port
(flare connection)
Cooling
Heating
M
Cross Flow Fan
Th4
Th3
Th2
Th1
