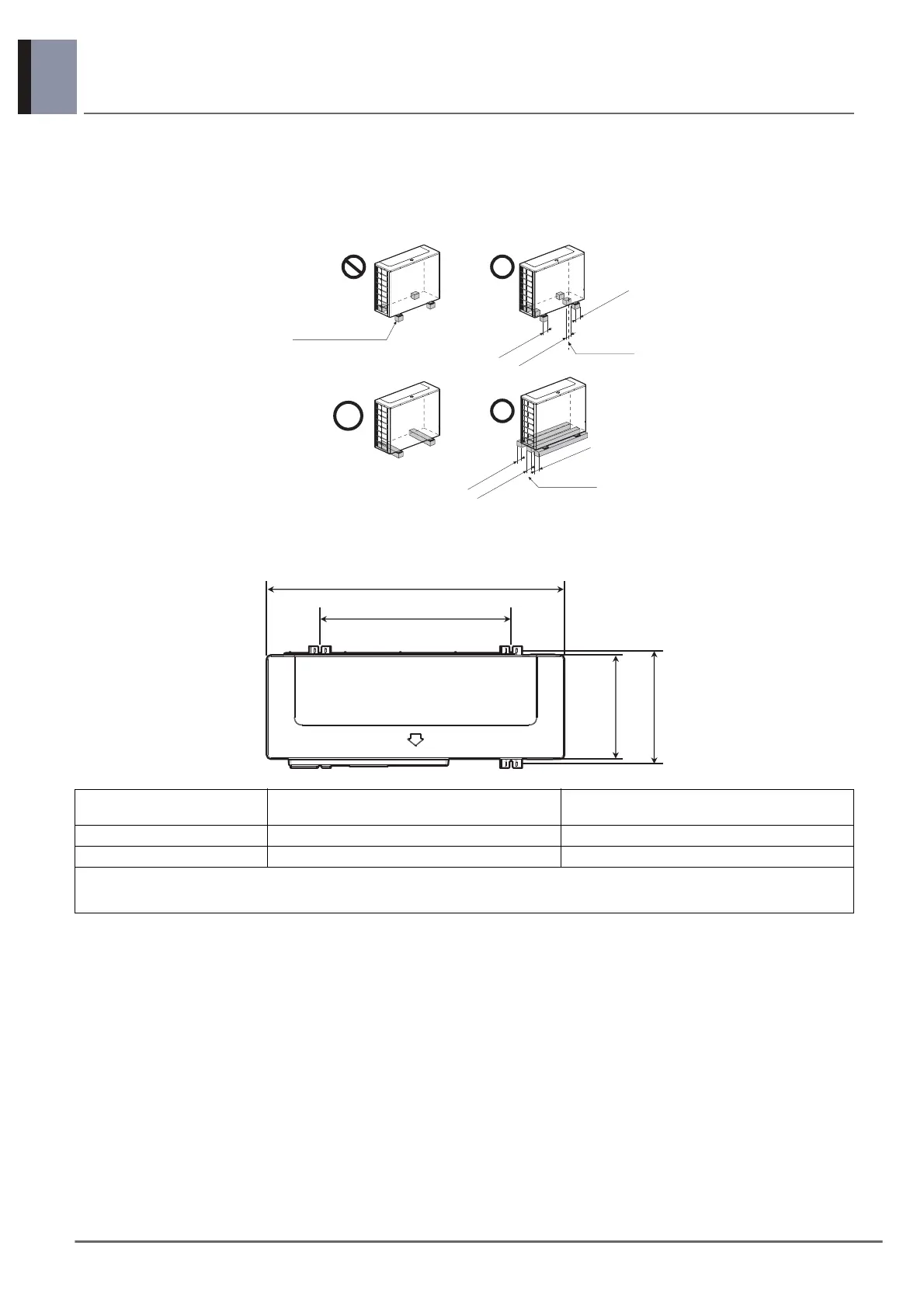

Installation of Outdoor Units

5. Installation

• Install at places where it can endure the weight and vibration/noise of the outdoor unit.

• The outdoor unit supports at the bottom shall have width of at least 100mm under the Unit’s legs before being

fixed.

• The outdoor unit supports should have minimum height of 200mm.

• Anchor bolts must be inserted at least 75mm.

5.1 The location of the Anchor bolts

Chassis

A x B

[Unit : mm]

C x D

[Unit : mm]

U4 / U3 620 x 360 950 x 330

U7 700 X 401 1,090 x 380

Note

• Depending on the sales region or product type, external appearance and applicability of each “Chassis” might be varied.
