3. Installation Space
9
Multi V S Outdoor Unit
Installation of Outdoor Units
3.2 Collective / continuous installation

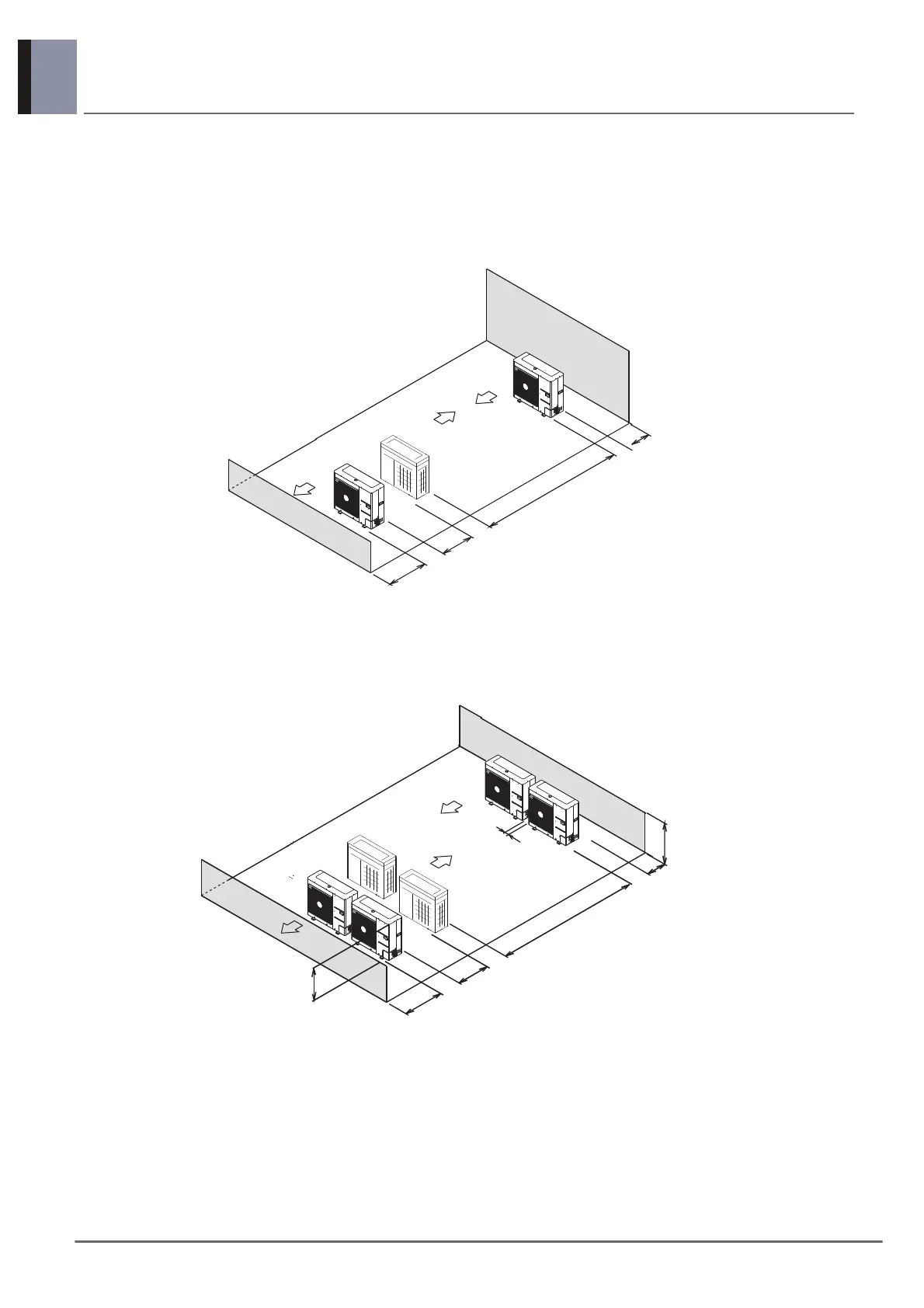

Space required for collective installation and continuous installation: When installing several units, leave space
between each block as shown below considering passage for air and people.
■ One row of stand alone installation
■ Rows of collective installation (2 or more)
• L should be smaller than H
100 or
more
2,000 or
more
200 or
more
1,000 or
more
[Unit:mm]
˺G\WW
L
300 or
more
3,000 or
more
H
600 or
more
1,500 or
more
100 or
more
L ≤ H
[Unit:mm]
˺G
\WW
˺G\WW
