- 33 -

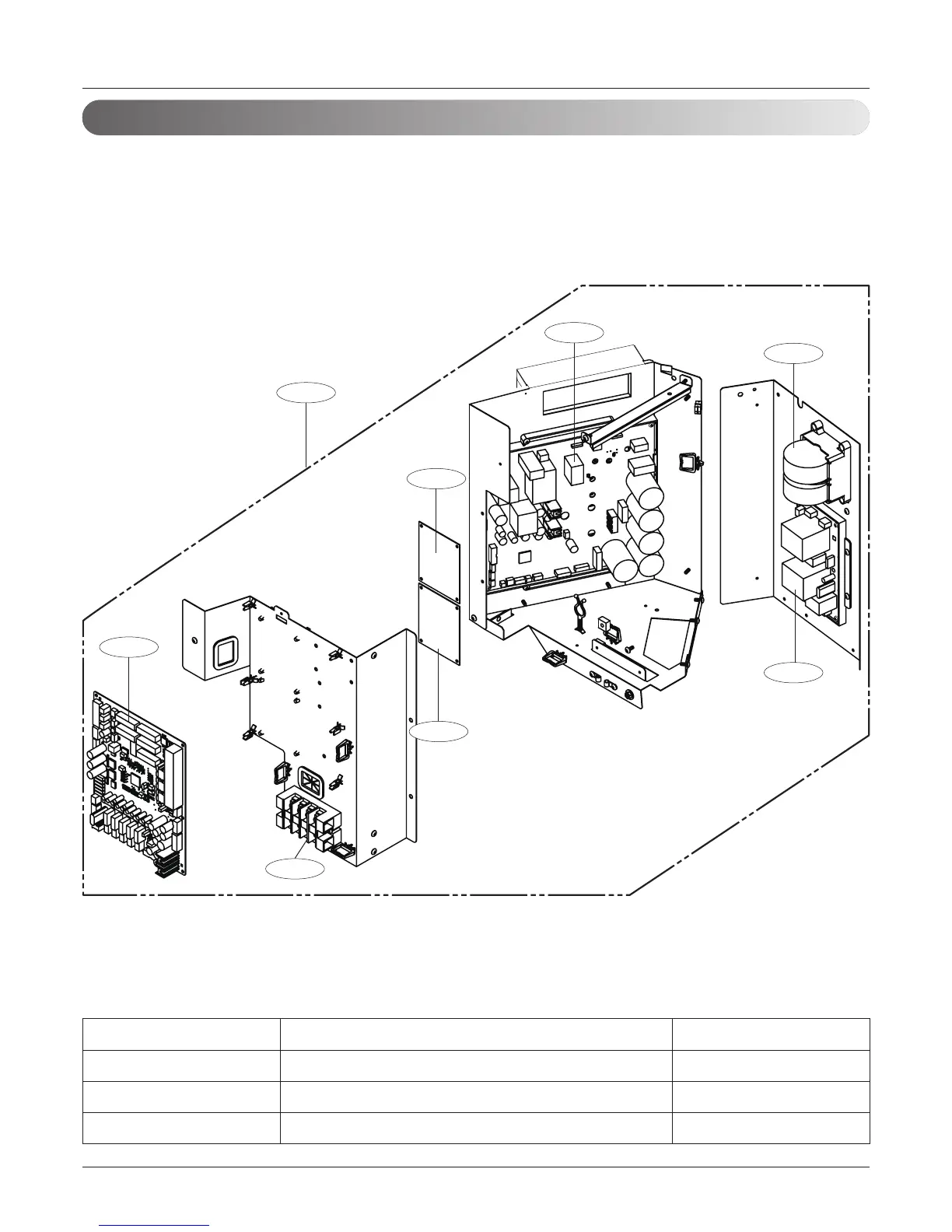

Exploded View
649950
261704
W6640
268711C
W6200
268711B
268711
D
268711
A
Control Box
n U3 chassis 1Ø, ARUN050GSS0/ARUN060GSS0
SVC Location Applied Housing color
263230A Subcool out pipe + liquid pipe yellow
263230B Suction pipe + hex + discharge pipe purple
263230C Air temperature sensor green
