LG AS-H0964DM0 - Outdoor Unit Dimensions (18-24 k Btu, UM Chassis)

2005 Product Data 45

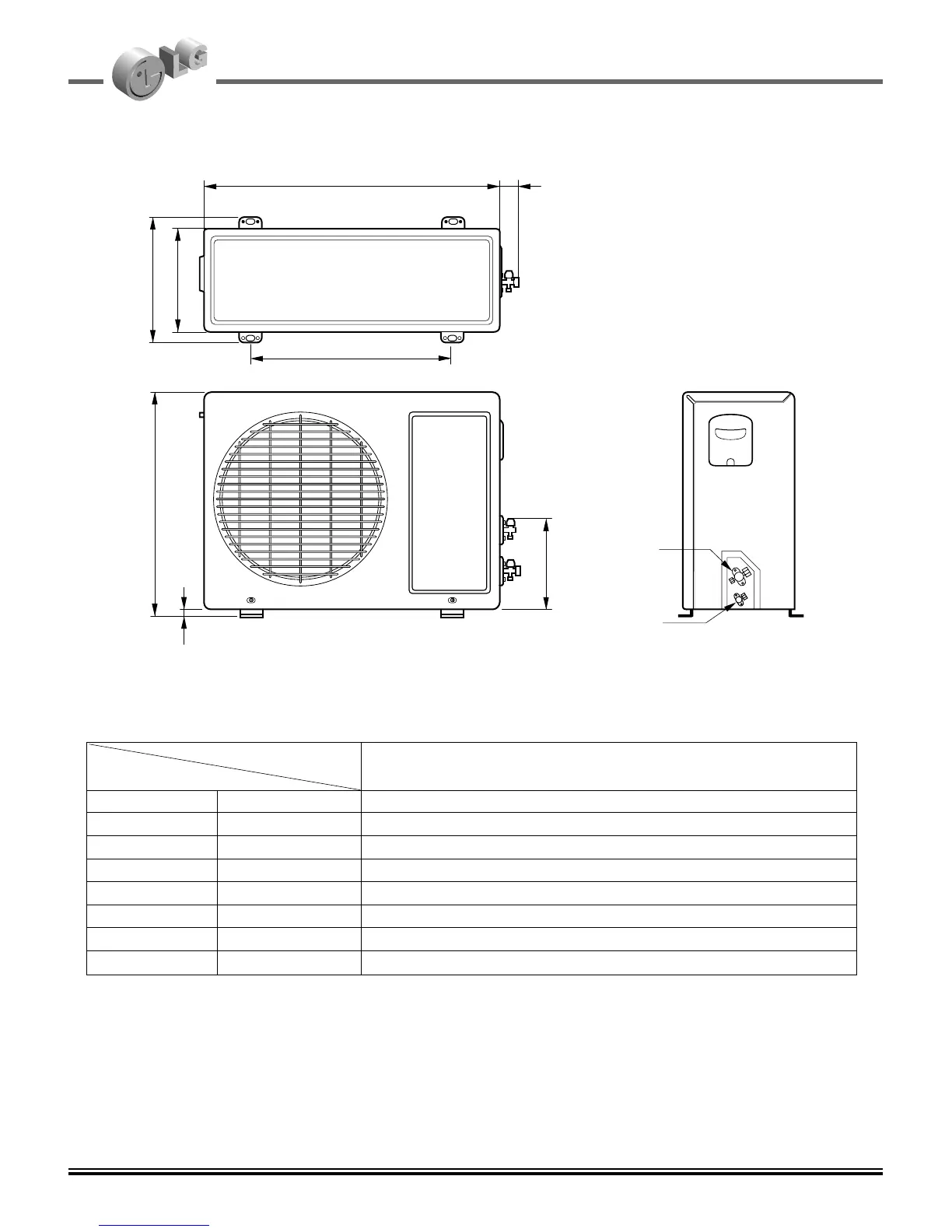

5. Dimensional Drawings Outdoor Units
W
L2
L3
L1
D
H
L4
L5
Gas side
(3-way valve)
Liquid side
(2-way valve)
Chassis
DIM
W mm 840
H mm 577
D mm 276
L1 mm 337
L2 mm 64
L3 mm 611
L4 mm 16
L5 mm 156
UM
• 18~24k Btu
